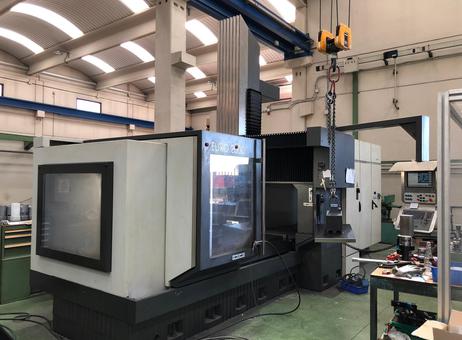

Correa Euro 2000 – 2007 Model

Contact us for price

Description

X axis 2000 mm
Y axis 1250 mm
Z axis 650 mm
CNC Yes
Table length 2000 mm
Table width 1000 mm
Max load on table 5000 kg
Type of CNC Heidenhain 530 i TNC
Spindle taper HSK-63
Max. spindle speed 18000 rpm
Spindle motor power 20 kW
Length x width x height 7000.0 × 3728.0 × 4324.0
Weight 18000 kg

Correa Euro 2000 – 2007 Model
Control Heidenhain 530 i TNC
Travels x, y, z mm 2000x1250x650
Taper hsk-63
Rpm headstock rpm 18.000 **12.000**
Main motor power kw 20
Table dimensions mm 2.000 x 1.000 mm
Max. Admitted weigth kg 5.000
Tool changer 24 posiciones
Cooling by tool
