Description
CORREA FP-60 – Year 1990

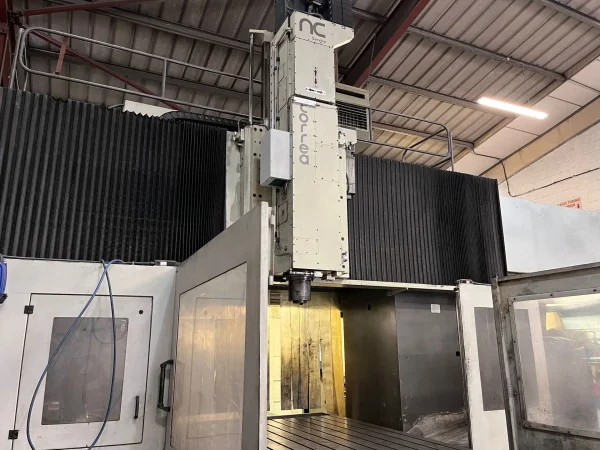

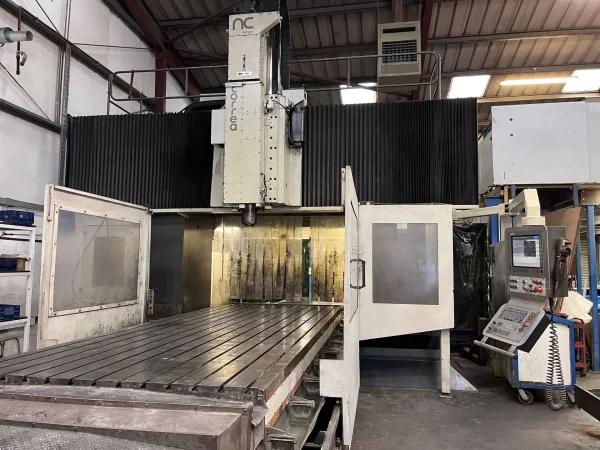

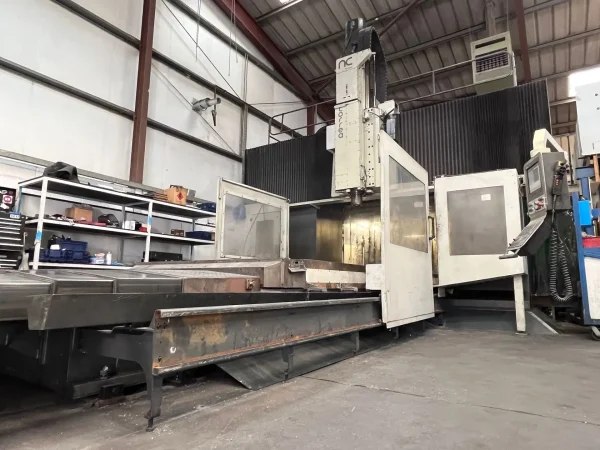

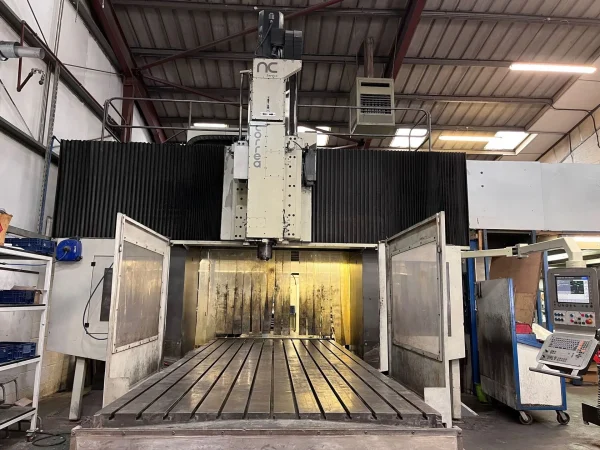

CNC Portal Milling Machine 5 Meters
Manufacturer CORREA
Model FP-60
Year of manufacture 1990

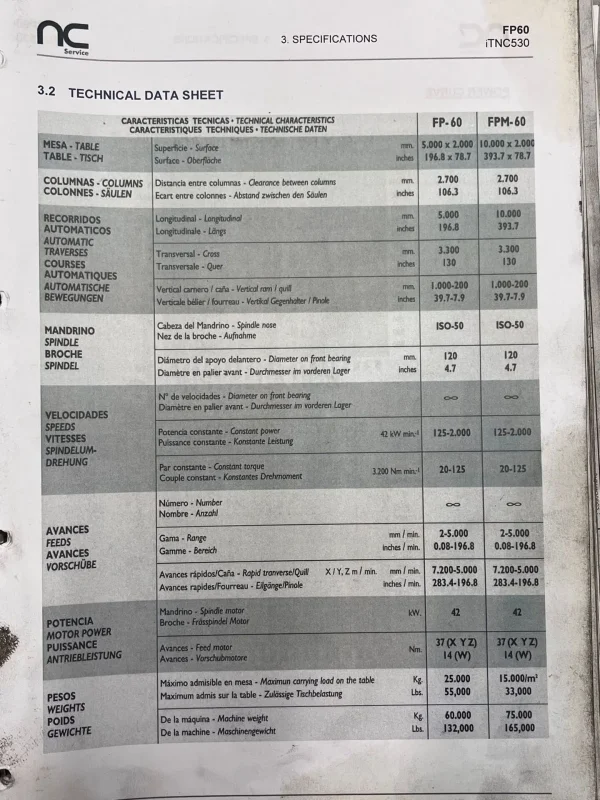

Technical details
x-motion 5,000 mm
y-motion 3,300 mm
z-motion 1,000 mm
CNC control Heidenhain iTNC 530

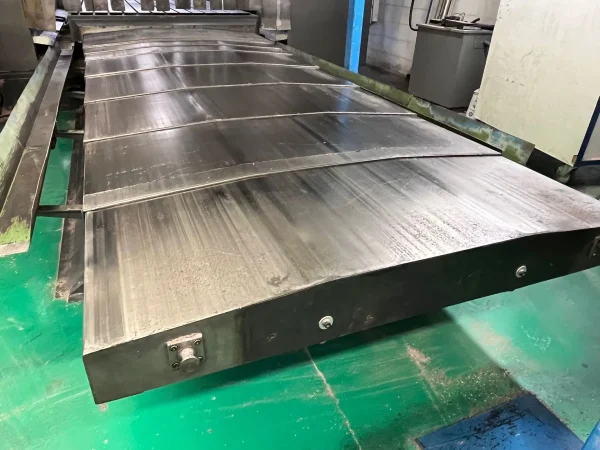

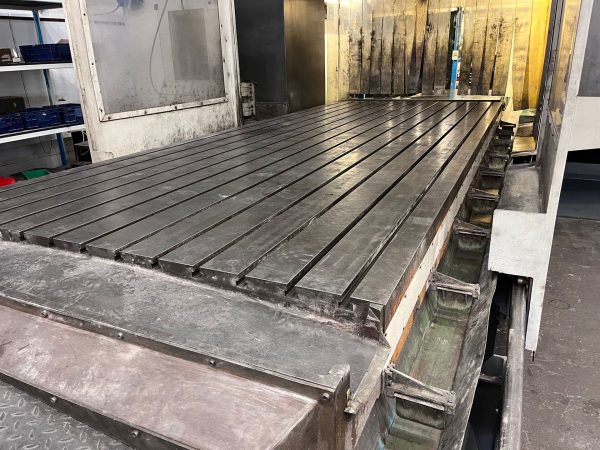

table surface area l x w 5000×2000 mm
no. of milling heads horizontal 1
no. of milling heads vertical 1
distance between columns 2,700 mm
tool taper ISO50

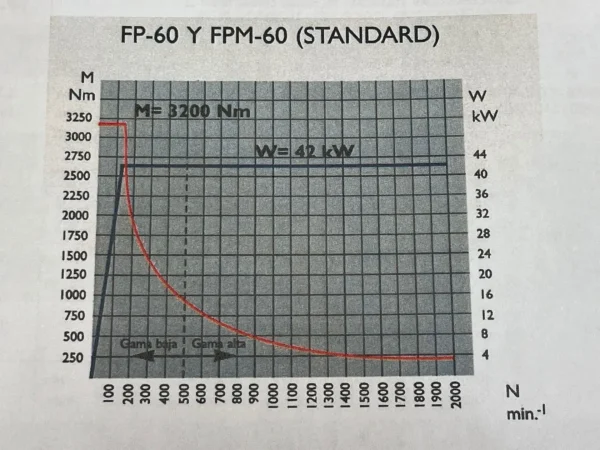

turning speed range 20 – 3000 rpm
feed range 5,000 mm/min
rapid motion (X)7.2 / (Y/Z)5 m/min
total power requirement 42 kW
weight approx. 60,000 kg
Approx. Onsite Dimension. (l x w x h) 12,700 x 5,090 x 6,033 mm
Machine description

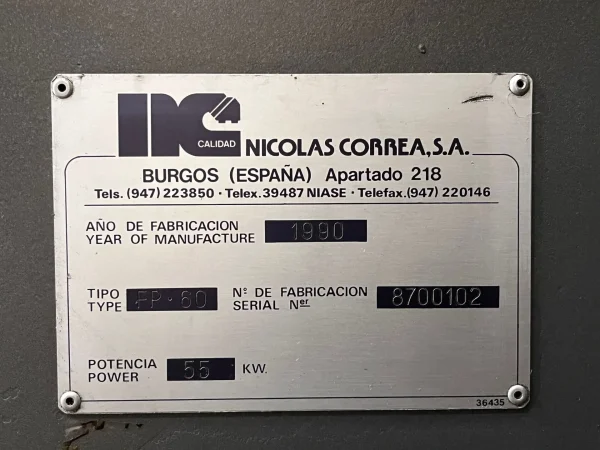

S/N: 8700102
Retrofitted: 2014

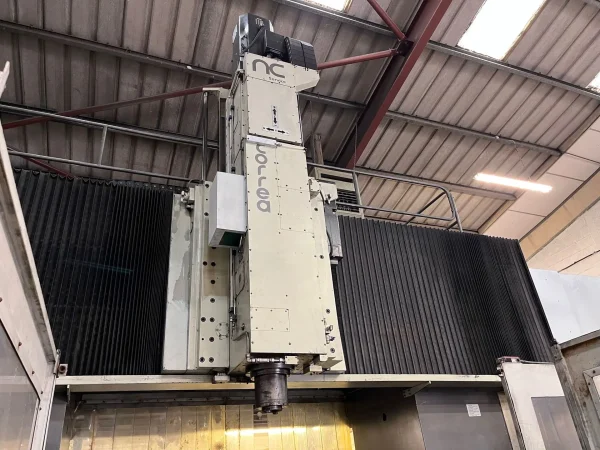

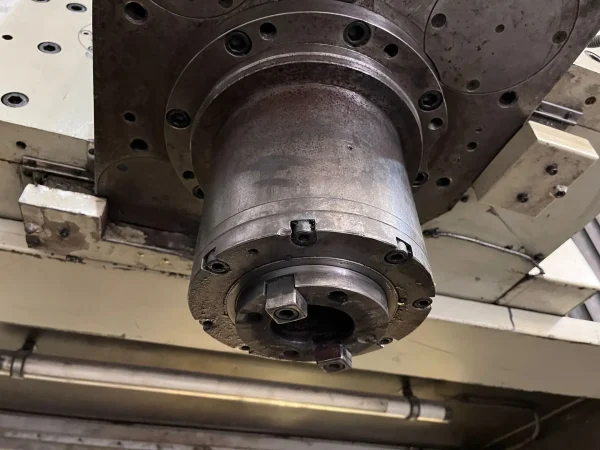

1x vertical milling head

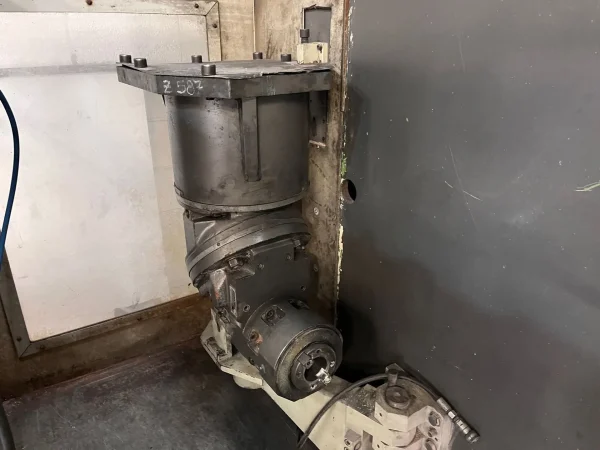

1x horizontal milling head

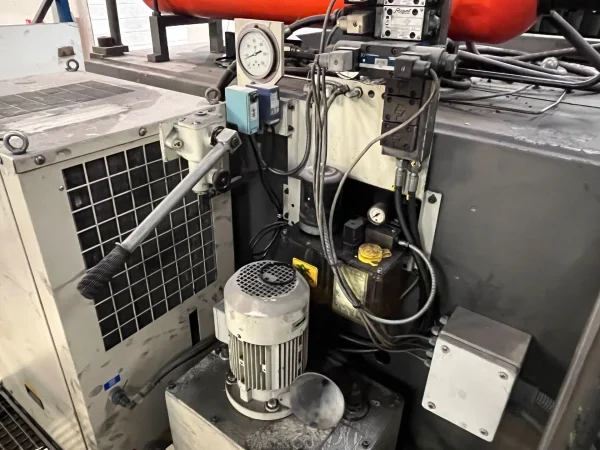

Tool clamping: hydraulic
Number of T-slots: 9
T-slot dimensions: 22 mm
