Description

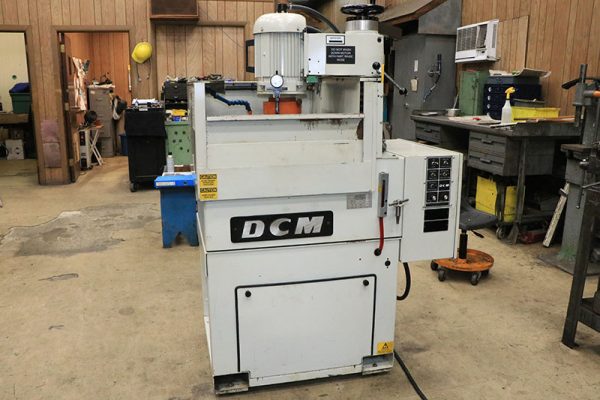

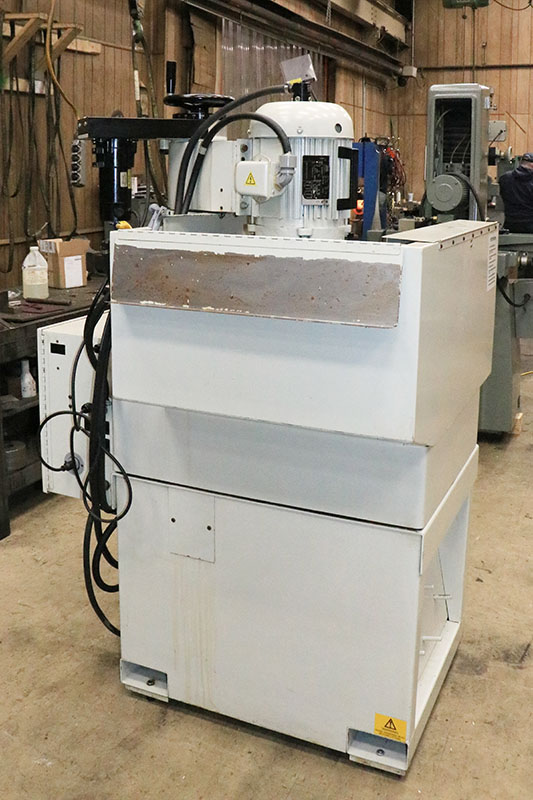

DCM PDG 5-3 DCAF MINI Punch and Die Grinder Rotary Table Surface Grinder – Year 2011

DCM Tech AUTOMATIC
Made in USA

Punch & Die Rotary Surface Grinder

with Automatic Cycle, Automatic Downfeed

Model: PDG-5-3 DCAF S/N: 506411 New: 2011

Specifications:

Diameter:……………………….. 18″

T-Slot:…………………………. 6

Speed:………………………….. 20 RPM

Motor:………………………….. 1/2 HP

Maximum:………………………… 10″

Speed:………………………….. 3600 RPM

Motor:………………………….. 5 HP

Autofeed Rate – Infinitely Variable:.. 0.0005-0.020 IPM

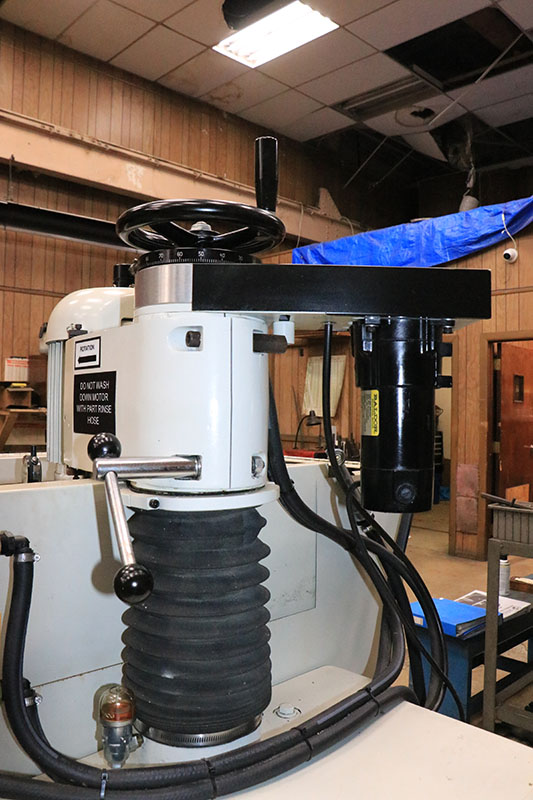

Manual Handwheel Graduations:……… 0.001″

Cup Wheel Type:………………….. 6 or 11

Size:…………………………… 6″ OD

Spindle Hole:……………………. 1-1/4″

Tilt Angle:……………………… 0-10°

3 Jaw Chuck:…………………….. 6-1/2″

Permanent Magnet Chuck:…………… 7″ x 4″

Dimensions:…………………… 42″ x 36″ x 64″(H)

Weight:…………………………. 1,500 lbs

Machine is presently wired for

3/60/230 Volts, 19.7 Full Load Amps

The Punch and Die Grinder (PDG), a Rotary Table

Surface Grinder, is primarily dedicated to the

sharpening of turretpress tooling, but also

includes the sharpening of rooftop punches and

small progressive die details. DCM Tech’s Punch

and Die Grinder is a turnkey package with

autofeed control, self dressing CBN abrasives,

through spindle coolant and universal fixturing

that accepts Amada,Trumpf, Salvagnini, Finnpower,

Weideman, Whitney, and other style tooling.

Sharpen large station dies and rooftop/shear

angle tooling up to 10°with the standard

fixturing package.

Typical grind time is less than 5 minutes.

Look to the PDG Punch and Die Grinder for:

Reduced replacement tooling costs by as much

as 40% Reduced or eliminate deburring operations

Gained labor efficiencies

Payback period as soon as one year

Standard Abrasive:

20-08238-070-80, 6″dia.

Self-Dressing CBN Straight Wheel Provides

aggressive material removal rates and a

high-quality surface finish

Comes with Coolant System, New Rotary Coupling Installed

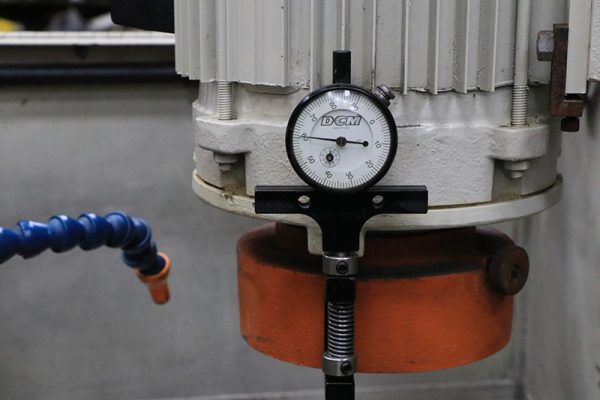

Tool finder Tool with Dial Indicator

Beautiful & Original Machine
Inspect Under Power

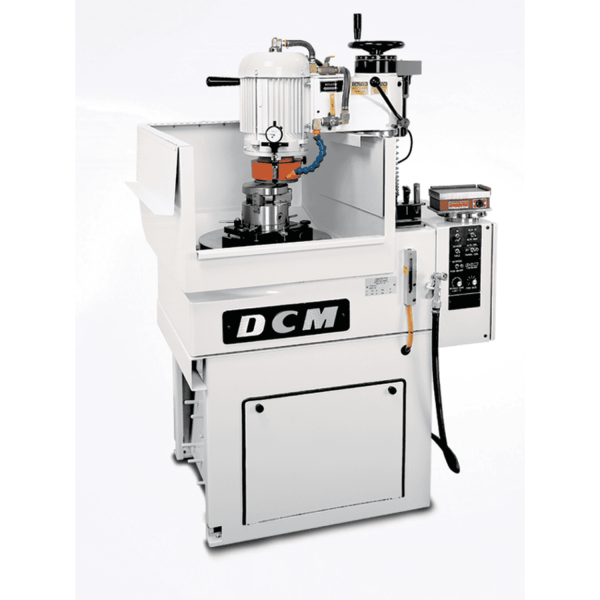

Manufacturer Catalogue Information about DCM Tech PDG Punch and Die Grinder

The Punch and Die Grinder (PDG), a Rotary Table Surface Grinder, is primarily dedicated to the sharpening of turret press tooling, but also includes the sharpening of rooftop punches and small progressive die details. DCM Tech’s Punch and Die Grinder is a turnkey package with autofeed control, self dressing CBN abrasives, through spindle coolant and universal fixturing that accepts Amada, Trumpf, Salvagnini, Finnpower, Weideman, Whitney, and other style tooling. Sharpen large station dies and rooftop/shear angle tooling up to 10 degrees with the standard fixturing package. Typical grind time is less than 5 minutes.

Look to the PDG Punch and Die Grinder for:

Reduced replacement tooling costs by as much as 40%
Reduced or eliminate deburring operations
Gained labor efficiencies
Payback period as soon as one year
View Alternate Machine Selections:

MINI PDG Punch and Die Grinder
Grinding Applications:

Sharpen Turret Press Tooling
Regrind Carbide Pump Seals
Grind Carbide Tooling
Sharpen Ironworker Tooling
Sharpen Rooftop Punches
Sharpen Progressive Dies
Regrind Dies Sets
Debur Stripper Plates

MINI Punch and Die Grinder

The MINI Punch and Die Grinder (rotary table surface grinder) is an ideal addition to turret and punch press cells for in-cell tooling maintenance with 110V or 220V 1-phase power service. Re-grinding of punches and dies by the cell operator is simple, quick, and easy. The MINI uses vertical spindle rotary table grinding action, coupled with a CBN superabrasive grinding wheel to sharpen tools to “as new” condition and performance. It is sold as a complete package with manual feed control, coolant system, self dressing CBN grinding wheel and a universal fixture that accepts Amada, Trumpf, Strippit, Finnpower, Weideman, Whitney, and other style punches and dies. An optional angle fixture is available for rooftop and shear angle type tooling. An optional center mount magnetic chuck, and a variety of abrasive options are also available for alternate applications.

Look to the MINI (PDG) Punch and Die Grinder for:

Gain labor efficiencies – less downtime, less waiting
Replacement tool cost reduction by as much as 40%
Reduce or eliminate deburring operations
Individual cell affordability
Short payback time
Machine Specifications

Standard 110V, 1-Phase -or- Optional 208V, 1-Phase
Cast iron base
Rigid z-axis column with dovetail ways
Accepts 6″ diameter grinding wheel
Recirculating coolant system with paper filter media
Standard 3 jaw chuck workholding fixture
Optional fixturing for angled tool sharpening
1-1/2 HP 3600 RPM Grinding Spindle Motor
Powered Rotary Table
Dimensions 33″ x 17″ x 60″
Weight 800 lbs
