Description

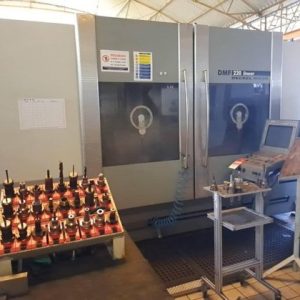

DECKEL MAHO DMG DMF 220 Linear – Year 2001
CNC Vertical travelling column bed milling machine
Year of construction 2001
CNC control SIEMENS 840 D ShopMill
Travel distances X: 2200 mm, Y: 560 mm, Z: 720 mm
table size 2600 x 600 mm
Table load 2200 kg
Table height above floor 870 mm
Spindle holder SK 40 (DIN 69871 A)
Spindle speed max. 12,000 rpm
spindle drive 35 kW at 40% ED / 25 kW at 100% ED
Feed speed 0-20.000 mm/min.
Rapid traverse speed X-axis 100 m/min.
Rapid traverse speed Y+Z axis 50 m/min.
Power supply 400 Volt, 50 Hz, 60 kVA
– Partition wall for two-place pendulum machining
– Tool changer 30-fold
– Internal coolant supply through the spindle 40 bar (IKZ)
– 2 pieces of rotating safety disks (1 piece defective)
– Blowing air through the spindle center via M-function
– Infrared transmitter unit and preparation for a TS631 probe
– adjacent coolant treatment plant, slotted screen separator DECKEL MAHO / INTERLIT type SKA 200/760
– Chip conveyor BLECHTECHNIK type DMF 220
– Central grease lubrication
– Operating instructions
– Operating mode 4, process monitoring in production
– Operating hours – control on = 55802 h
– Operating hours – program run or spindle on = 28703 h
Footprint L x W x H 7900 x 5200 x 2750 mm
Space requirement of the basic machine L x W x H 5800 x 3950 x 2750 mm
Space requirement chip conveyor L x W x H 5500 x 900 x 1500 mm (450 kg)
Space requirement coolant treatment system L x W x H
