Defum KNA-110/135 – Year 1988

Contact us for price

Categories: ,

Description

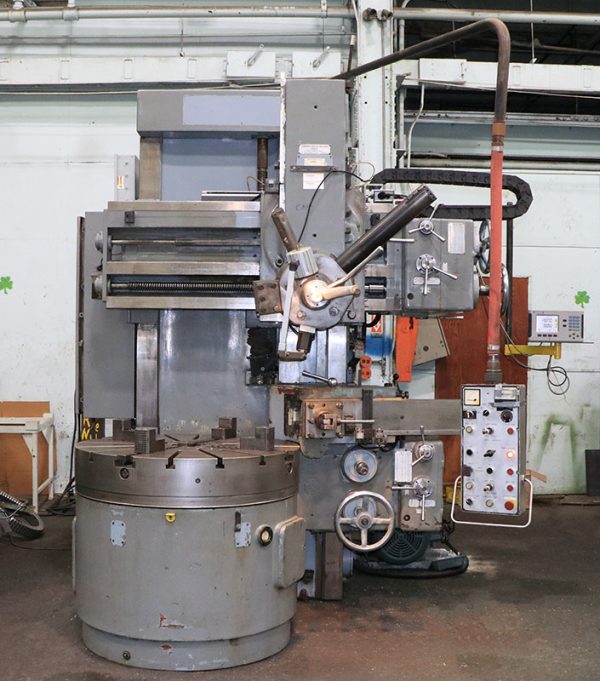

Defum KNA-110/135 – Year 1988
VERTICAL BORING MILL & VERTICAL TURRET LATHE

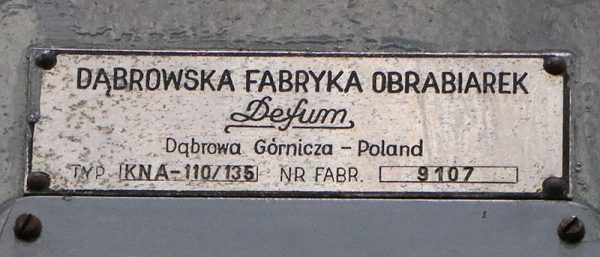

MODEL: KNA 110/135, S/N: 9107, NEW: 1988

SPECIFICATIONS:
TABLE DIAMETER …………………….. 43-1/4″
MAX SWING w/ SIDE HEAD IN POSITION …… 43-1/4″
MAX SWING w/out SIDE HEAD …………… 53″
MAX HEIGHT FACE OF TOOL HOLDER TO TABLE . 37.4″
VERTICAL TURRET SLIDE TRAVEL ………… 23.62″
VERTICAL TRAVEL OF CROSS RAIL ……….. 31.5″
WORK PIECE MAX WEIGHT ………………. 8,800 lbs
MAXIMUM DISTANCE, SIDE HEAD RAM TO TABLE 22.44″
SWIVEL OF TURRET HEAD ………………. +/- 45″
TABLE SPEEDS (16) ………………….. 6.3 – 200 RPM

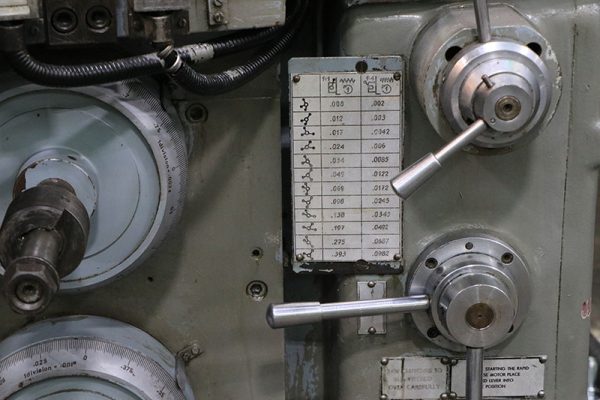

FEEDS (12) ………………………… .002 – .393 IPR
RAPID TRAVERSE RATE ………………… 74 IPM
APPROX WEIGHT ……………………… 30,000 LBS

DIMENSIONS:
LENGTH ………………………….. 100″
WIDTH …………………………… 89″
HEIGHT (MIN) …………………….. 119″
HEIGHT (MAX) …………………….. 141″

EQUIPPED WITH:

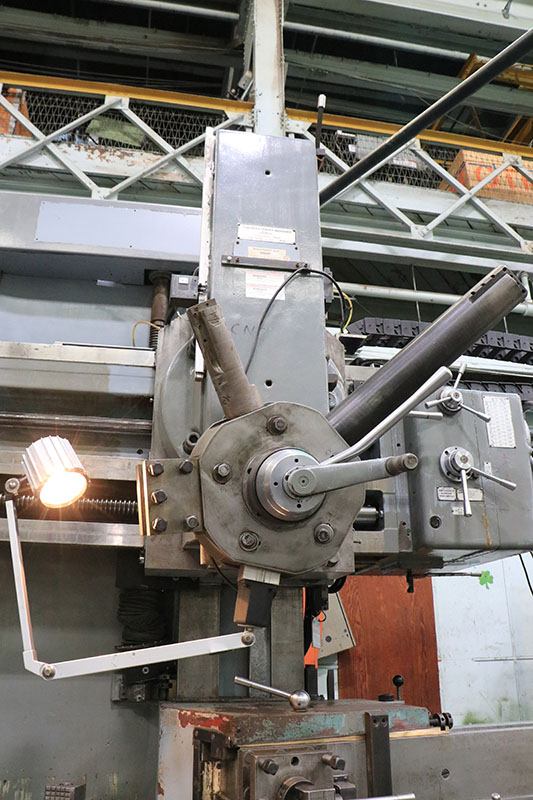

PENTAGON SWIVEL TURRET HEAD ON RAIL

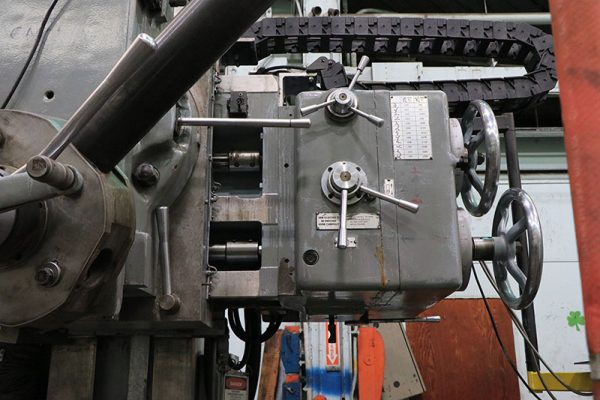

SIDE HEAD
ALL HARDENED WAYS
4-JAW CHUCK w/ SET OF (4) HARDENED TOP JAWS
FULL PENDANT CONTROL
ONE-SHOT LUBRICATOR
PUMP & SPLASH GUARDS
.8 HP RAPID TRAVERSE MOTOR
1.5 HP LUBE MOTOR
3 HORSE POWER RAIL ELEVATION MOTOR

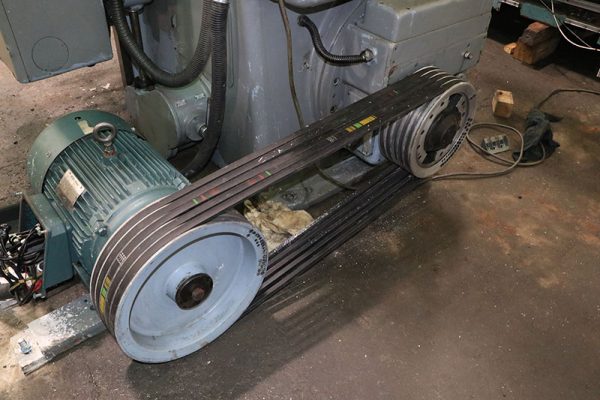

30 HORSE POWER MAIN DRIVE MOTOR

INSPECT UNDER POWER
