Description

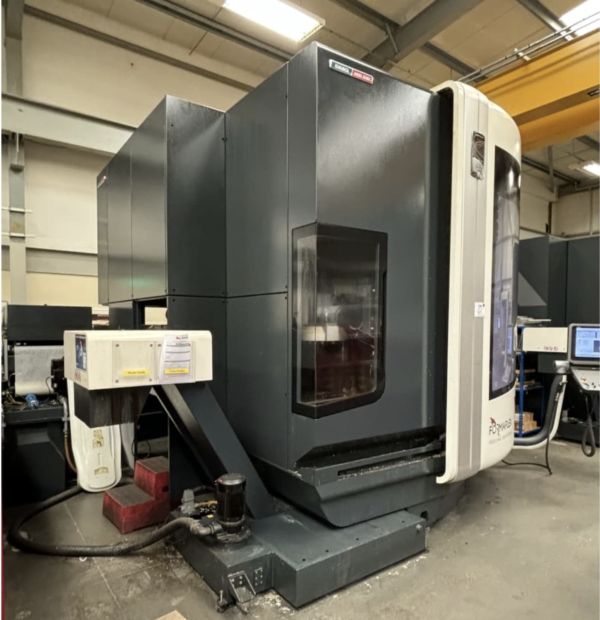

DMG DMU 100 eVo – CNC 5-Axis Vertical Machining Center – Year 2013
Axis X 950 mm
Axis Y 800 mm
Axis Z 700 mm
CNC HEIDENHAIN iTNC 530
Table length 950 mm
Table width 800 mm
Max. part weight 1000 kg
Spindle taper HSK A63
Max. spindle speed 18000 rpm
Spindle motor power 35 kW
Weight 17400 kg
X: 950 mm
Y: 800 mm
Z: 700 mm
Control unit : HEIDENHAIN iTNC 530
Table Dimension 950 x 800mm (11 ‘T’ Slots)
Spindle Taper HSK A63
Maximum Spindle Speed 18,000rpm
60 Position ATC
With High Pressure Through Paper Filtration Coolant System, Chip Conveyor, Filtermist Fx6002 Mist Extraction Unit, Blum Laser Presetter, Visiport Rotating Window, Wash Gun, Handwheel & Manuals.
