Description
Axis X | 800 mm |
---|---|
Axis Y | 650 mm |
Axis Z | 550 mm |
CNC | Heidenhain TNC 430 |
Spindle taper | ISO 40 |
Max. spindle speed | 12000 rpm |

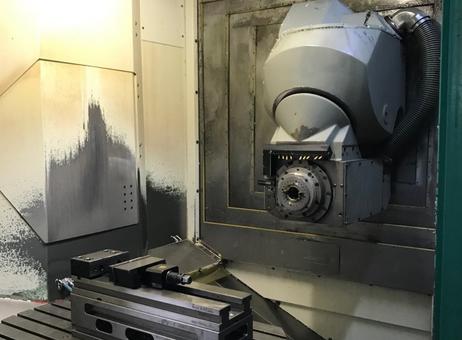

The machine is in operation and fully functional. Performed service and replacement of main parts according to the list below.
The machine includes new X / Z axis ,
Heidenhain TNC 430 control system, this is the 5th axis machine.
Service 2015
replacement of B / C module
Service 2016
new spindle bearings
change system
replacement of UV105 power supply
spindle module replacement
replacement of the Z-axis module
Service 2018
new screw + Y-axis linear
new X-axis screw
replacement of the Y-axis blind
replacement of B-head planetary gearboxes
new motor + B-head measuring cable
Service 2019
replacement of door lock
replacement of sensor-eye for workpiece probe
replacement of hydraulic tool clamping hose
Service 2020
replacement of PILS contactors
new E / R module-source
new X / Y module
Accessories: chip conveyor, Heidenhein TS631 workpiece probe, spindle cooling unit, high-pressure internal cooling
Speed range: 20-12000 rpm
Travels in axes:
X 800 mm
Y 650 mm
Z 550 mm
Spindle taper: ISO 40
