Description

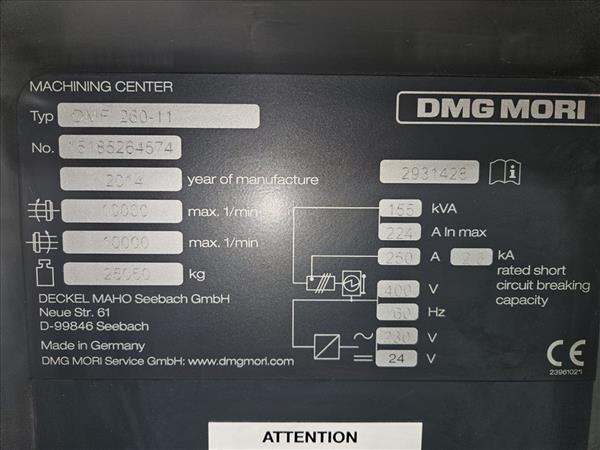

DMG Mori DMF 260/11 linear – Year 2014
X-Travel: 102″
Y-Travel: 43″
Z-Travel: 35″
Table: 126″ x 43″
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 50
Tool Changer: 30-ATC
Max Tool Weight: 26.45 lbs
Max Tool Length: 14.17″
Max Tool Diameter: 6.3″
Rapid Traverse Speed – X Axis: 3150 IPM
Rapid Traverse Speed – Y/Z Axis: 2360 IPM
Max Cut Feed Rate: 787.4 IPM
Equipped With:
Siemens 840D CNC Control
Infrared Touch Probe (Renishaw OMP-60) – Spindle
Laser Tool Measurement (Blum)
Swivelhead, B-axis
Dynamic Package for DMF-260 Linear
Linear Drive X-Axis
Internal Coolant System

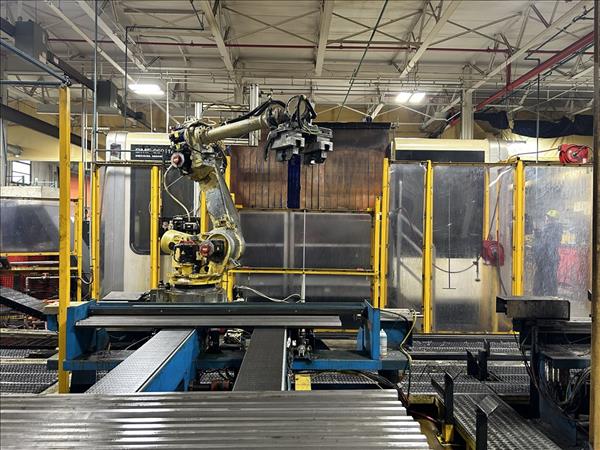

Robot Interface via Profibus
Chip Conveyor
Rebuilt Spindle in 2023
Dimensions & Weight: 273″x 125″x 120″, 55225 Lbs
