Description

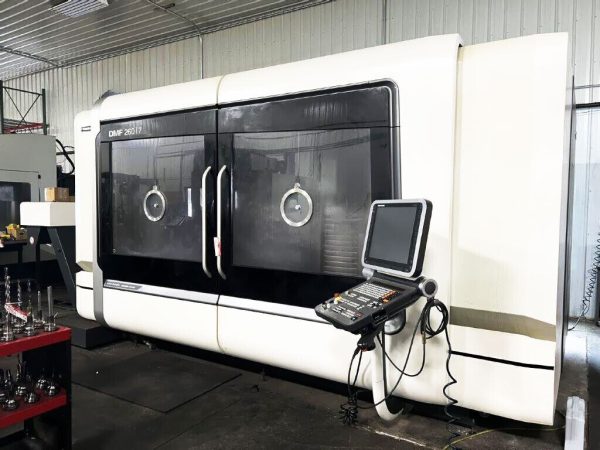

DMG Mori DMF 260 l 7 CNC Traveling Column Machine – Year 2019
Full 5-Axis in EXCELLENT CONDITION
Highlights:
DMF and DMFlinear
— New DMG MORI Design – carry out with new working area concept
— Optimised thermosymmetrical travelling column with chip conveyor in standard
Swivel Rotary Table
— Swivel head as B-axis in standard with reduced distance – spindle axis to table in swivelled position
— Larger Y-travel size with 700 mm/ 27.55 inch, Main milling spindle 8,000 rpm as option 15,000/20,000 rpm
Specifications:
Table surface 114.17″ x 27.55″
X axis travel 102.36″
Y axis travel 27.55″
Z axis travel 27.55″
B axis -/+110°
C axis 360°
Max. table load 4,629 lb
Rapid feed XYZ 40 m/min
Machine dimensions approx. 399.6″ x 255.9″ x H 104.33
Weight approx. 36,155 lbs
Latest Control: 3D-Control Heidenhain TNC 640
Spindle speed 15,000 rpm, 40 Taper
60 Tool ATC
Tool clamping CAT40
Chip conveyor

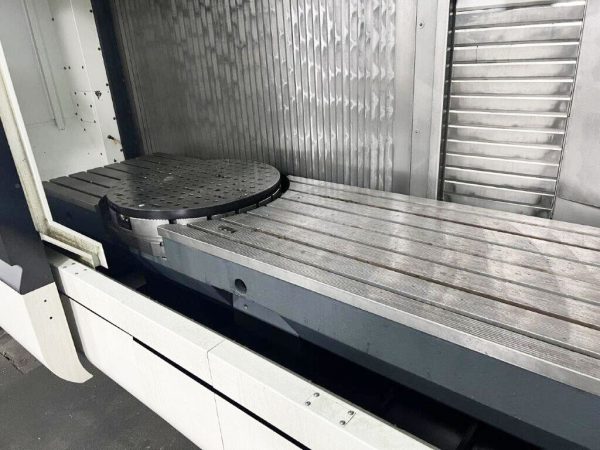

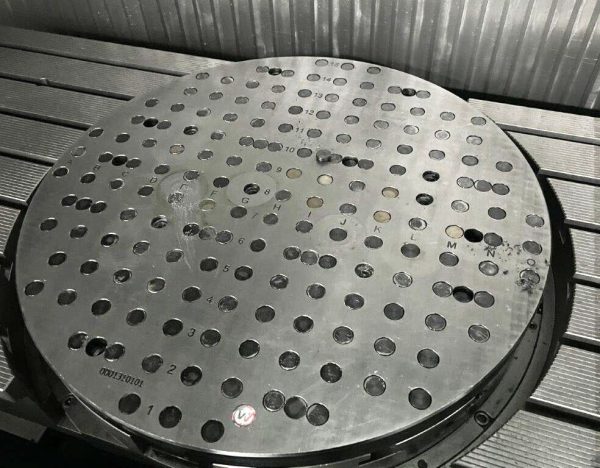

Rigid table with integrated rotary axis (leftside)
Inner coolant supply 40Bar/600I
Spray gun for swart removal
Air blast through spindle center
Infrared measuring probe PP60 optical BLUM
3D quickSET
Machine version Inch
CSA Specification
Federal Pacific Transformer TX40T93MS 3-phase 208/240/480 Volts Primary In Step Up/Down to 400Y/231 with Taps
