Description

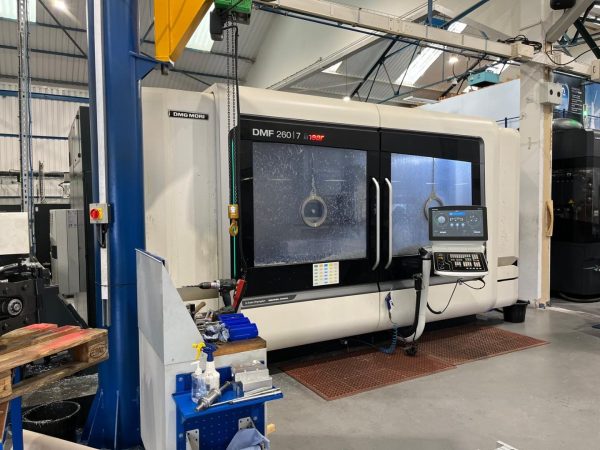

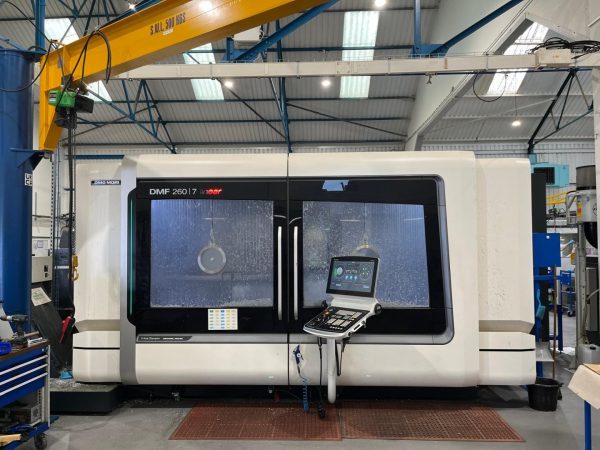

DMG Mori DMF 260 l 7 – Year 2018
CNC Travelling column machine with B-axis for Highest Flexibility & Productivity

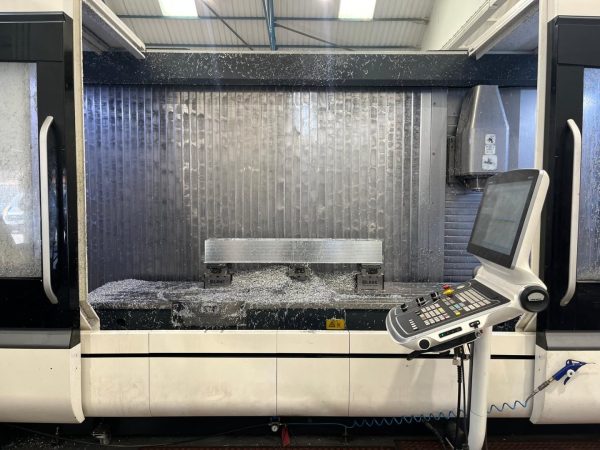

is equipped with the Celos touch screen ERGOLine control, High Pressure Coolant system with filtration plant and TSC, 60 Tool ATC, contactless tool measurement, part probe, and swarf conveyor.
Specification:
X – Travel: 2600 mm
Y – Travel: 700 mm
Z – Travel: 700 mm
A – Axis: Full 360° in 0.001 ° increments
B – Axis+/- 110 °

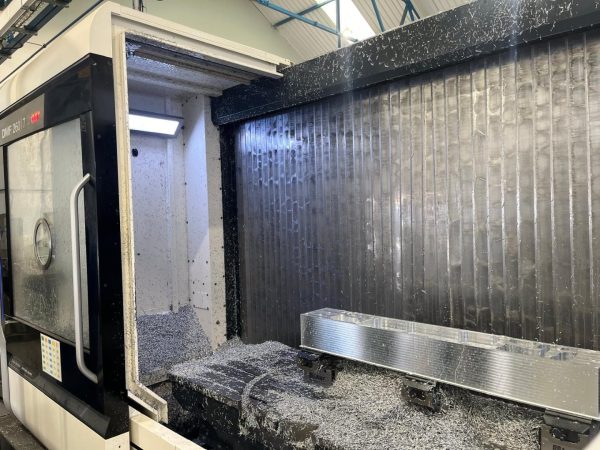

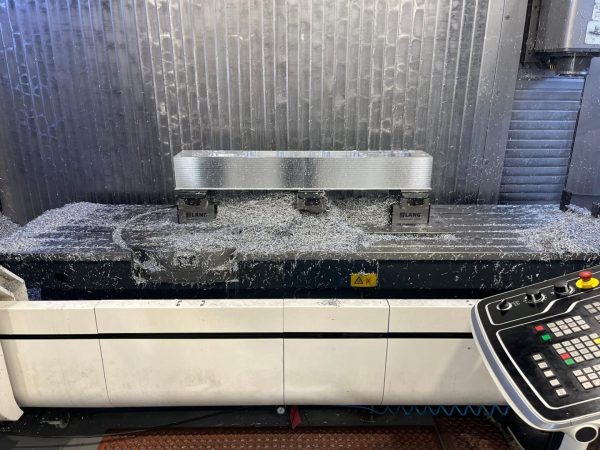

Table Length: 2900 mm
Table Width700 mm
Table load: 2150kgs
Rotary Table: Ø750 mm
Feed rate: X-Axis: 40 m/min.
Feed rate Y-Axis: 40 m/min.
Feed rate Z-Axis: 40m/min.

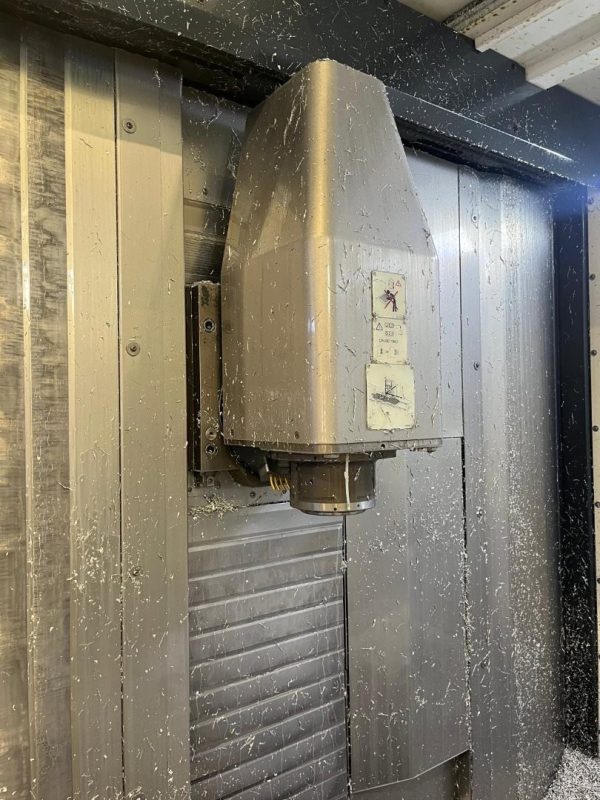

Spindle Taper: BT 40
Power on spindle: 30 kW
Speeds / ranges: 15,000RPM
ATC positions: 60
Coolant through spindle: Yes
HP Collant: Yes
Number of controlled: Full 5 Axis
Chip conveyor
