Description

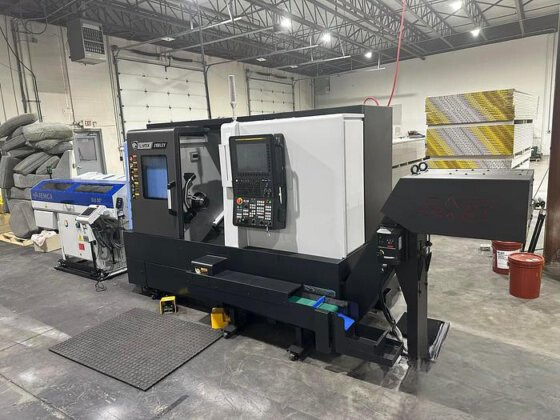

DN Solutions DOOSAN Lynx 2100LSYB – Year 2023
CNC Turning Center Live tooling / C-Axis / SubSpindle / Y-Axis / BarFeeder
Excellent Condition Like New Never Used
4,500 RPM Main Spindle
6,000 RPM Sub Spindle
6,000 RPM Live Tool Holders

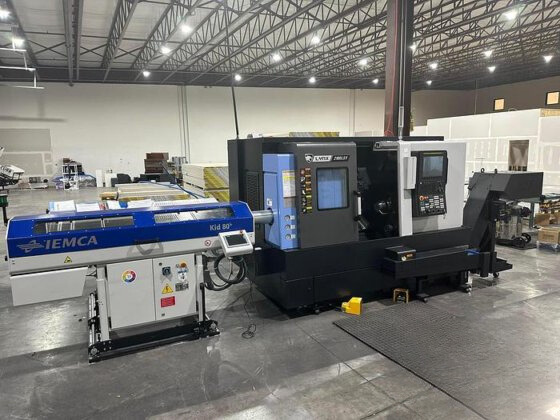

Imeca Kid 80 4′ BarFeeder
Royal Collet Chucks on Main and Sub
8″ Main Chuck
5″ Sub Chuck
2″ Bar Capacity
12 Station Turret
Y axis
SubSpindle
23.6″ Swing over bed
15.7″ Swing over carriage
11.8″ Maximum turning diameter
20.0″ Maximum turning length
30.4″ Distance between main and sub spindle nose
8.07″ X axis travel
±2.065” Y-axis travel
22.0″ Z axis travel
Programmable Part catcher and Part Conveyor
Automatic Tool setter
Sub spindle part ejector with coolant flush
65 psi multi-stage coolant pumps
Separate coolant tank with way lube oil skimmer
Automated metered lubrication system with oil skimmer
580 psi Hydraulic Unit
Air Blast System
12 Station Turret / 24 Position Indexing
1,417 ipm Z axis rapid traverse
Full contouring C-Axis on main and sub spindle
Rigid Tapping
FANUC 0i-T control
