Description
DN Solutions (DOOSAN) DVF 5000 – Year 2022
CNC 5 Axis Trunnion Vertical Machining Center
X 624.84 mm
Y 449.58 mm
Z 398.78 mm
# Axis 5
Power 22.4 kW
RPM 18,000 RPM
# ATC 120
Taper Cat 40 Big Plus
Control CNC (Fanuc 31i-B5)
Dimensions 87″ x 114″ x 114″
Weight 17,000 lbs.
Installed 2023
ONE DN SOLUTIONS 5-AXIS VMC with One year parts warranty from DN Solutions included, plus more, per the following:
Updated quote: May 20,2024

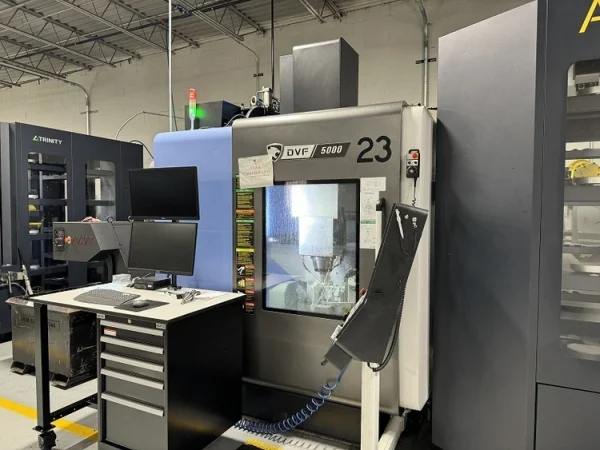

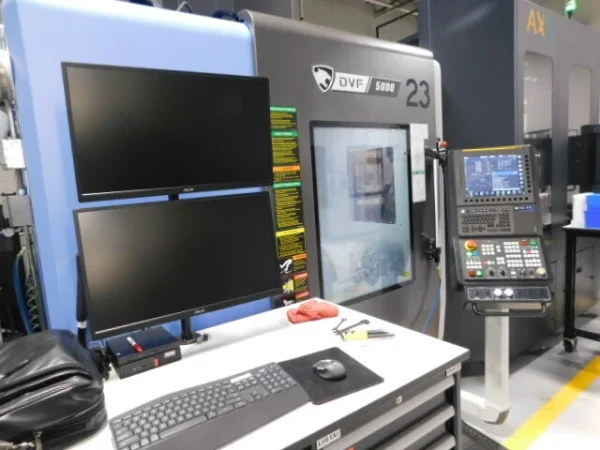

Model: DVF 5000
Travels:
X: 24.6”
Y: 17.7”
Z: 15.7”
B1: +110 degrees, minus 30 degrees
Table: 19.7” in diameter
Max. part diameter: 21.7”
Max. part height: 17.7”
Max. part weight: 882 lbs.
Spindle nose to table top (Without AWC) 150 mm to 550 mm (5.9″ to 21.65″)

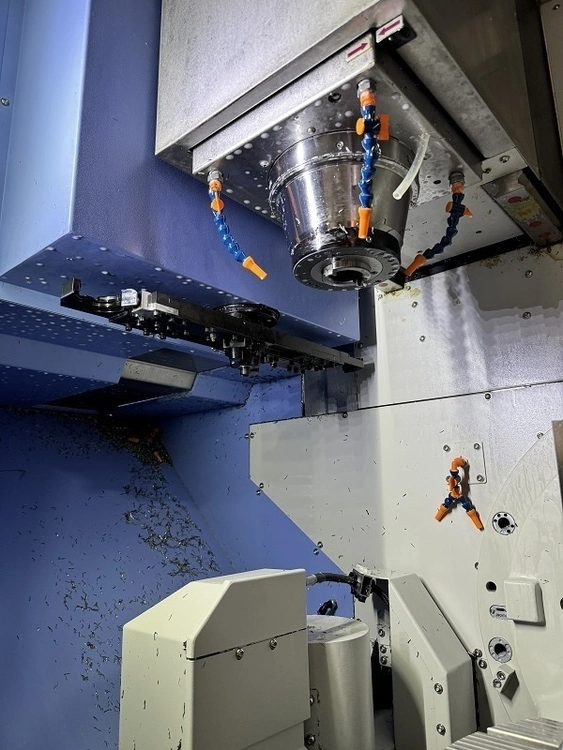

Spindle RPM: 18,000
Spindle HP: 30
Spindle taper: Cat 40 Big Plus
B axis rpm: 20
C axis rpm: 20

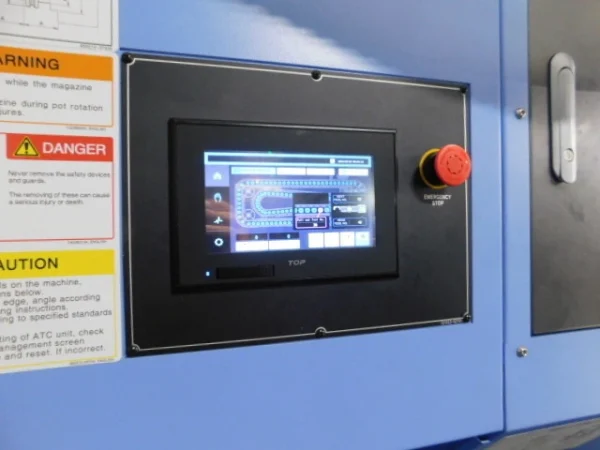

ATC capacity: 120
Tool change time: 1.30 sec
Tool change time chip to chip: 5.3 sec
Rapids: 1,575 ipm
Dimensions: 87” wide x 114” deep x 114” high x 16,750 lbs.
Wired: 220v/60cy/3ph
EQUIPPED WITH:

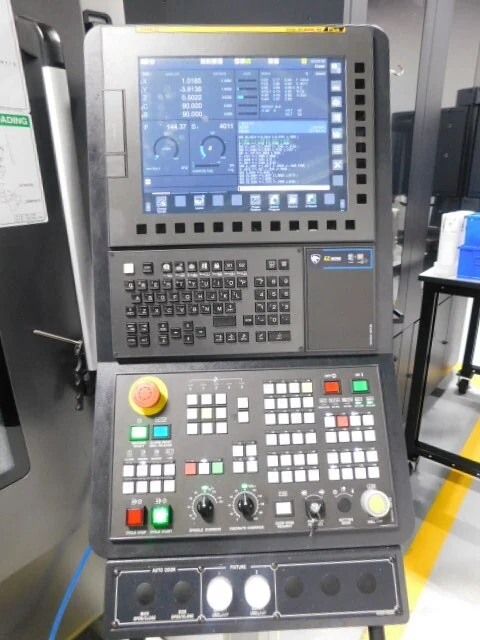

Fanuc 31i-B5 Plus CNC Touch Screen controls with 15” color screen is supplied with DSQ level 3, which includes both 600 block look ahead (AICC II + high speed processing) as well as a data server pre-installed with a 1 gigabyte memory card
Automatic power off
Tool load monitoring
4MB Part program storage
IHMI (Easy operating system)
400 pairs of tool offsets
High speed Skip Function
3D Coordinate Conversion
Fanuc options of Ethernet IP and Robot interface.
Manual pulse generator
Renishaw® RMI-Q radio receiver, RTS tool setter and Renishaw GUI software. Touching off tools with the Renishaw RMP 600 Touch Probe

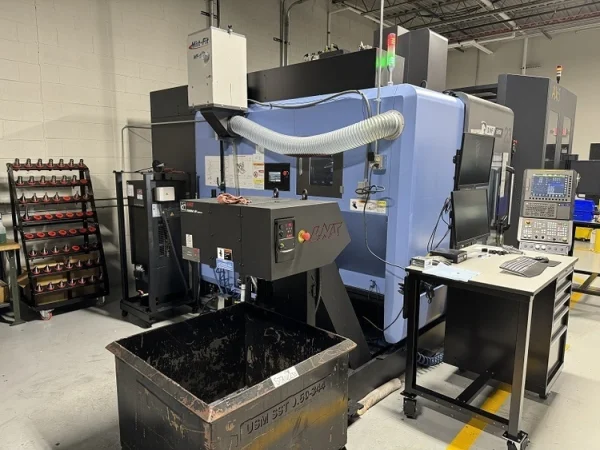

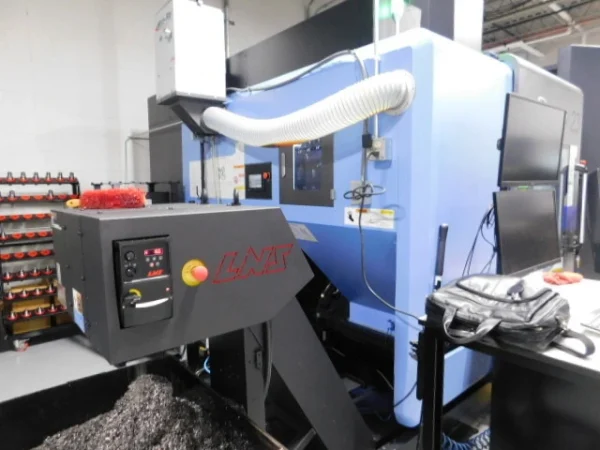

LNS Md. SF-C50 Super fine chip conveyor, which filters down to 50 microns

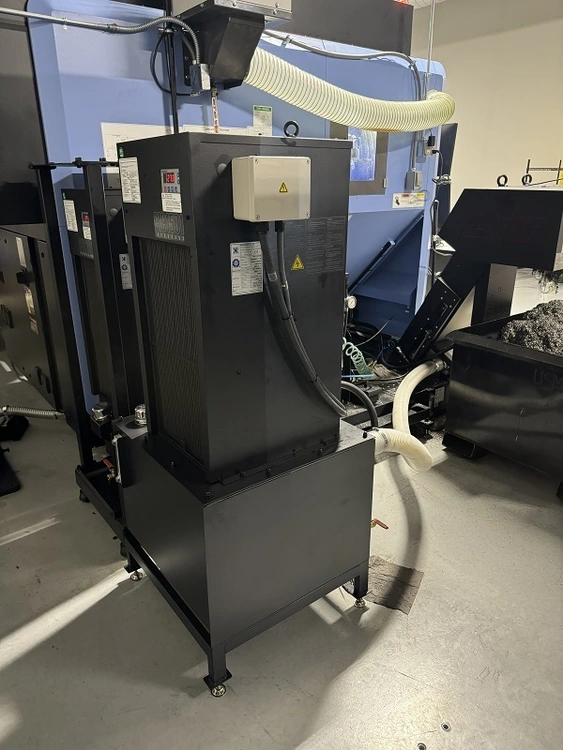

225 psi Coolant thru spindle, 4.0 kw, 2.0 MPA Cyclon
Flood coolant
Belt type oil skimmer
Prepped for Mist collector
Air blast thru spindle
Absolute rotary encoders are on B AND C AXES
The X, Y and Z-axes have absolute type, linear glass scales that do not require referencing at power on
Original shipping brackets
New Coolant chiller

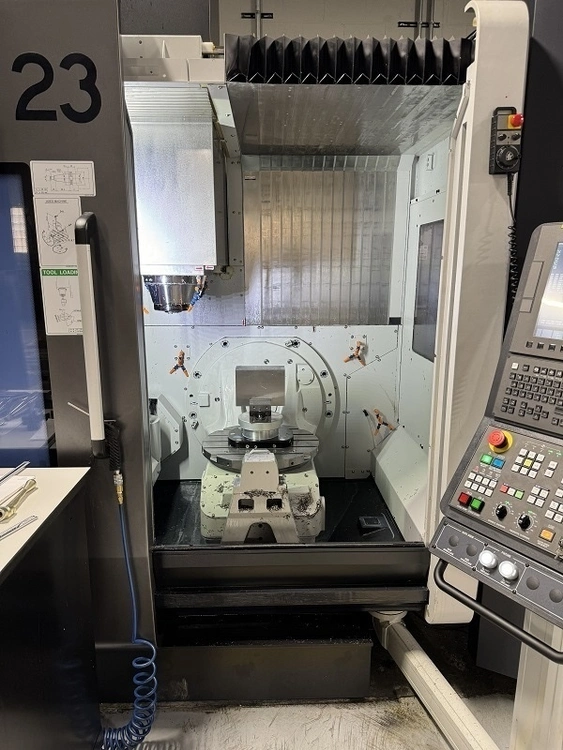

Table equipped with 6 rotary ports for hydraulic/air thru the table
USB Manuals
Maintenance Tool Kit
Note: The Trinity Robot/Pallet Pool with Auto Door does not go with this machine, but the machine has the interface to accept a robot or pallet pool.
The DVF5000’s side door does slide open and could be converted into an Auto Door.
Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.
New: Nov. 2022, installed 1/23/2023
SN: MV0111-000860

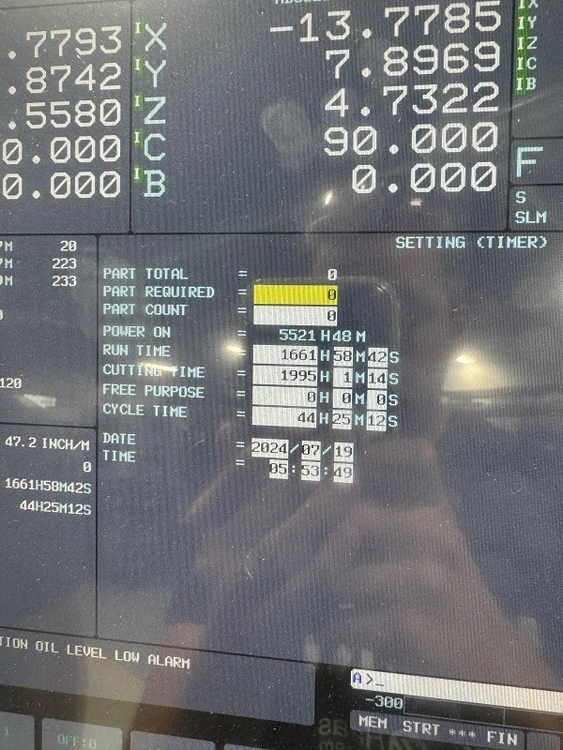

Hours: as of 4/4/2024
Power On: 3,588
Run: 117
Cut: 902
In plant and under power.
