Description

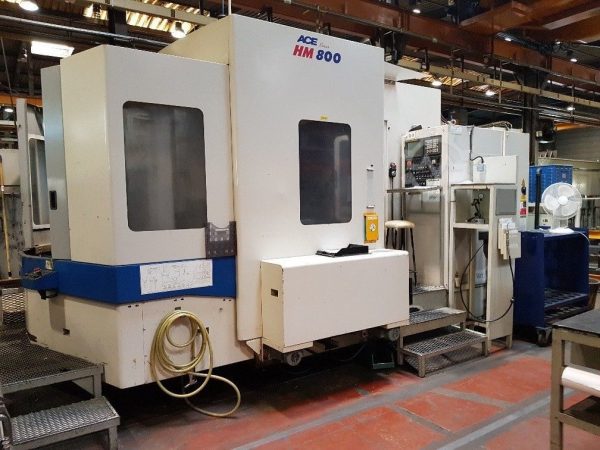

DOOSAN DAEWOO ACE HM 800 – Year 2002
CNC Horizontal Machining center
Construction year : 2002
Control type : CNC
Technical details
x-way : 1250 mm
y way : 1000 mm
z-way : 1000 mm
control : FANUC 18 I MB
Number of pallets : 2nd
Pallet size:
800x 800 mm
Max. Workpiece diameter on the pallets : 1310 mm
Workpiece installation height :1300 mm
Max. Workpiece weight : 1600 kg
B axis (table) : 1 °
Spindle speed : 6000 rpm
Spindle motor : 22/26 kW
Torque on the spindle : 420
Tool magazine: chain magazine
60 BT 50 pieces
Max. Tool through. with free neighboring box.
300 mm
Max. Tool length : 450 mm
Max. Tool weight : 30 kg
Rapid traverse x / y / z : 24,000 mm / min
Total power requirement : 77.6 kVA
Machine weight approx. : 21 t
Space requirement approx. : 5.64 x 3.71 x 3.27 m
equipment
Chip conveyor : Yes
Spindle oil cooler
Further information
Horizontal machining center with 2 x 8000 mm pallets, equipped with
B-axis with 1 ° indexing, IKZ – high pressure cooling through the work spindle 40
bar, 90-fold tool magazine BT 50 6000rpm
Chip conveyor
