Description

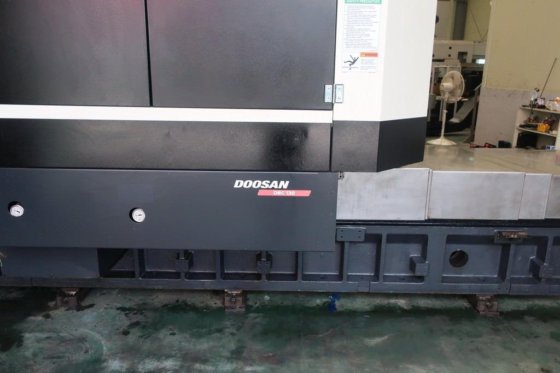

Doosan DBC-130 – 2012 Model
CNC Table Type Horizontal Boring Mill (HBM)
SPINDLE DIAMETER 5.12″
TAPER IN SPINDLE #50
VERTICAL HEADSTOCK TRAVEL,Y-AXIS 78.7″
TABLE CROSS TRAVEL, X-AXIS 118.1″
SPINDLE TRAVEL, W-AXIS 27.6″
COLUMN INFEED TRAVEL, Z-AXIS 63″
DISTANCE SPINDLE CENTER TO TABLE TOP 0″ – 78.7″
DISTANCE SPINDLE NOSE TO TABLE CENTER 29.5″ – 92.5″
TABLE SIZE, B-AXIS 63″ X 70.9″
ROTARY TABLE WEIGHT CAPACITY 33,068 LBS
B-AXIS TABLE ROTATION .001 DEGREE
MAXIMUM SPINDLE SPEEDS 2,500 RPM
TRAVERSE RATE (ALL AXES) 393.7 IPM
FEEDRATE (X/Y/Z AXES) 1 – 157.5 IPM
OVERALL HEIGHT 196.9″
FLOOR SPACE 295.3″ X 322.8″
ESTIMATED MACHINE WEIGHT 94,797 LBS
FANUC 31I-A CNC CONTROL
B-AXIS BUILT IN ROTARY TABLE
40-STATION AUTOMATIC TOOL CHANGER
COOLANT THRU SPINDLE (20 BAR)
FULL ENCLOSURE
LOADED ON YOUR TRUCK
