Description
DOOSAN DNM 5700 CNC Vertical Machining Center – Year 2021
Brand: DOOSAN
Model: DNM 5700
Year: 2021
specifications:
X-Axis 41.3″
Y-Axis 22.4″
Z-Axis 20.1″
Power 24.8 hp
RPM 8,000 RPM
# ATC 30
Taper CAT-40
Table-W 22.4″
Table-L 51.2″
Made In Korea
# Axis 3
Max Table Load 2,204 lb
Distance Spindle Nose to Table 26″
Rapids (X/Y/Z) 1,417 / 1,417 / 1,181 in/min.
Spec Sheet:

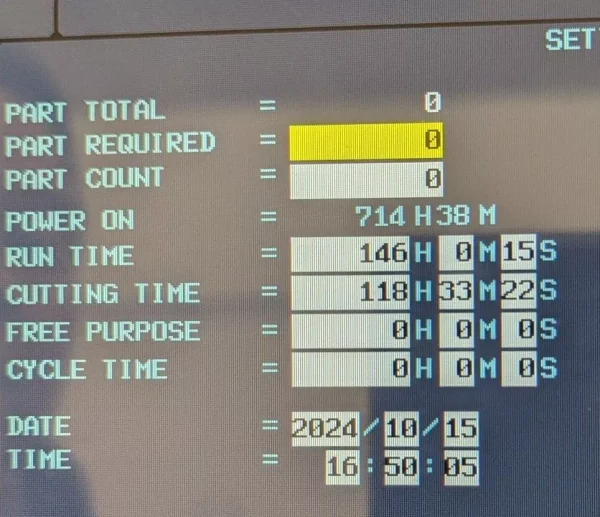

Only 118 cutting hours!
DOM Dec 2021
equipped with:

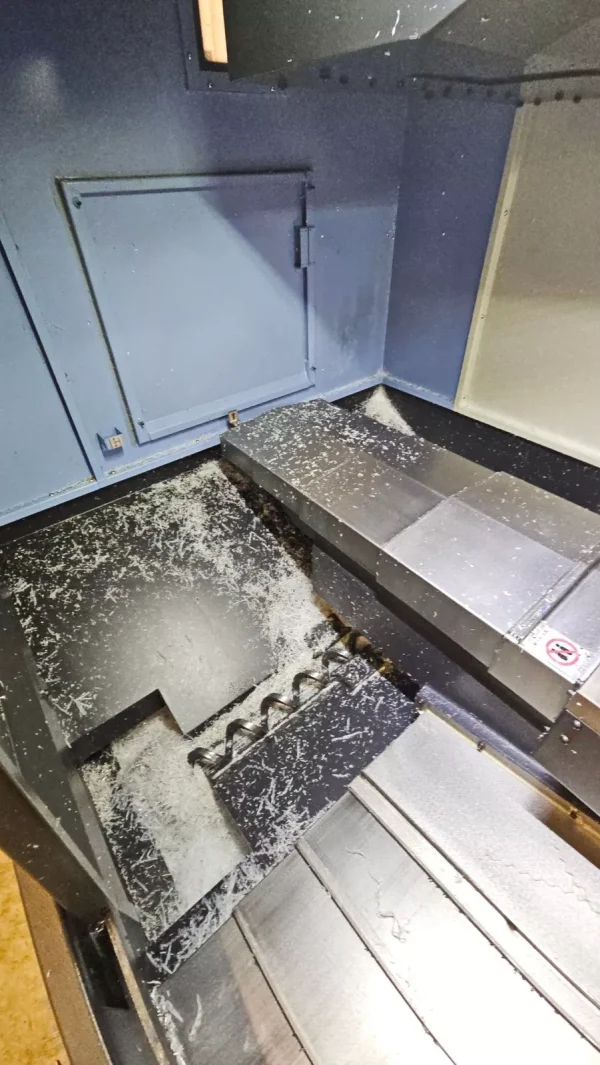

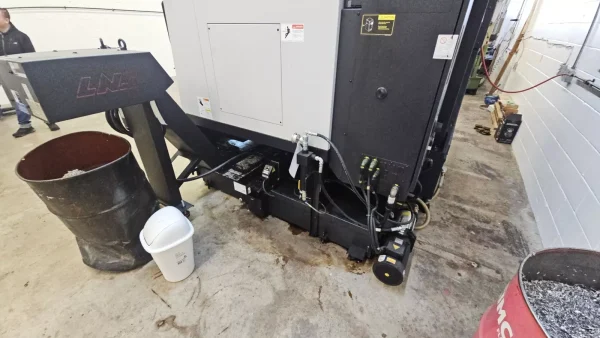

Chip conveyor
Big-plus spindle
Direct-coupled type spindle
Side-mount tool changer
Roller-type LM guides
Auto-lubrication
Tool load monitoring
