Description

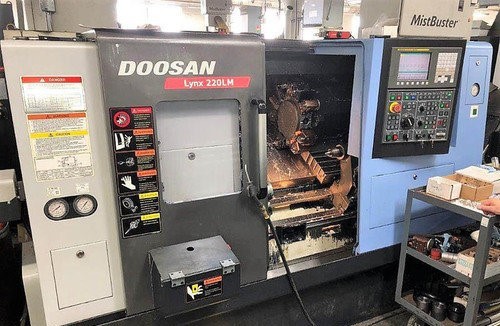

DOOSAN LYNX 220LMA – Year 2009
20″ Swing 20″ Centers Doosan Lynx 220LMA – excellent condition CNC LATHE,
Fanuc i Series, 6″ Chk., Live Tool, C-Axis, Tailst
| Chuck Size | 152.4 mm |
| Bar Capacity | 50.8 mm |
| Power | 14.9 kW |
| Max RPM | 6,000 RPM |
| Turning Dia | 249.94 mm |
| Swing | 589.28 mm |
| Machining Length | 510.54 mm |
| Tailstock | No |
| Live Tooling | Yes |
| Sub Spindle | No |
DAEWOO LYNX 220LMA CNC TURNING CENTER NEW: 2009
SPECIFICATIONS:
SWING OVER BED ……………………. 20.07″
SWING OVER CARRIAGE ……………….. 11.41″
MAXIMUM TURNING DIAMETER …………… 9.84″
MAXIMUM TURNING LENGTH …………….. 20.07″
SPINDLE SPEEDS ……………………. 6,000 RPM
SPINDLE MOTOR …………………….. 20 HP
SPINDLE NOSE ……………………… A2-5
DRAW TUBE I.D. ……………………. 2.047″
SPINDLE BORE DIAMETER ……………… 2.4″
CHUCK SIZE ……………………….. 6.5″
C-AXIS PROGRAMMABLE ANGLE ………….. 0.001 DEGREES
X-AXIS TRAVEL …………………….. 6.88″
Z-AXIS TRAVEL …………………….. 21.65″
RAPID TRAVERSE RATE (X/Z AXIS)………. 1,181/1,417
IPM ROTATING TOOL SPEEDS ………………. 60 TO 6,000 RPM
ROTATING TOOL MOTOR ……………….. 5 HP
TAILSTOCK QUILL DIAMETER …………… 2.55″
TAILSTOCK QUILL STROKE …………….. 3.14″
TAILSTOCK QUILL TAPER ……………… MT#4
FLOOR SPACE ………………………. 104″ X 64″
MACHINE WEIGHT ……………………. 7,400 LBS
EQUIPPED WITH:

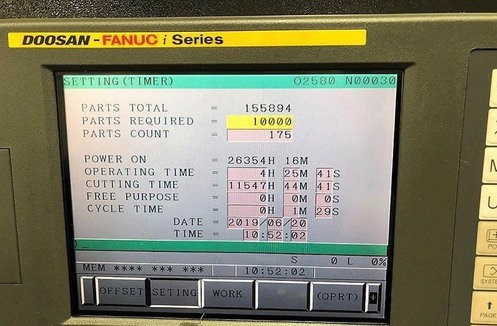

FANUC “i” SERIES CNC CONTROL
FULL C-AXIS
6″ 3 JAW HYD. CHUCK (COLLET CHUCK IN PHOTOS NOT INCLUDED)
TOOLSETTER
PARTS CATCHER
12 POSITION TURRET
TAILSTOCK
(2)LIVE TOOLHOLDERS
CHIP CONVEYOR
BARFEED INTERFACE
ALL AVAILABLE STANDARD TOOLHOLDERS –
ALL AVAILABLE MANUALS
