Description

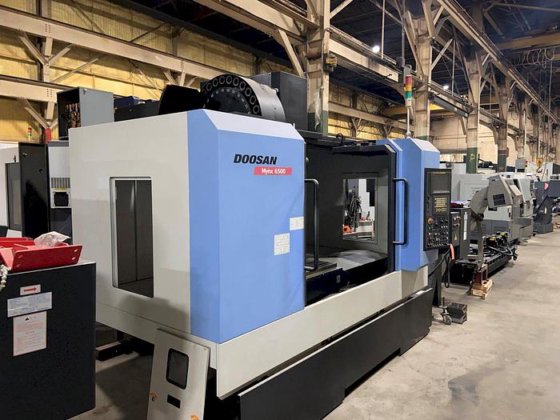

DOOSAN MYNX 6500 – Year 2011
CNC VERTICAL MACHINEING CENTER
Y.O.M.: 2011
SPECIFICATIONS
Description: Doosan Mynx 6500 CNC Vertical Machining Center, Fanuc Series i, 50″/26″/25″ Travels, 8K Spindle, 30 ATC, 21 Horsepower, Chiller, Box Way Design, 2011
CNC Control: yes
Type of CNC Control: Fanuc i Series
# Axis: 3
Table Size: 55″ x 26.4″
Table Capacity: 2200 pounds
X-Axis Travel: 50 inches
Y-Axis Travel: 26.4 inches
Z-Axis Travel: 24.6 inches
Spindle Speed: 8000
Spindle Taper: CAT 40
Main Motor: 20 Horsepower
Tool Changer Capacity: 30
X-Axis Feedrate: 1181
Y-Axis Feedrate: 1181
Z-Axis Feedrate: 945
Coolant Thru Spindle: no
Machine Hours: 6199
Weight: 20000 pounds
Big-Plus Spindle Taper
Chip Conveyor
(2) Chip Augers
30 Station Side Mounted Tool Changer
Doosan Conversational Machining Software
Embeded Ethernet
Remote Pulse Generator
400 Pairs tool Offsets
Spindle Chiller
Box Ways
6199 Cutting Hours
