Description

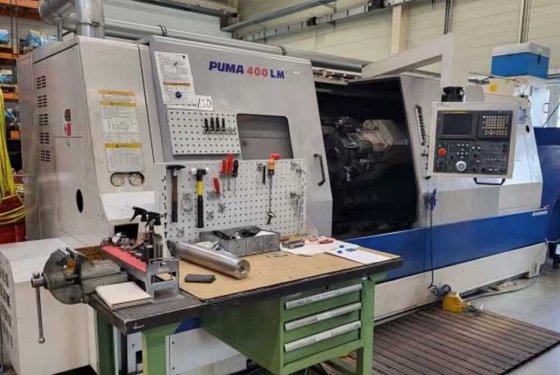

DOOSAN PUMA 400 LMB
Year of construction: 2002
Control: FANUC 18 IT CNC control
BASIC FUNCTIONS
number of spindles 1
number of turrets 1
live positions yes
number of c axes 1
WORKING RANGE TURNING
swing diameter (max.) 700 mm
turning diameter (max.) 460 mm
bar diameter (max.) 91 mm
workpiece length max. 2100 mm
MAIN SPINDLE
spindle revolutions (min) 30 /min
spindle speed (max) 3000 /min
X/Z MOVEMENT
Z axis travel 2155 mm
X axis travel 362 mm
Z-axis rapid traverse 20000 mm/min
rapid traverse X 16000 mm/min
tool holder turret
number of tool positions (total) 12
number of live positions 12
– rotational speed (min) 30 /min
– rotational speeds (max) 3000 /min
HORSE
sleeve stroke 120 mm
sleeve diameter 120 mm
ELECTRICAL PARAMETERS
mains supply 50 kVA
mains voltage 400 V
mains frequency 50 Hz
DIMENSIONS / WEIGHTS
spatial requirements -left/right- 5100 mm
spatial requirements – front/rear – 2400 mm
total height 2240 mm
total weight approx. 14000 kg
