Description
DOOSAN Puma MX2500ST CNC Multi-Tasking Machine – Year 2009
Manufacturer DOOSAN
Model Puma MX2500ST
Year of manufacture 2009
Technical details
serial number PX25ST0240

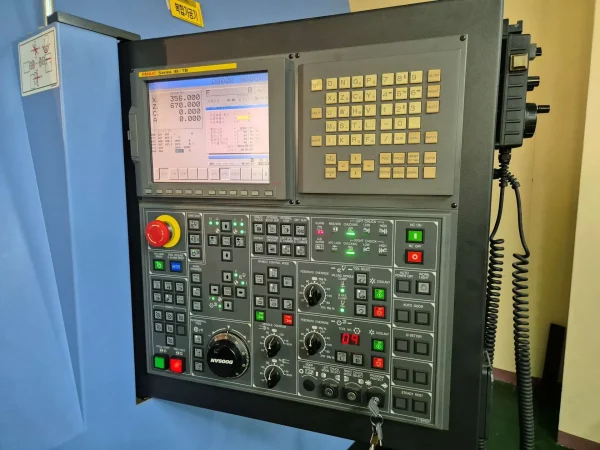

control Fanuc 18iTB
Approx. Onsite Dimension. (l x w x h) 4520 × 2495 × 2600 mm
toolchanger positions 24
power capacity – spindle 11/15 kW
Read off operating hours 852 h
Integrated C-axis Yes
Bar feeder Yes
weight approx. 12,500 kg
* Max cutting diameter: 750mm
* Recommended cutting diameter: 250mm
* Max cutting length: 1020mm
* Bar capacity: 76mm
* Spindle nose: A2-8
* Headstock spindle: 35000 rpm
* Sub spindle speed: 3500 rpm
* Y axis travel: 160mm
* C axis index: 0.001 degree
* B axis +- 120 degree
* Milling spindle: CAPTO C6
* Milling spindle: 10,000 rpm
* 10″ chuck for main & for sub spindle
* C axis
* Lower turret 12 position
* Main & Sub motor: 22/26 kw
* Each one angular and straight milling holder
* Machine is in a laboratory and the power on time is only 852 hours.
