Description

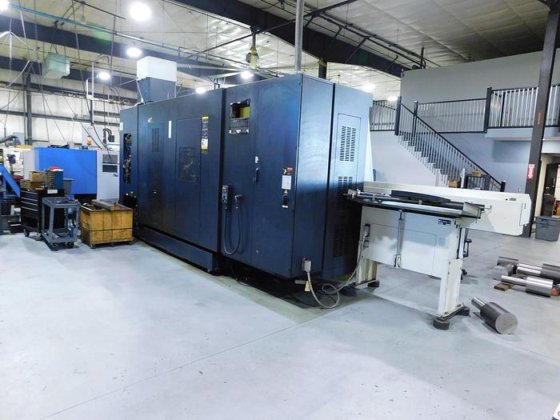

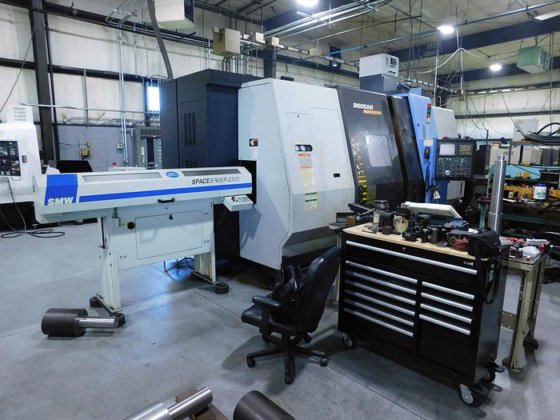

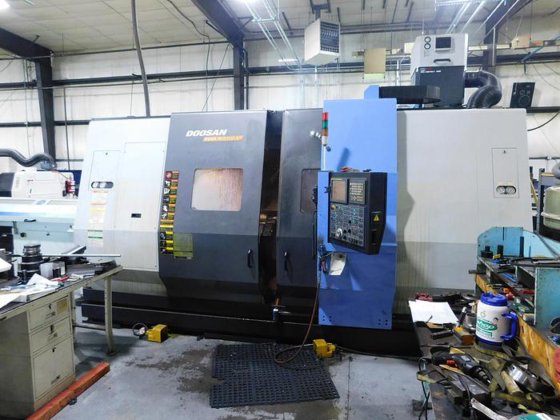

DOOSAN PUMA MX250LST CNC MultiTasking Machine – Year 2007
Make: Doosan Puma
Model: MX250LST

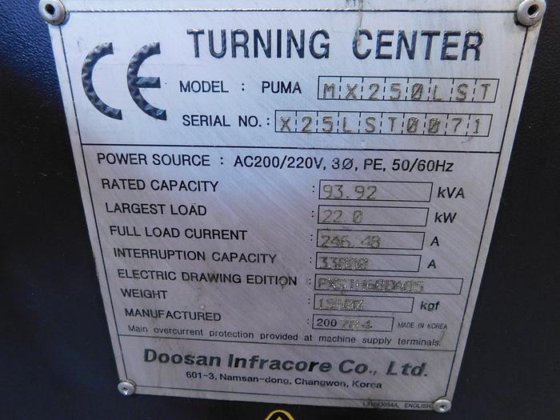

S/N: X25LST0071
Year: 2007

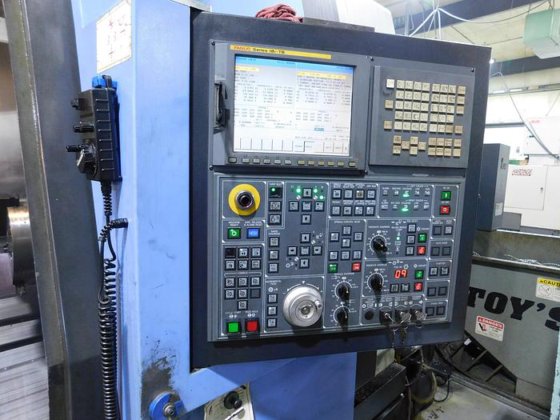

Control: FANUC 18i-TB
Distance between centers: 59”
Max turning length: 59”
Max swing over bed: 30”
Max swing over slide: 23”
Max turning diameter: 21”
Bar working diameter: 2.9”
X1-axis travel: 21”
X2-axis travel: 7”
Z1-axis travel: 62”
Z2-axis travel: 64”
Y-axis travel: 160 (+/- 80) mm 6”
A-axis travel: 61”
C1-C2 axis travel: 360º (0.001)
B-axis travel: 240º (+/- 120)
X1-X2 rapid traverse: 24 m/min
Z1-Z2 rapid traverse: 24 m/min
Y rapid traverse: 16 m/min
A rapid traverse: 24 m/min
C1-C2 rapid traverse: 200 Rpm
B rapid traverse: 27 Rpm
Left and right spindle speed: 3,500 rpm
Left and right spindle power: 26 Kw
Spindle nose: ASA A2 # 8
Bore of draw tube: 77 mm
Milling spindle taper: CAPTO C6
Max speed milling head: 10,000 rpm
Approx. machine weight: 33,100Lbs
Machine dimensions: 216”x100”x104”
Features:

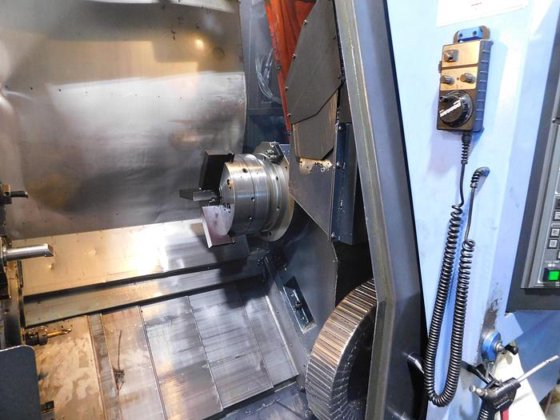

Hydraulic left spindle chuck: Ø 250 mm 9”
Hydraulic right spindle chuck: Ø 300 mm 11”

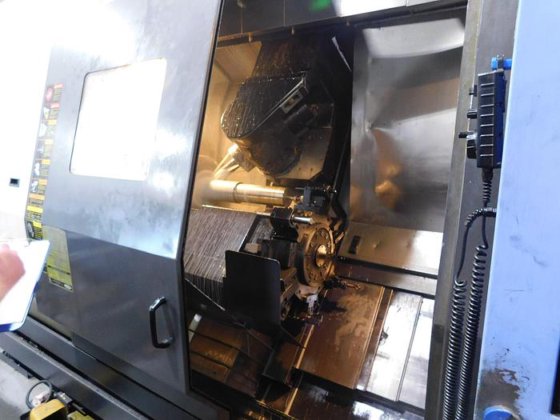

Turret: Motorized 12 stations

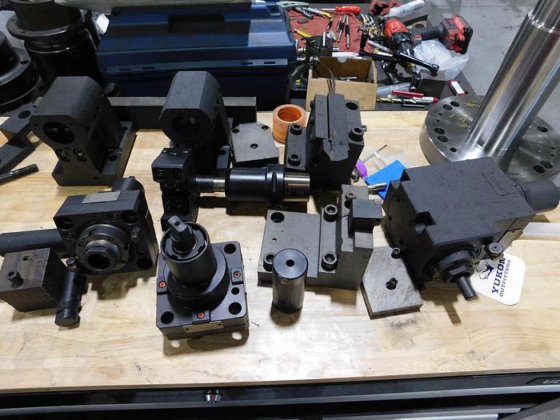

Includes Assorted Live Tools

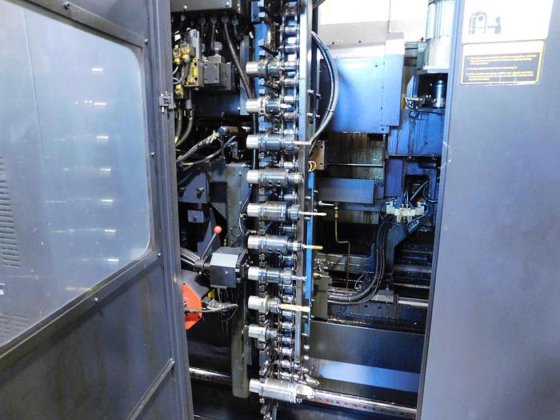

Tool magazine: ATC 40 units
High-pressure coolant pump

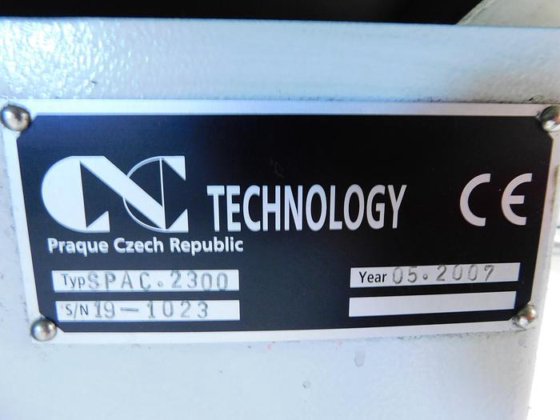

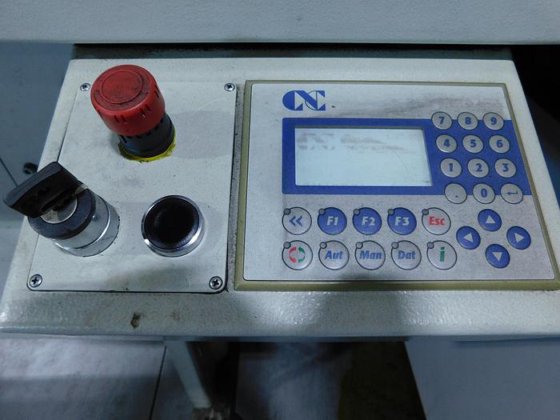

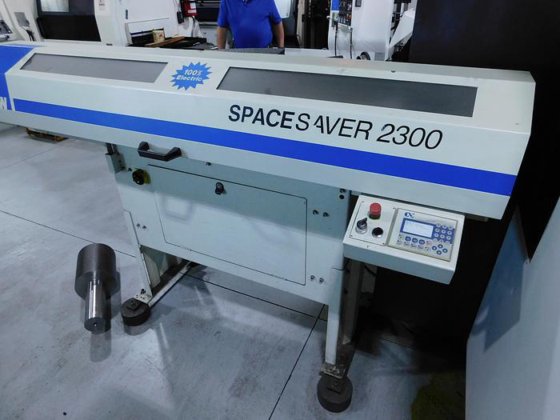

Chip conveyor, SMW Space Saver Bar Feeder
