Description

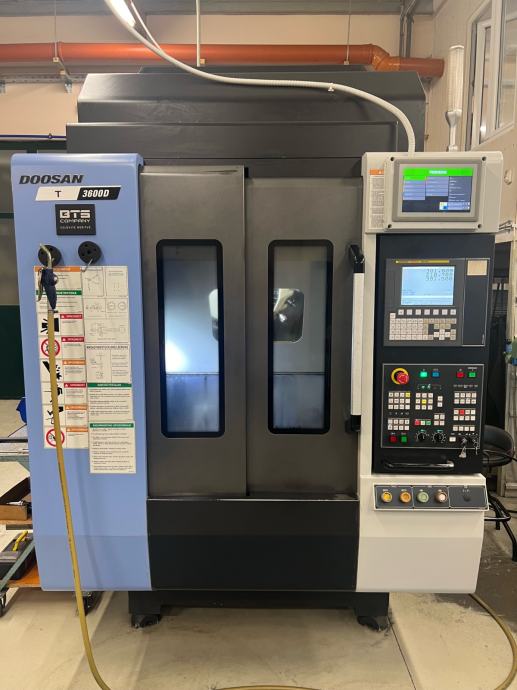

Doosan T 3600D CNC Tapping Center – Year 2016
Doosan T 3600 D CNC Vertical Machining Center

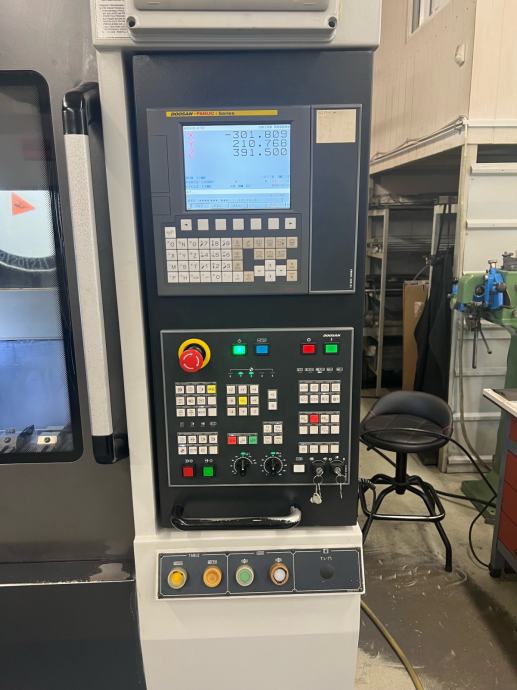

Fanuc control unit
Machine is in very good condition
Still in operation, can be seen, tried, tested.

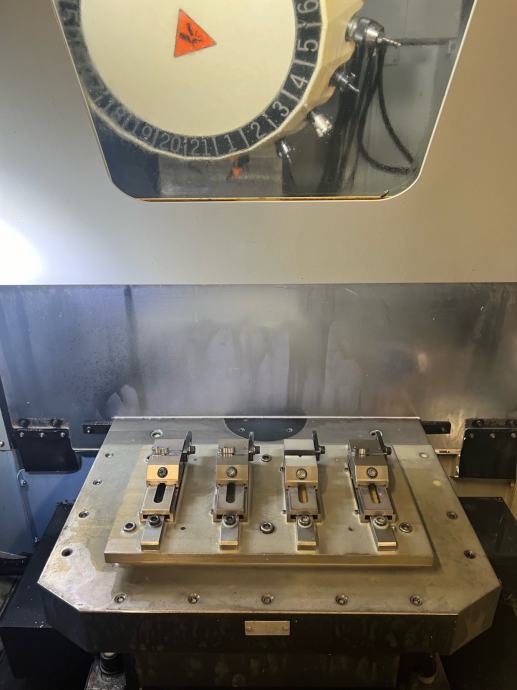

The machine has two pallets (double turntable).
Number of working hours: 3100h
Technical specifications:
X-axis travel distance: 520 mm
Y-axis travel distance: 360 mm
Z-axis travel distance: 350 mm
Fast X-axis travel: 48 m/min
Y-axis rapid travel: 48 m/min
Z-axis rapid travel: 56 m/min
Max. Spindle speed: 12,000 rpm
Max. Spindle power: 13 kW
Table length: 650 mm
Table width: 375 mm
Max. table capacity: 200 kg

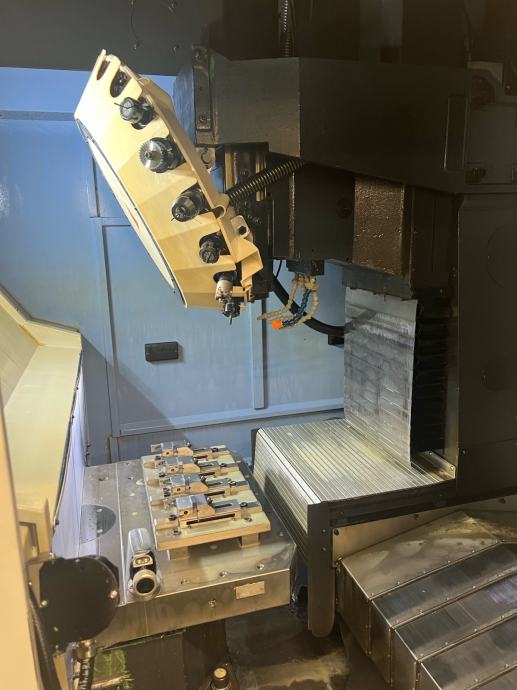

Number of tool stations: 21
Tool acceptance: BT30
External dimensions:
Length: 3684 mm
Width: 1729 mm
Height: 2507 mm
Weight: 5,200 kg
