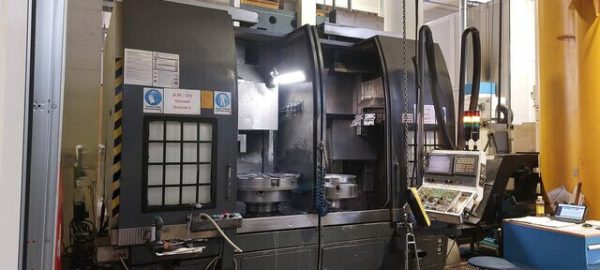

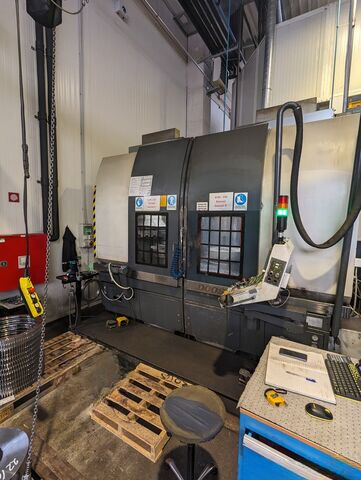

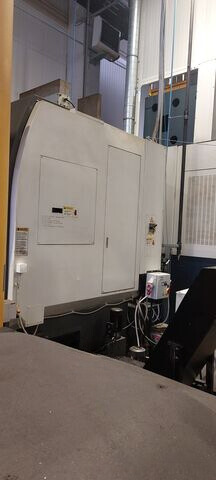

DOOSAN V740T CNC Vertical Lathe Two Spindle – Year 2005

Contact us for price

Categories: ,

Description

DOOSAN V740T CNC Vertical Lathe Two Spindle – Year 2005
Manufacturer: DOOSAN
Model: V740T
Machine number: LVD1036
Year of construction: 2005
Condition: good (used)
Functionality: fully functional
turning diameter: 740 mm
spindle speed (max.): 2,000 rpm
travel distance X-axis: 380 mm
travel distance Z-axis: 760 mm
FANUC 18I TB

Main Technical Data
Maximum Swing Diameter: 800 mm
Maximum Turning Diameter: 740 mm
Maximum Turning Length: 760 mm
Axis Movements
X-Axis Travel: 380 mm
Z-Axis Travel: 760 mm
Motor Power
X-Axis Motor: AC servo, 3 kW
Z-Axis Motor: AC servo, 7 kW
Rapid Traverse Rates
X-Axis: 20 m/min
Z-Axis: 20 m/min
Main Spindle
Spindle Type: ASA A2-11
Front Bearing Diameter: 160 mm
Max Spindle Speed: 2000 RPM
Spindle Motor Power: AC 30 kW / 37 kW (presumably peak power)
Maximum Torque: 2434 Nm
Turret
Tool Stations: 12×2 (double turret, each with 12 stations)
Tool Size: 25×25 mm, Ø 40/60 mm
Boring Tool Size: Ø 50 mm
Tool Change Time: 0.43 s
Tool Holders
External Turning Holders: 4x(HO10-25RL)
Face Turning Holders: 2x(HF10-25RL)
Internal Turning Holders: 4x(HB10-40N) + 2x (HB10-50N)
Reduction Sleeves: 2 sets (BS 40 -10, -12, -16, -20, -25)

weight of machine : 19.000kg
LxWxH : 3700 x 29500 x 3370mm

This advanced CNC lathe machine is designed for precision and efficiency in industrial machining.
It features a maximum swing diameter of 800 mm, with turning capabilities up to 740 mm in diameter and 760 mm in length.
