Description
| X axis | 6500 mm |
|---|---|
| Y axis | 3600 mm |
| Z axis | 1400 mm |
| CNC | Yes |
| Table length | 6000 mm |
| Table width | 3000 mm |
| Max load on table | 12000 kg |
| Type of CNC | Sinumerik 840D |
| Spindle taper | SK40 |
| Max. spindle speed | 24000 rpm |

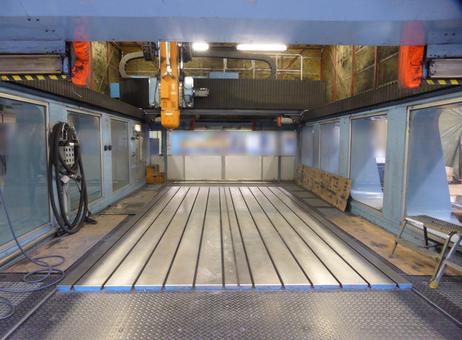

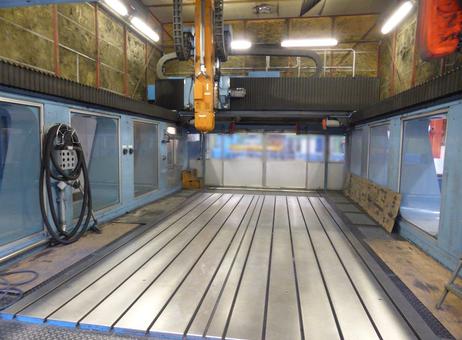

5-axis CNC milling machine of the Gantry type
DYE FP-PM-N / C-5
Year of production 1992 – renovation in 2011.
Siemens Sinumerik 840D control
Distance between columns 4500 mm
Number of tables 2
Table size 6000 x 3000 mm (each)

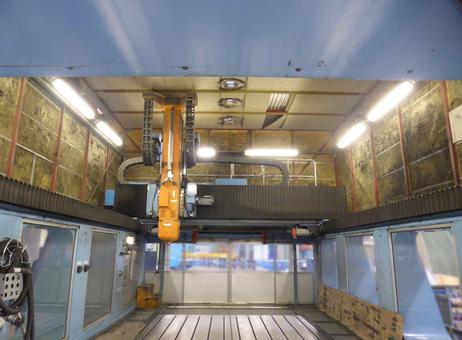

2-axis NC milling head
C axis +/- 200.5 °
A axis +/- 102 °
Rides
X axis 6500mm
Y axis 3600 mm
Z axis 1400 mm
Spindle rotation. 24,000 rpm
Spindle taper SK 40
Tool magazine 12 positions
