Description
| Metal length | 3000 mm |
|---|---|
| Metal width | 1500 mm |
| Nbr of heads | 1 |
| Type of source | Gas + Plasma |
| Source model | Hypertherm Hy Performance HPR130XD |
| CNC | Yes |

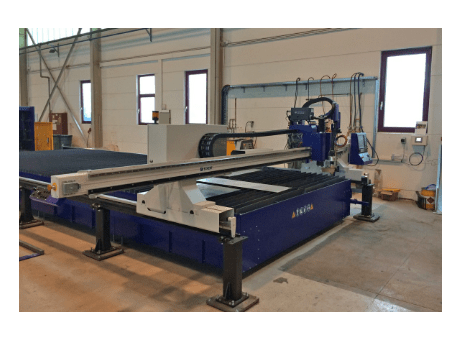

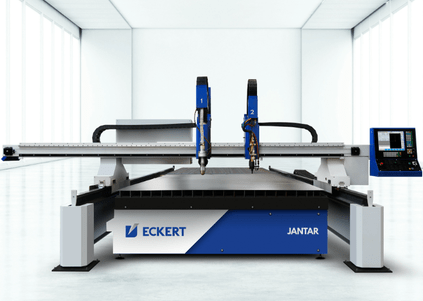

Plasma cutter ECKERT JANTAR portal 1500×3000 + rotator 3000
Year of Production: 2019,
Launch year: 2020
The cutter was started, it worked only for testing purposes.
Due to the change in the company’s profile, the equipment was dismantled in mid-2020.
Technical data of the cutting machine:
– CNC controller: ECS 872
– ESR 300 pipe cutting system with two supports,
– rotator for pipes and profiles
– laser pointer,
– a set of reducers and filters
– Eckert CAD / CAM 2D computer program, single-seat license,
– Lantex Flex3D tubes computer program, single-user license,
– HD3000 plasma torch support with plasma arc measurement,
– the possibility of plasma routing
– sectional exhaust system with fan WOV-1 5 500 m3 / h,
– Hypertherm Hy Performance HPR130XD plasma aggregate,
– extraction table Jantar J100 A / B, 1500 mm wide
– technical and operational documentation,
Drives
AC servo
Cutting widths available
1,500, 2,000, 2,500, 3,000 mm
Working lengths available
from 1.500 mm
Positioning speed
25,000 mm / min
Cutting thickness up to 100 mm
Cut quality
PN-EN ISO 9013
Positioning accuracy
PN-EN 28206
Repetition accuracy
PN-EN 28206
Wiring diagrams
PN-EN 81346
Security module
PN-EN 13850
Jantar – Basic information
Work table height
740-760 mm
Ambient temperature
+ 5 ° C to 45 ° C
Relative air humidity
max. 90% – no condensation
