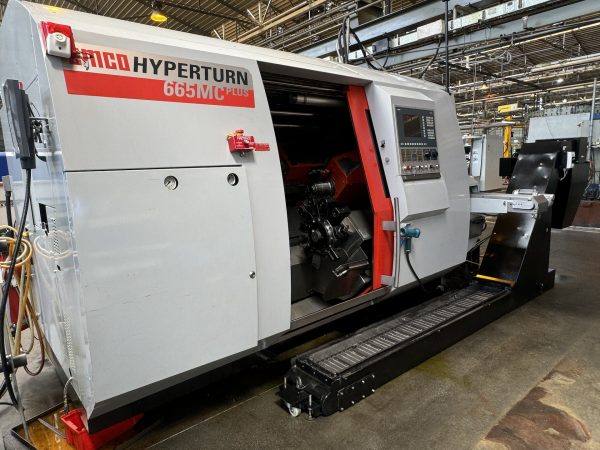

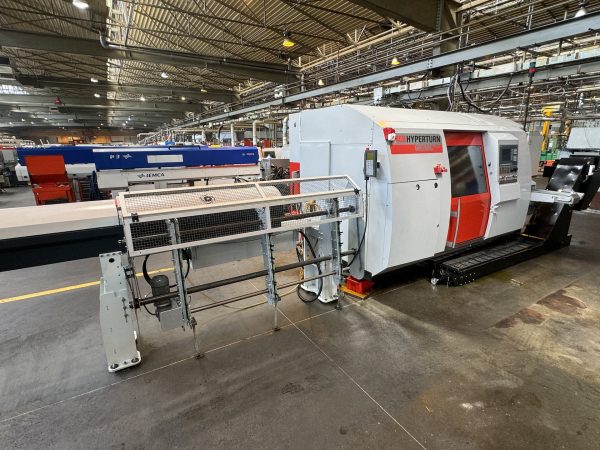

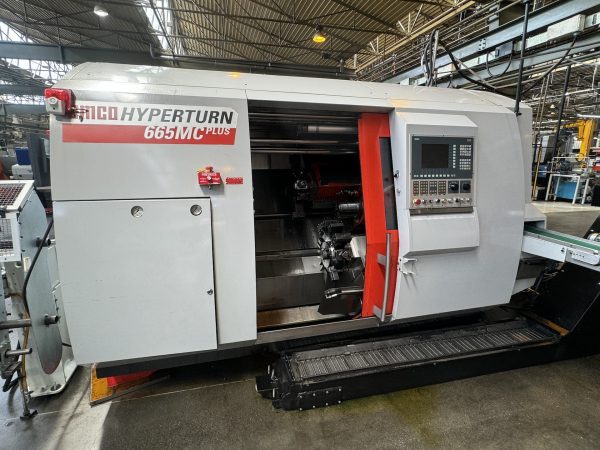

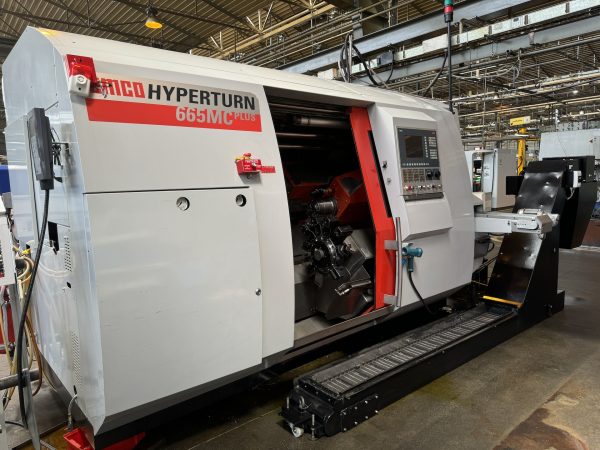

EMCO HYPERTURN 665MC Plus CNC Turning Center – Year 2005

Contact us for price

Description

EMCO HYPERTURN 665MC Plus CNC Turning Center – Year 2005

Turning length 744 mm
Turning Ø 430 mm
Ø above the bed 600 mm
Ø above transversing slide 500 mm
Length between centers 975 mm
Type of CNC SIEMENS 840D
Spindle taper A2 6”
Spindle bore 65 mm
Number of turrets 2
Number of tools on turret 24
Number of rotating tools 24
Turning speed 5000 rpm
Spindle motor power 29 kW
Tailstock no
Bar feeder yes
EMCO HYPERTURN 665MC
Length x width x height 3500.0 × 2550.0 × 2300.0
Weight 9500 kg
Worked hours 25217 hours
Hours under power 52581 hours

CNC twin-spindle twin-turret lathe
– Year of construction: 2005
– Power-on hours: 52581 h
– Spindle hours: 25217 h
– Max. turning diameter: 600 mm
– Turning diameter on carriage: 500 mm
– Distance between the two spindle noses: 975 mm
– Max. turning diameter 430 mm
– Part length: 744 mm
– Bar passage diameter: 65 mm
– X/X2 axis travel: 280/205 mm
– Z/Z2/Z3 axis travel: 900/750/750 mm
– Y axis travel: 100 (upper turret) +/-50 mm
– Main spindle speed: 0 – 5000 rpm – Torque: 250 Nm
– Main spindle power: 29 kW
– Counter-spindle speed: 0 – 7000 rpm – Max. torque: max. 130 Nm
– Counter-spindle power: 22 KW
– C axis: 0.001
– C-axis rapid feed: 1000 rpm

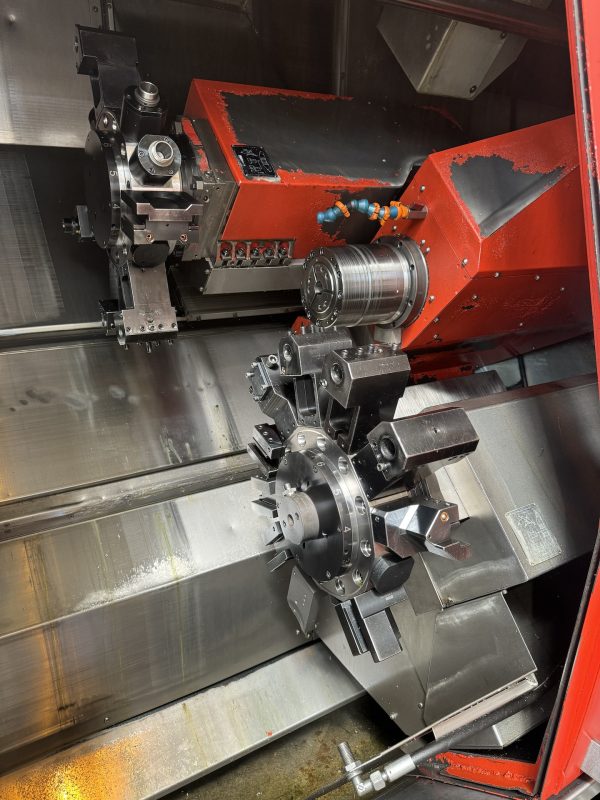

– Lower turret: 12 VDI40 stations
– Turret indexing time: 0.2 sec
– 12 driven tools speed range: 0 – 5000 (4500) rpm max. torque 25 Nm
– Motorized tool drive power: 6.7 kW
– Electrical power Connected load: 46 kVA

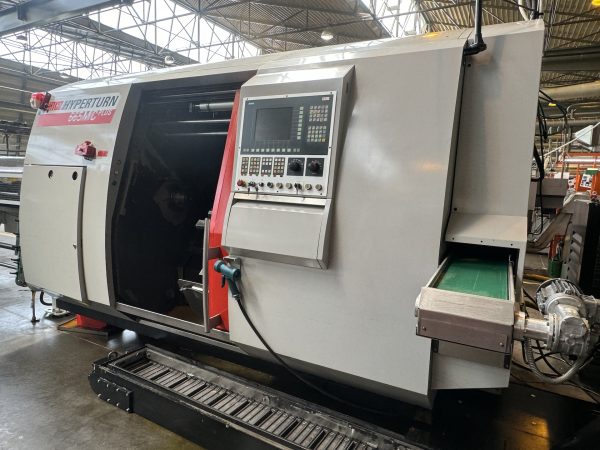

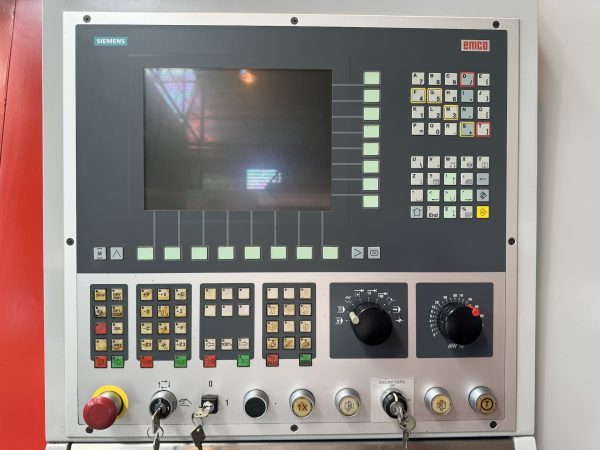

– CNC : SIEMENS 840D

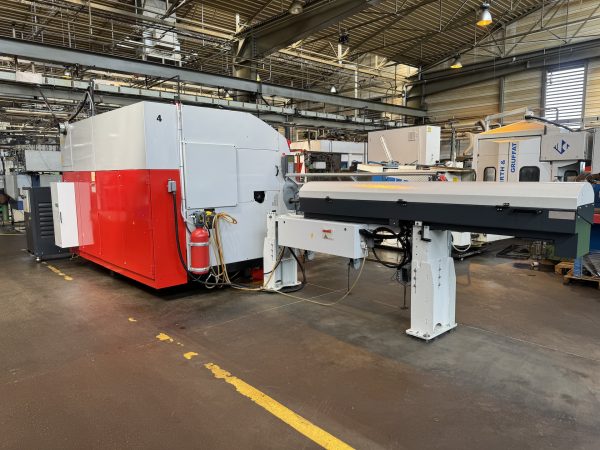

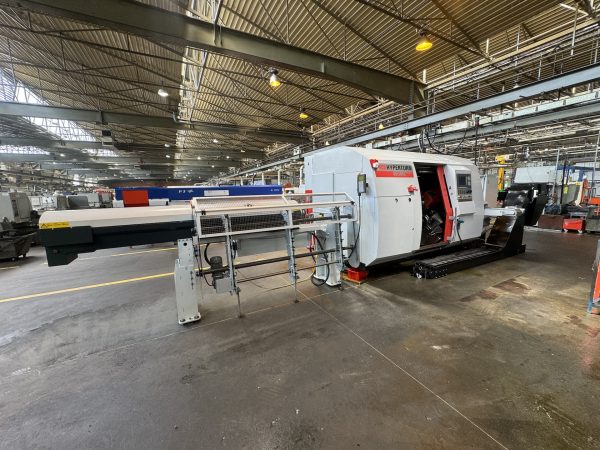

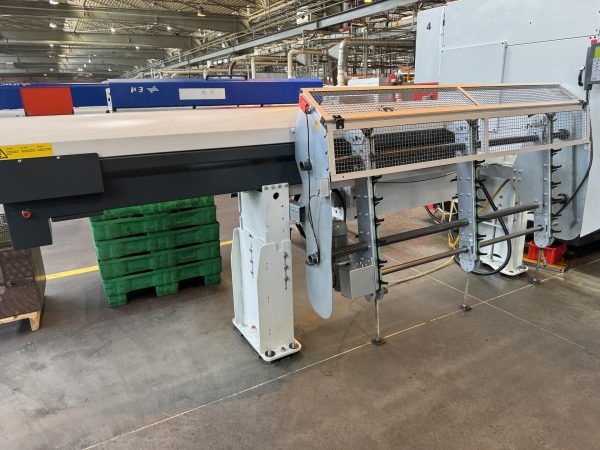

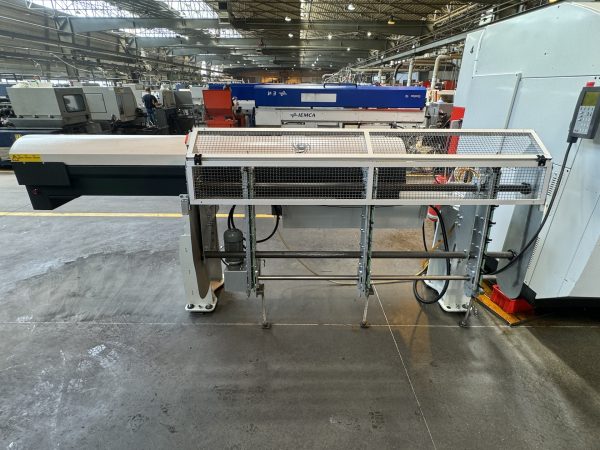

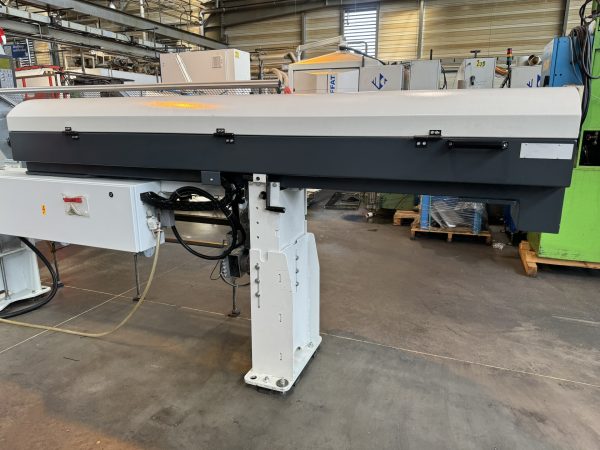

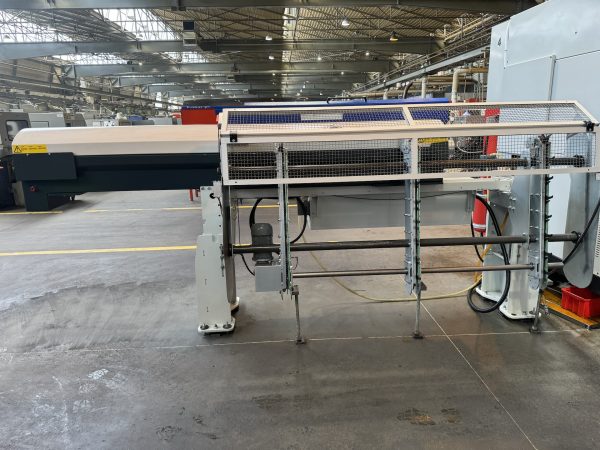

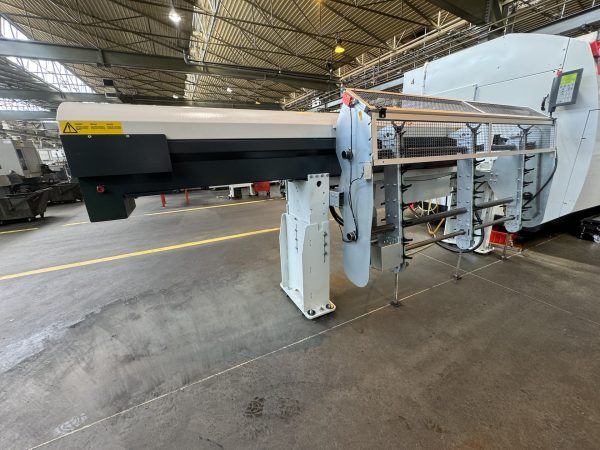

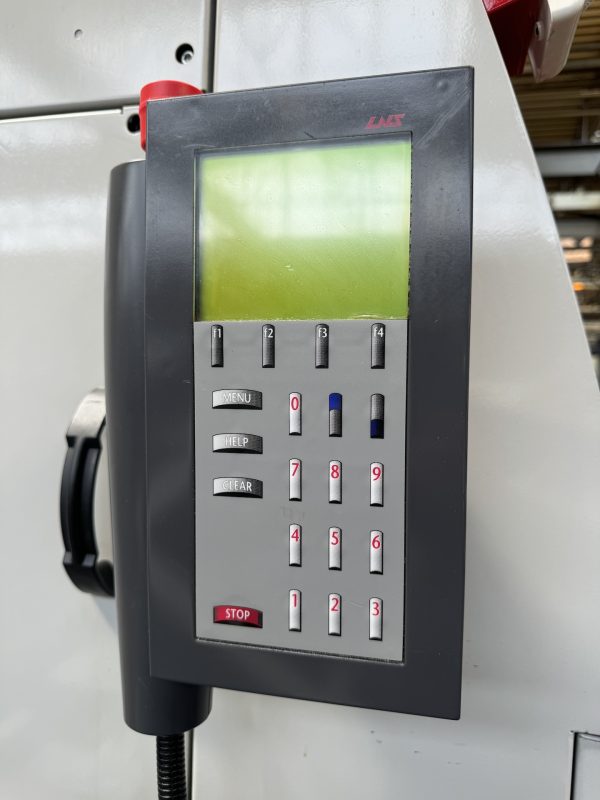

– Bar loading magazine: LNS MOVE

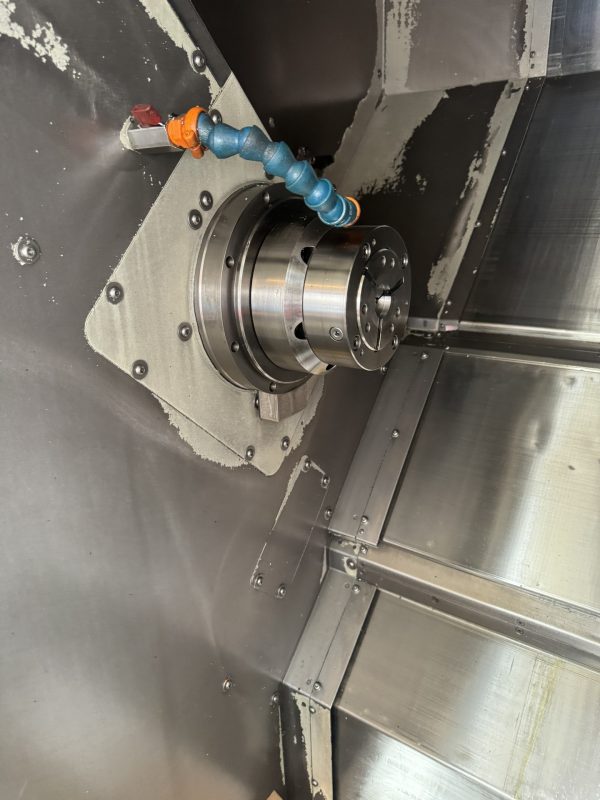

– 2 collet chucks
– Various tool holders, including motorized axial and radial ones
– Pneumatic parts reclaimer with conveyor belt
– Coolant system: 300 liters 2 pumps 2.2 kW
– Chip conveyor with high-pressure pumps

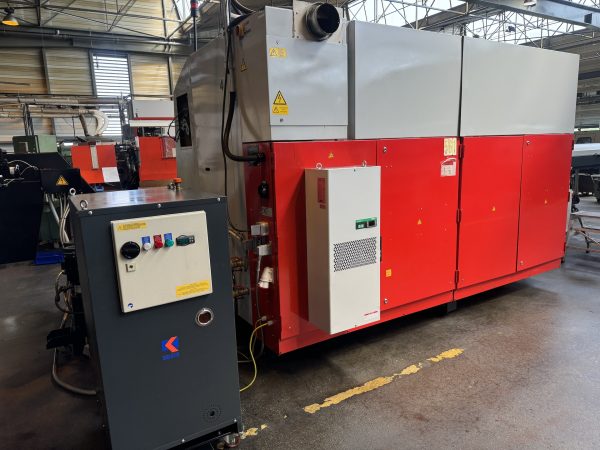

– Spindle oil cooler

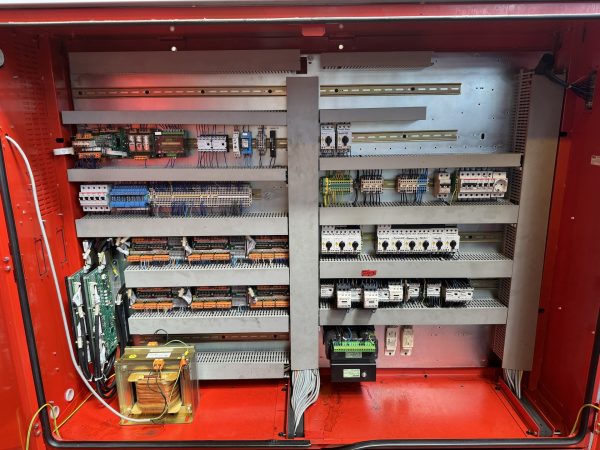

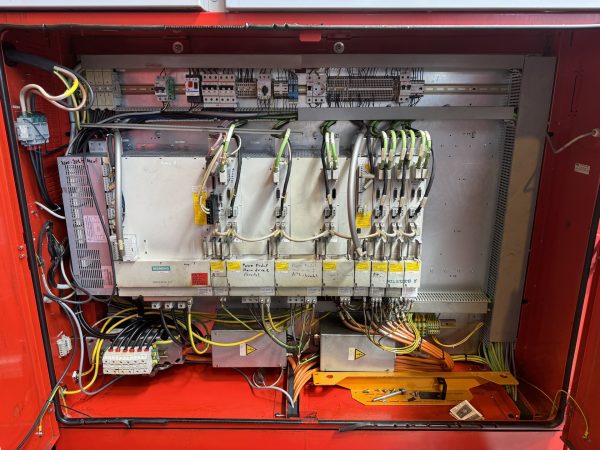

– Air-conditioned cabinet
– full documentation
– Machine dimensions: 3400x2550x2300 mm
– Total weight: approx. 9500 kg
– Very good condition
