Description

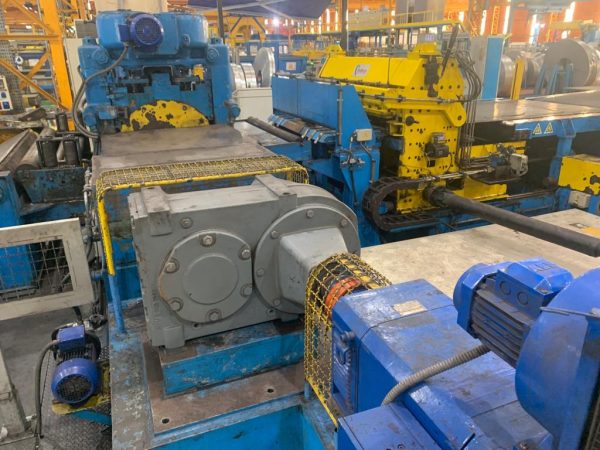

Esmaes / Indeco CTL 1510 x 3 Slitting line Cut to length line – Year 2008
| Type | Cut to length |
| Thickness of coil plate | 3 mm |
| Line speed | 40 m/min |
| Coil weight | 28000 kg |
| Internal diameter | 810 mm |
| External diameter | 1800 mm |
Material width 250 – 1.510 mm
Material thickness 0,6 – 3 mm
Coil inner diameter 508 / 610 / 750 / 810
Coil max. Outer diameter 1.800 mm
Coil max. weight 28 Tn
Re 280 Mpa
Rm 450 Mpa
Length 280 – 6.000 mm
Nr. of rolls 17 rolls
Diameter of leveller rolls 69 mm
Nr. of back up rolls 54
Diameter of back up rolls 130 mm
Shear Flying shear
Total installed power 150 Kw
Line speed according to thickness
Speed 40 m/min with thickness 0,6 mm
Speed 40 m/min with thickness 3 mm
includes:

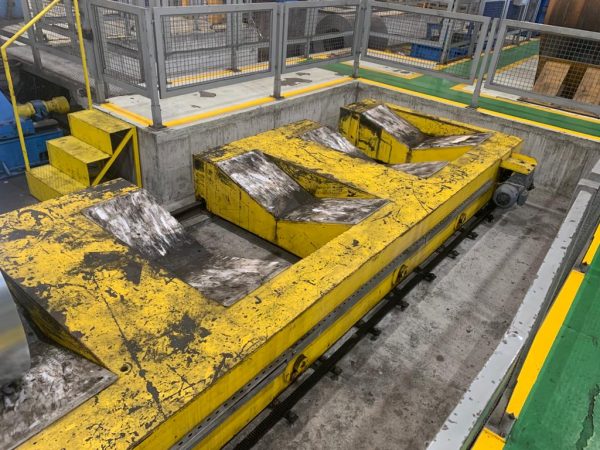

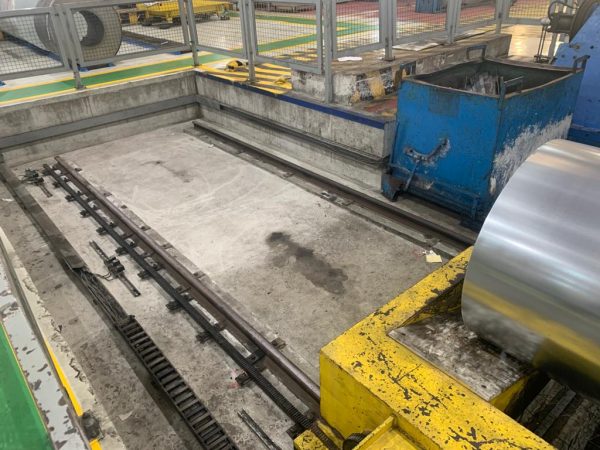

1 Buffer coil car
2 Entry coil car

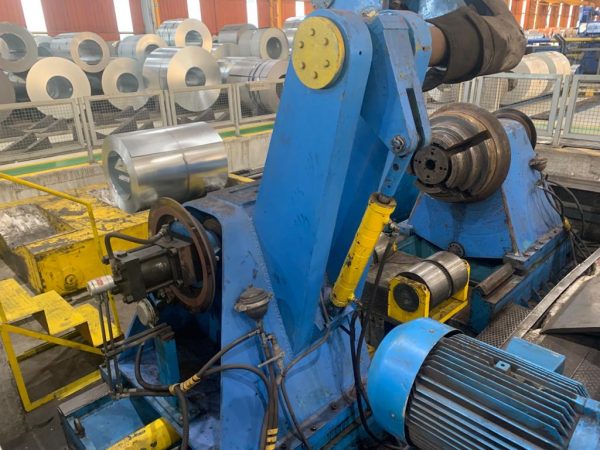

3 Double de-coiler with hold down arm and pneumatic brake

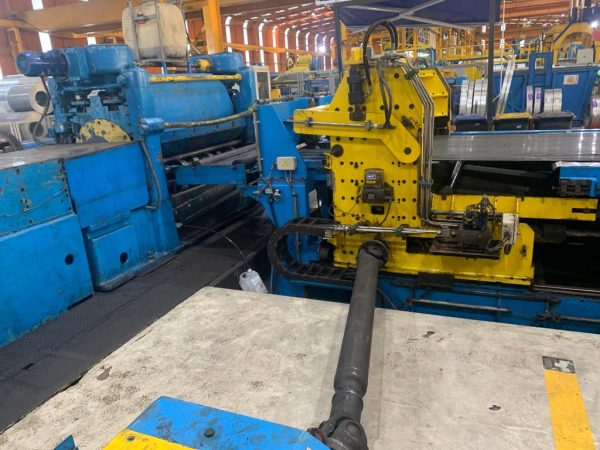

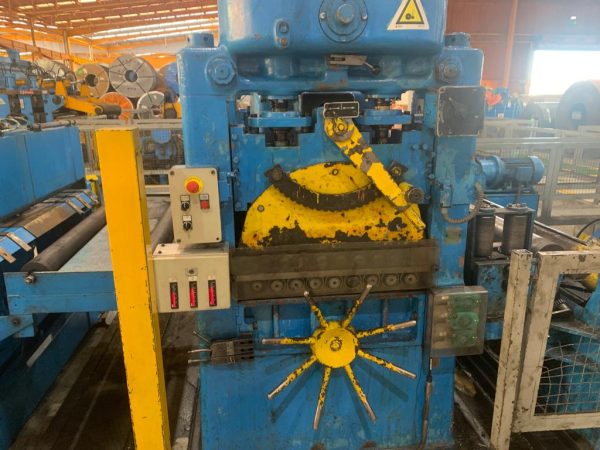

4 17 rolls leveller (diameter 69 mm) and backup rolls manually adjusted

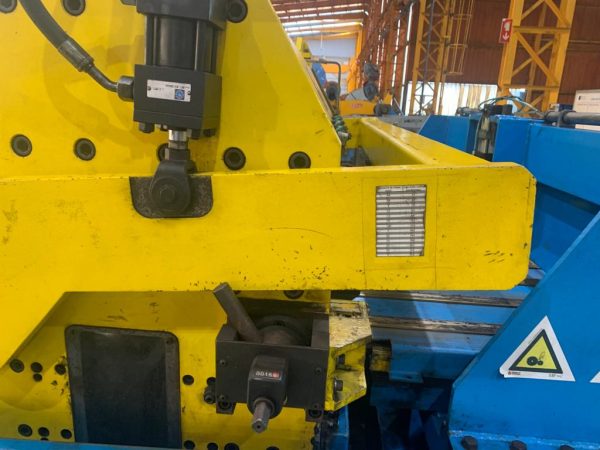

5 Flying saw with scrap output car

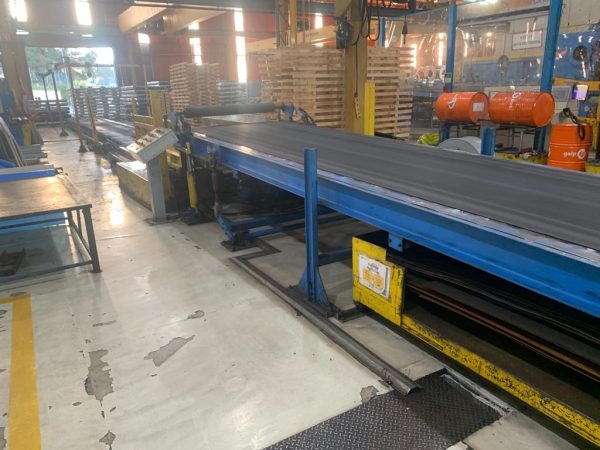

6 Out conveyor
7 Stacker
8 Roller output tables

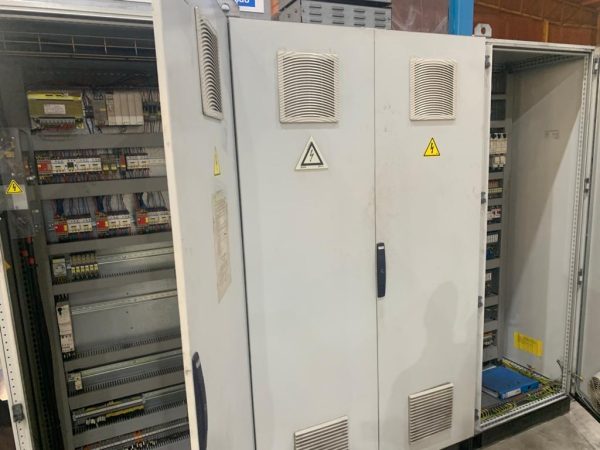

9 Electrical cabinets
Revamping:
Year 2008:
Flying saw
New stacker
New electrics and automation
New gearbox leveller
Year 2010: Expandable mandrels
Year 2011: New coil loading cars
