Description

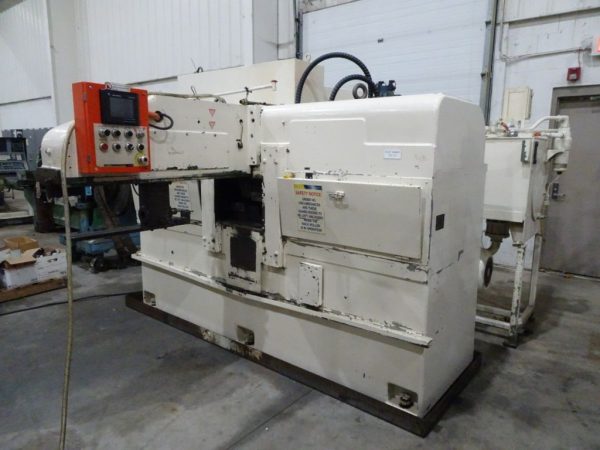

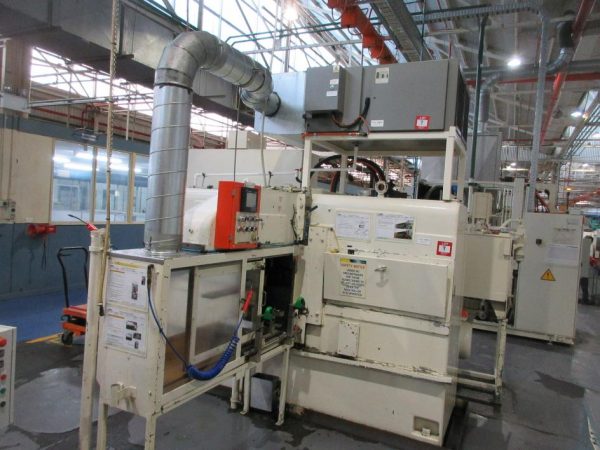

EX-CELL-O MICHIGAN Rotoflo 3237 Spline Rolling Machine – Year 1998
MICHIGAN Rotoflo Type 3237 Cold Forming Machine.

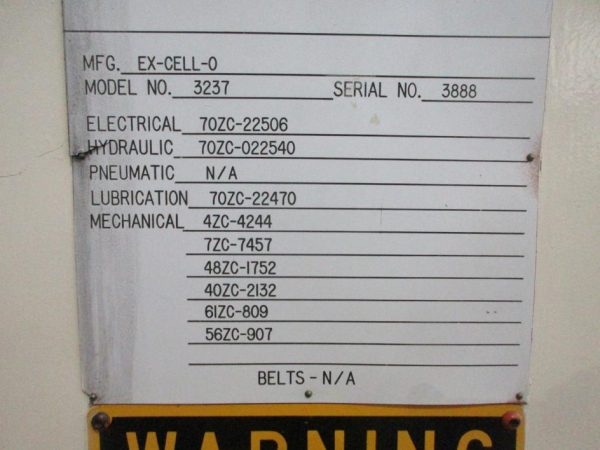

Original Serial Number: 4590 ExCello Serial Number 3888
New 1975 rebuilt by ExCello late 1990’s
Country of Origin: USA
For the coldforming of profiles for serrations (straight or angular),
spiral teeth, oil grooves, threads and knurls.
Capacity:
Maximum slide stroke 1065 mm
Maximum rack length 915 mm
Maximum profile diameter 50 mm
Maximum profile length 125 mm
Standard module range 0.3 to 1.25
Motor size 15 kW
Hydraulic tank capacity 1000 l
Overall floorspace width of machine 5014 mm
Width of machine 2768 mm
Depth with outboard support 4165 mm
Height 2000 mm
Approximate weight of machine 11,700 kgs
Complete with: Hydraulically operated outer support assembly to accommodate part length universal headstock, Universal rack holding feature.
