Description
FARO® 8-Axis QuantumM FaroArm® / ScanArm V2 Excellent Price/Performance Ratio for High-End Factory Inspection
Year 2020

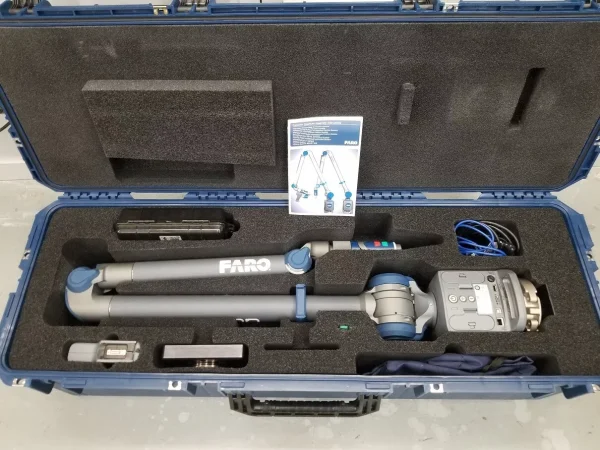

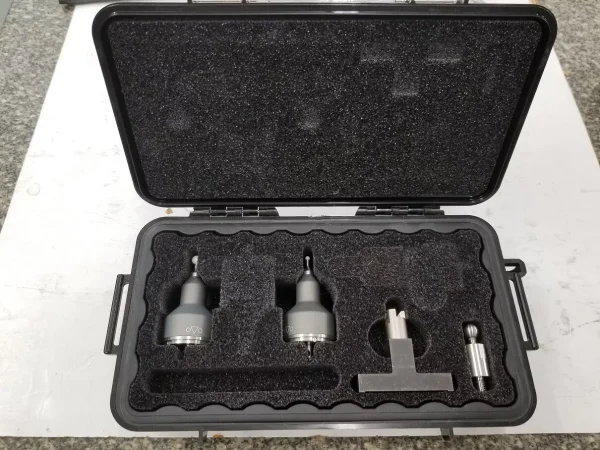

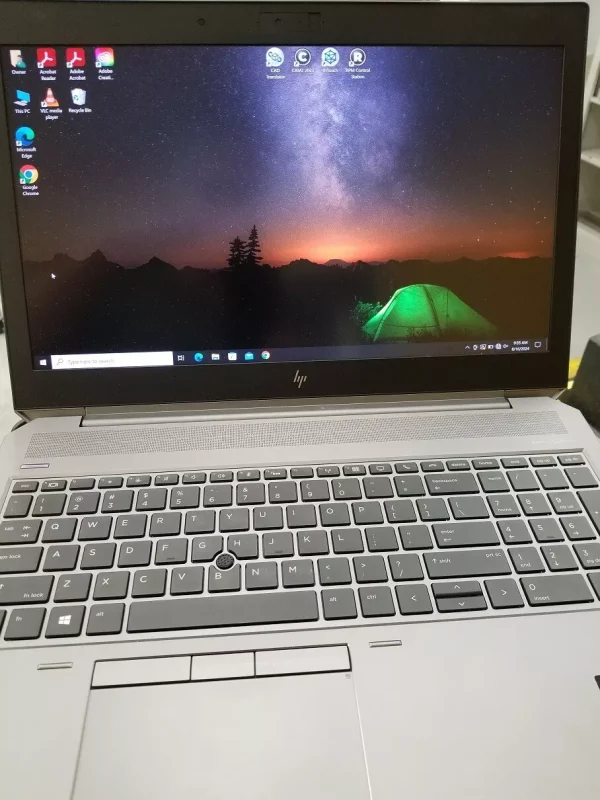

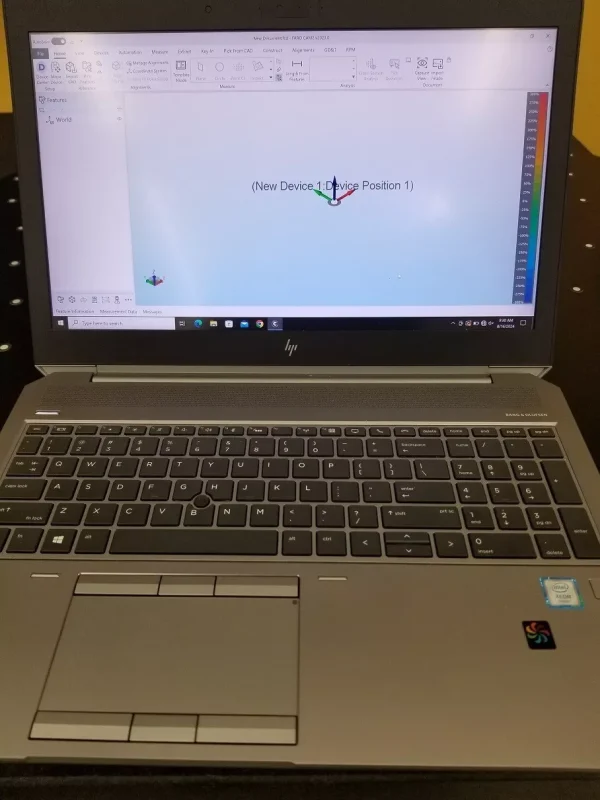

FARO® 8-Axis QuantumS FaroArm® V2, FaroBlu Laser Scanner,8 Axis Rotary Platform, Vaccuum Base, Hard Mount Base, Dedicated HP Laptop with updated 2023 CAM2 Software, 3mm and 6mm probe heads, Calibration Hardware, All manuals and instructions, Soft Cover for Faro Arm.

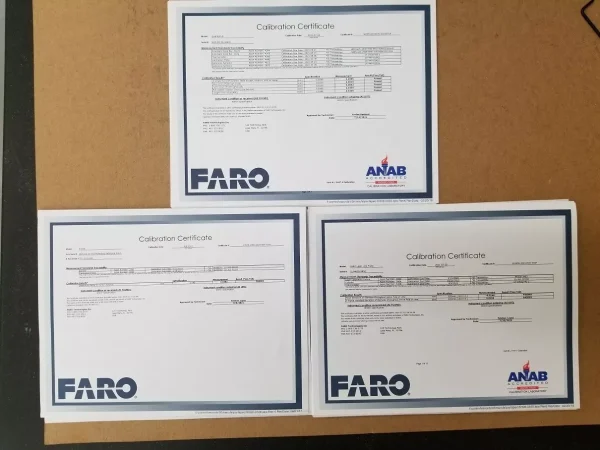

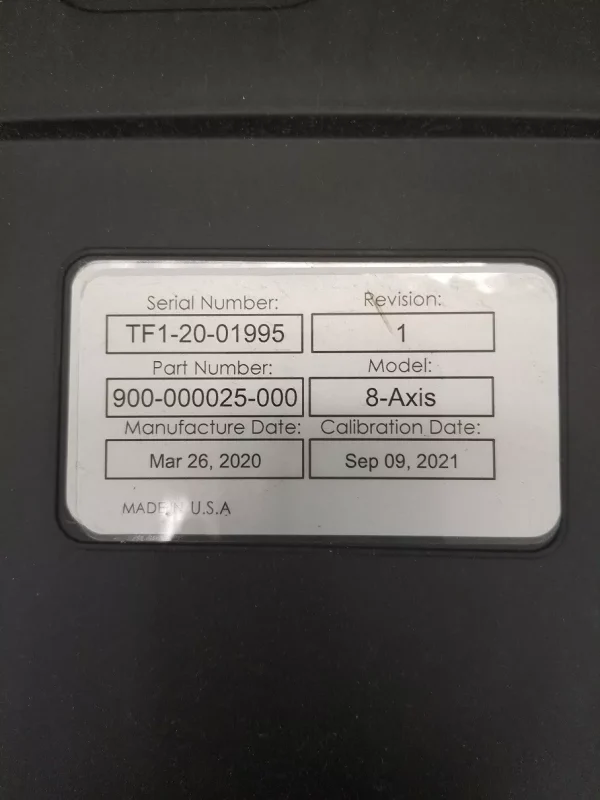

Items were purchased new in 2020 and used 4 times. Items have not been used since 2021 calibration and stored in factory hard cases in an environmentally controlled room.
The FARO® 8-Axis QuantumS FaroArm® V2 offers a comprehensive, contact/non contact metrology solution, allowing users to significantly speed up and simplify their measurement and scanning activities.The system provides rapid data capture, superior resolution, and high accuracy.It is ideal for inspection and quality control, offering a perfect solution for point cloud comparison with CAD, rapid prototyping, reverse engineering and 3D modeling of free-form surfaces.
The FARO 8-Axis QuantumS ScanArm V2 combines a QuantumSFaroArm V2, a FAROBlu® or PRIZM™ Laser Line Probe, and an 8-Axis ScanningPlatform; making it the first and only eight-axis portable metrology solution available in the marketplace!

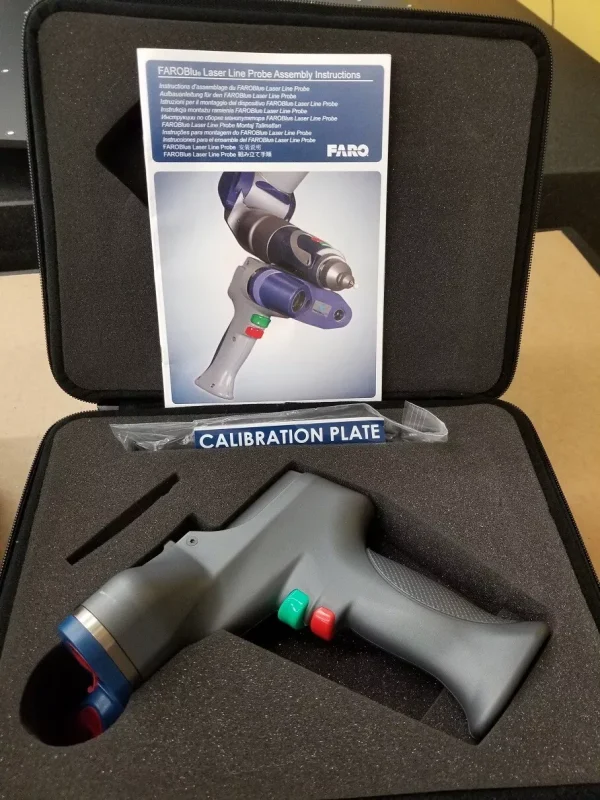

The FAROBlu LLP uses best-in-class blue laser technology, providing the highest accuracy point cloud data with unparalleled non-contact measurement capabilities at high speed.
The FAROBlu LLP: Leverages blue laser technology which has a shorter wavelength than red or green lasers and delivers improved scanning results with higher fidelity. This means smaller details are captured, along with a vast improvement of the scan-ability of dark and shiny surfaces.When the highest precision is a must, only the FAROBlu will do.
Benefits Fast Scanning Speed: The extra-wide scan stripe and fast frame rate boost productivity by increasing coverage and reducing scanning time. Combined with the 8-Axis rotation of objects in real-time, the scanning process itself is even faster.
High-Definition Data: Intricate components can be captured in fine detail because of the dense point data on each scan line.
Scan Challenging Materials: Seamlessly scan across diverse surface materials regardless of contrast, reflectivity or part complexity without any special coatings or target placement.

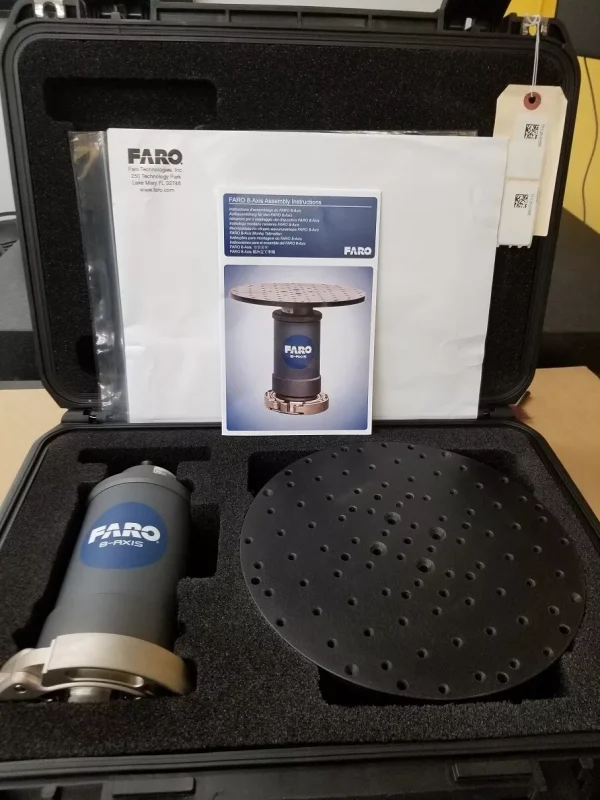

8-Axis Rotary Table Features: An industry exclusive, the integrated 8-Axis rotary scanning platform decreases scan time up to 40%, while maintaining accuracy. Rotate the part to you, with the ultimate CMM system available today.

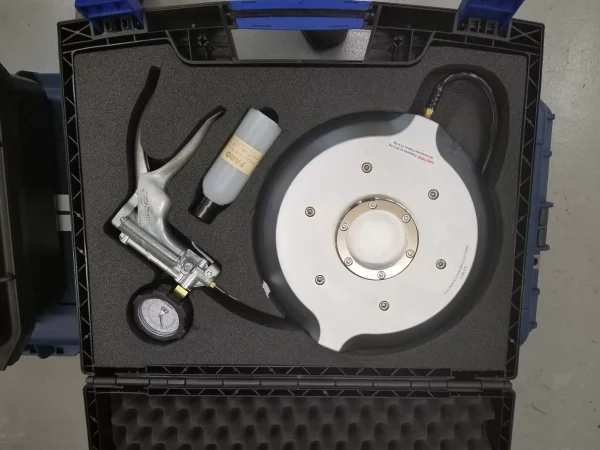

Vacuum Base Features: A versatile mounting base that allows you to instantly move the FARO ARM to any hard, flat surface.

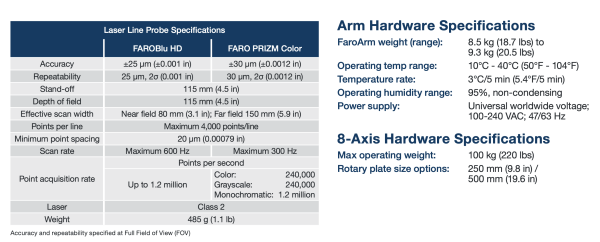

Manufacturer Catalogue Information about FARO® 8-Axis QuantumM FaroArm® / ScanArm V2 Excellent Price/Performance Ratio for High-End Factory Inspection :
The FARO® 8-Axis QuantumM FaroArm® V2 offers a comprehensive, contact/noncontact metrology solution, allowing users to significantly speed up and simplify their
measurement and scanning activities. The system provides rapid data capture, superior
resolution and high accuracy. It is ideal for inspection and quality control, offering
a perfect solution for point cloud comparison with CAD, rapid prototyping, reverse
engineering and 3D modeling of free-form surfaces. The FARO 8-Axis QuantumM
ScanArm V2 combines a QuantumM FaroArm V2, a FAROBlu® or PRIZM™ Laser Line
Probe, and an 8-Axis Scanning Platform; making it the first and only eight-axis portable
metrology solution available in the marketplace!
The FAROBlu LLP uses best-in-class blue laser technology, providing the highest accuracy
point cloud data with unparalleled non-contact measurement capabilities at high speed.
The FARO PRIZM LLP represents a great value, utilizing green laser technology to deliver
high fidelity color scanning and allows users to view, inspect and manipulate detail-rich,
true color point clouds of parts or assemblies.
Both the FAROBlu and PRIZM, Quantum ScanArms, are certified according to ISO 10360-8
for non-contact CMMs. FARO was the first portable measurement arm manu
FAROBlu and PRIZM Features
Blue and Green Laser
The FAROBlu LLP leverages blue laser technology which has a
shorter wavelength than red or green lasers delivers improved
scanning results with higher fidelity. This means smaller details
are captured, along with a vast improvement of the scan-ability
of dark and shiny surfaces. When the highest precision is a
must, only the FAROBlu will do.
The PRIZM LLP takes advantage of green laser technology. This
wavelength is superior to red lasers by producing less speckle
and resulting in greater detail. Green lasers are best suited to
provide visual color definition, delivering full-spectrum color
scanning capabilities for high-resolution color point cloud data
capture and analysis. Additionally, users can switch to grayscale
or monochromatic modes, which provide options for faster
scanning rates. The PRIZM offers a great balance of speed and
accuracy, with the added benefit of color scanning.
Laser Line Width
The FAROBlu and PRIZM LLPs feature a laser line width of
150mm. The extensive line width scans a larger area, delivering
fast and efficient scanning.
Advanced Sensor
he FAROBlu and PRIZM LLP cameras use the most advanced
CMOS technology to deliver incredibly fast frame rates (the
number of times per second that the camera gathers new data on
the part being scanned).
Ergonomics
Designed with ergonomics in mind, our LLPs are aligned with
natural wrist position in mind. The natural position of the wrist
is similar to the way you hold a coffee mug or hammer, and the
intuitive scanning flow is left to right (not top to bottom). FARO has
designed the scanning beam to be vert
8-Axis Features
An industry exclusive, the integrated 8-Axis rotary scanning platform decreases scan time up to 40%, while maintaining accuracy.
Rotate the part to you, with the ultimate CMM system available today. The 8-Axis unit is available with all Quantum models.
Benefits
Fast Scanning Speed
The extra-wide scan stripe and fast frame rate boost productivity
by increasing coverage and reducing scanning time. Combined
with the 8-Axis rotation of objects in real-time, the scanning
process itself is even faster.
High-Definition Data
Intricate components can be captured in fine detail as a result of
dense point data on each scanline.
Scan Challenging Materials
Seamlessly scan across diverse surface materials regardless
of contrast, reflectivity or part complexity without any special
coatings or target placement.
Color Scanning
High resolution, 3D color scanning for vivid, real-world
visualization and CAD reconstruction of parts and assemblies
with the FARO PRIZM Laser Line Probe.
