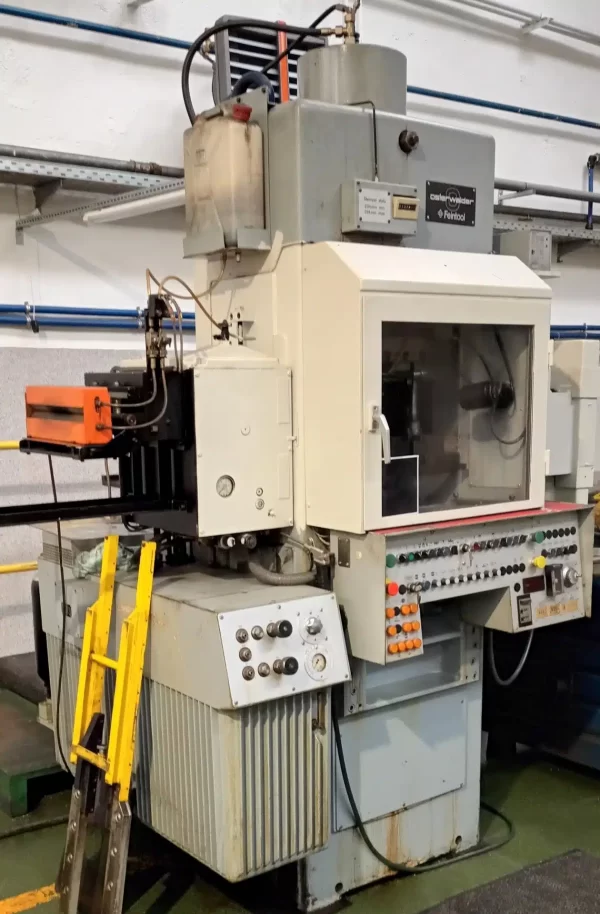

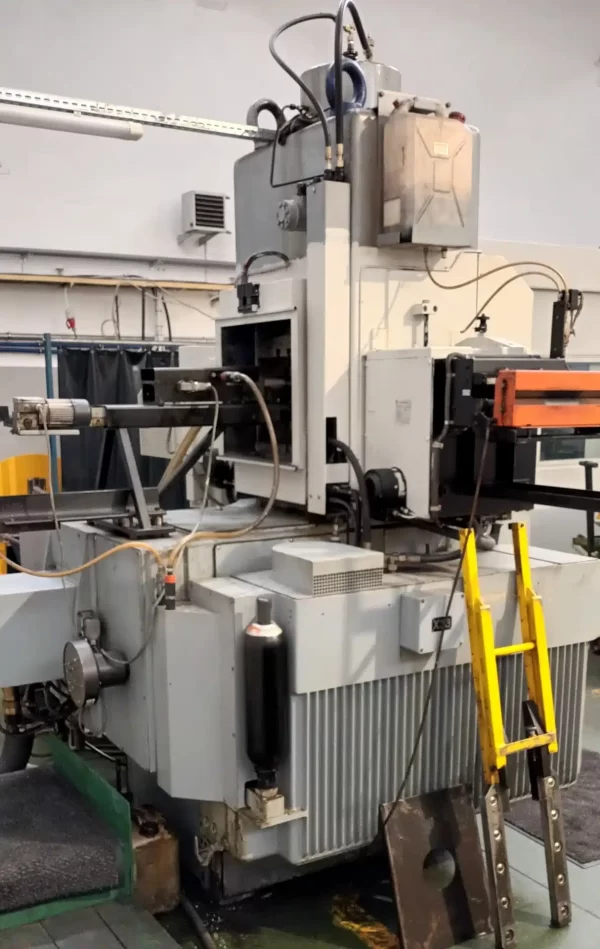

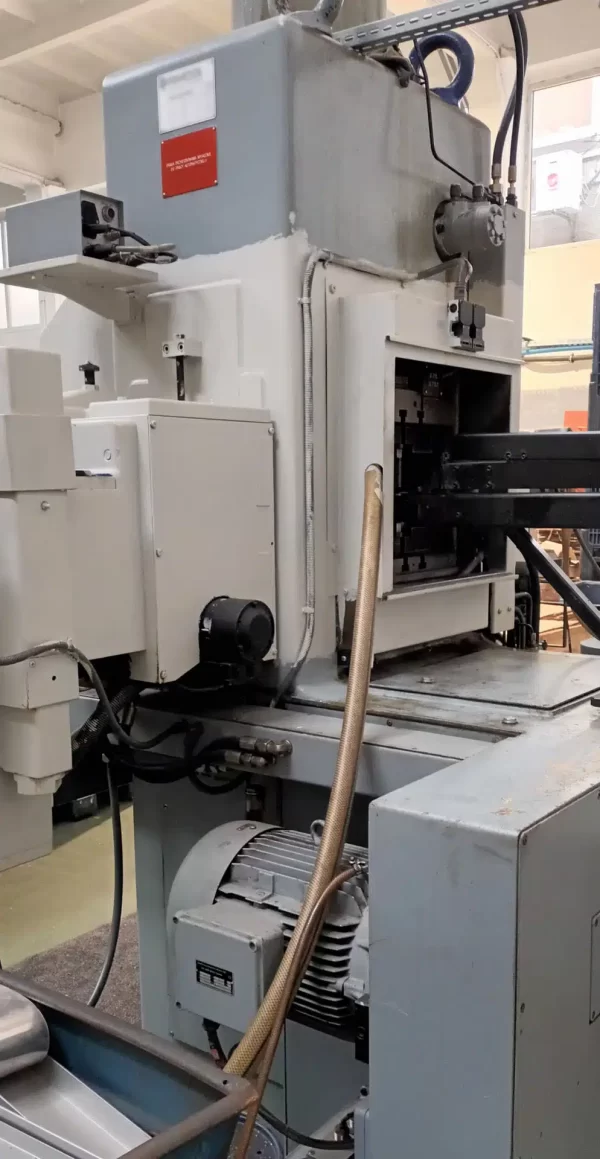

FEINTOOL GKP F 160 Fine Blanking Press 160 Ton
Technical data of the FEINTOOL GKP F 160 fine blanking press
maximum sheet metal thickness: 6 mm
maximum sheet metal width: 210 mm
total force including auxiliary functions: 160 t
shearing force: 100 t
hydraulic counterweight force (upper table): 1-40 t
hydraulic force of ring jaw (lower table): 12-50 t
ejector force (pump pressure): 4-8 t
hydraulic shearing force: 7,5 t
pneumatic shearing force: 6,6 t
stroke of slider: 61 mm
maximum number of slider strokes: 72/min
minimum number of slider strokes: 18/min
motor power: 11 kW
pump power: 4 kW
air connection: 6 bar
dimensions (L x W x H): 2380 x 1870 x 2860 mm
weight of machine GKP F 160: 9000 kg
FEINTOOL GKP F 160 hydraulic press was built in Switzerland. The automatic fine blanking press combines several workpiece machining stages into one precise process and significantly saves time and effort. As a result of fine blanking, parts with a maximum thickness of 6 mm obtain a characteristic even surface and accurately defined edges that cannot be achieved with other machines.
The FEINTOOL GKP-F hydraulic punching press features a robust, stable construction and a total force of 160 tonnes. Offered with the machine a sheet metal feeder with a maximum thickness of 6 mm and a width of 210 mm allows for completely automatic machining. The automatic punching press underwent extensive modernisation in 1999. The total weight of the GKP-F 160 press is 9000 kg.
