Description

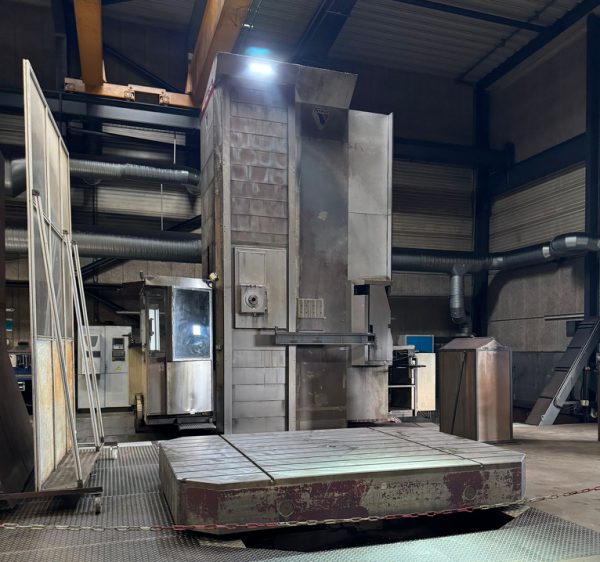

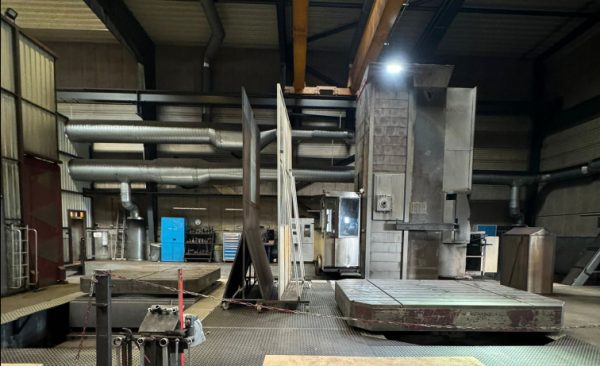

FERMAT WRF 160 CNC Floor Type Boring Machine 13.5 Meters – Year 2013

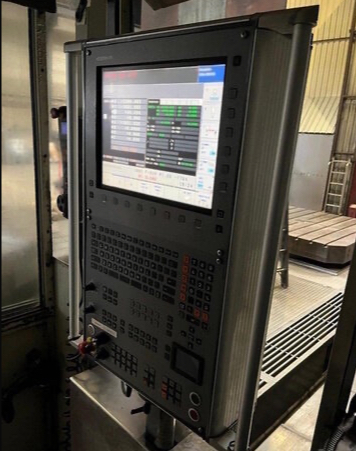

CNC HEIDENHEIN iTNC 530
X travel 13500 mm
Y travel 4100 mm
Z travel 1100 mm
Table length 2500 mm
Table width 2500 mm
Spindle taper ISO 50
Spindle diameter 160 mm
Max. spindle speed 2500 rpm
Spindle motor power 80 kW
Overhauled no

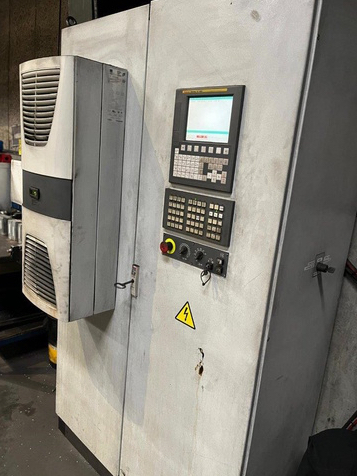

CNC HEIDENHEIN iTNC 530. Built 2013.
ATC 60, Pickup station 3 positions.
X= 13.500 mm.
Y= 4.100 mm.
Z, Ram= 1.100 mm.
W, Spindle= 1.000 mm.

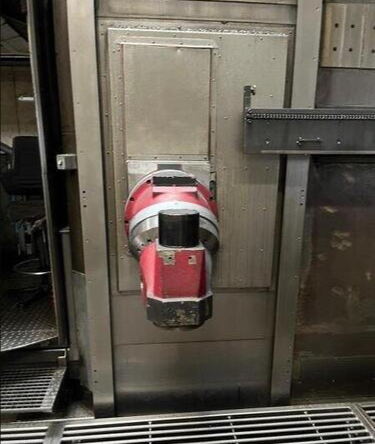

Automatic Rigth Angular Milling Head 2,5° steps.
Universal Micro positioning head UHAmi 30 kW
1. Rotary Table 2.500 x 2.500 mm, 60 Ton. Tilting 0-10°.
2. Rotary Table 2.500 x 3.500 mm, 40 Ton.

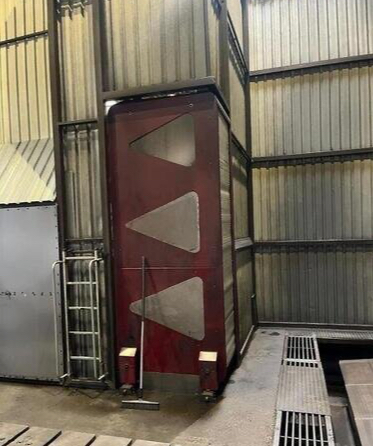

X Column travel 13.500 mm
Y Headstock vertical travel 4.100 mm
Z, Ram stroke 1.100 mm
W, spindle stroke 1.000 mm
W+Z 2.100 mm
Spindle diameter 160 mm
Spindle diameter ISO 50
Spindle speed 10 – 2.500 rpm
Spindle motor 60 / 80 kW
Ram square section 460 x 500 mm
Automatic tool changer 60 Tools
Coolant through spindle 30 Bars
Outside Coolant 4 Bars

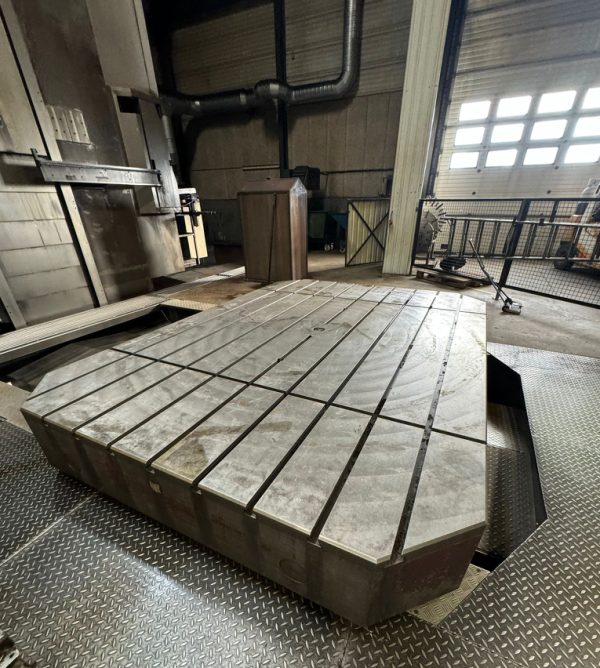

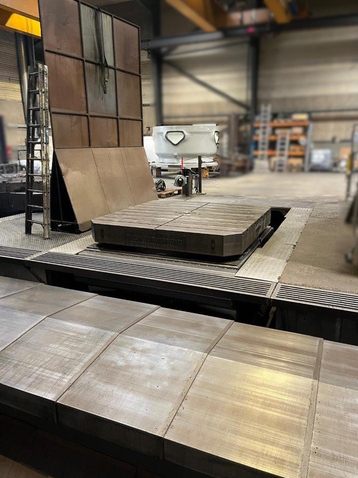

1. Rotary Table size 2.500 x 2.500 mm
Table load 60 ton
C-axes 360 000°
Q-axes, tilting 0-10°
Table travel, V 2.500 mm
2. Rotary Table size 2.500 x 3.500 mm
Table Load 40 Ton
C-axes 360 000°
Table travel, V 2.400 mm
