Description

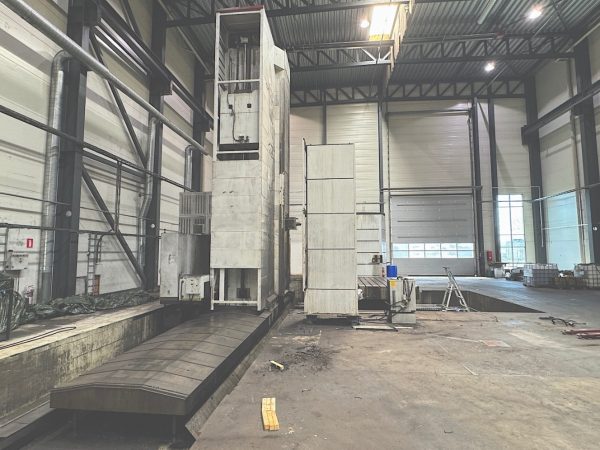

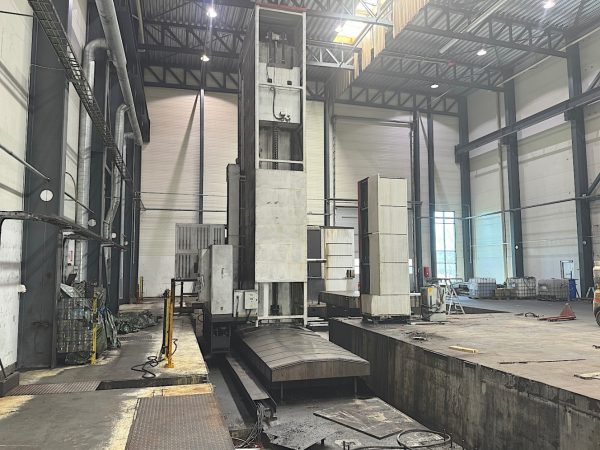

FERMAT WRF 160 CNC Floor Type Boring Machine 9 Meters – Year 2013
CNC HEIDENHEIN iTNC 530
X travel 8900 mm
Y travel 7300 mm
Z travel 1500 mm
Table length 4000 mm
Table width 3000 mm
Spindle taper ISO 50
Spindle diameter 160 mm
Max. spindle speed 2500 rpm
Spindle motor power 60 kW
Overhauled no

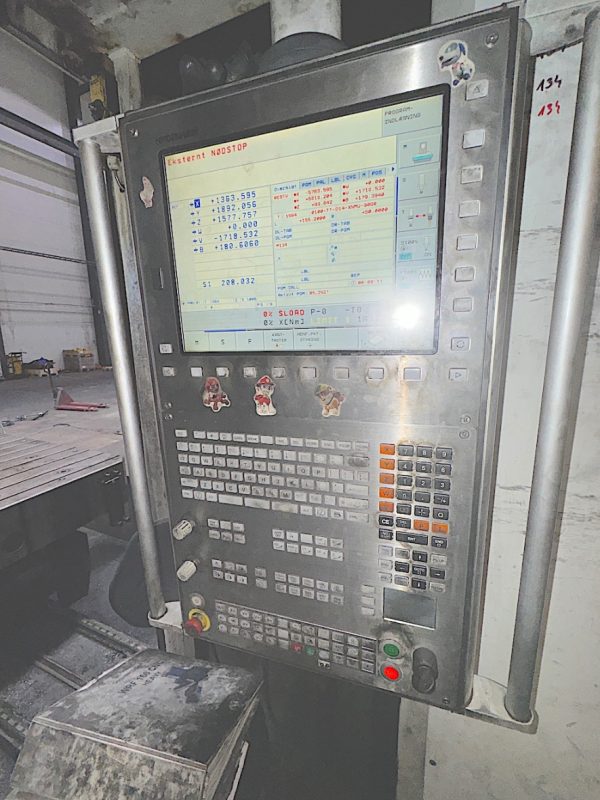

CNC HEIDENHEIN iTNC 530. Built 2013.
Robot ATC 90, Pickup station 4 positions.

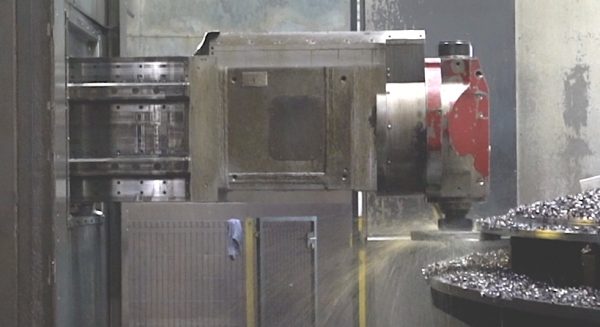

Universal Micro positioning head UHAmi 30 kW.
Right Angle head 60 kW.

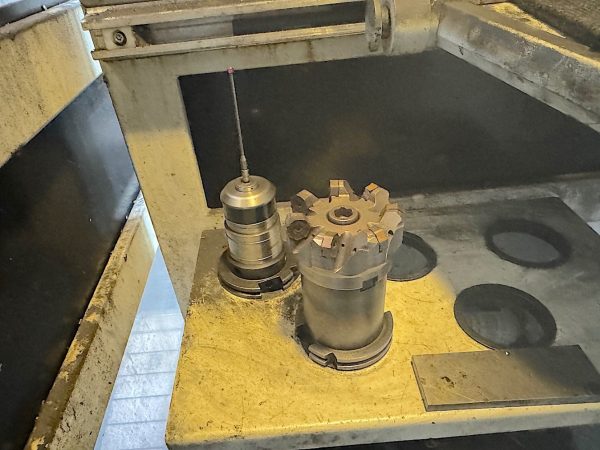

Hand Wheel HR 520, M&H Probe.
X= 8.900 mm.
Y= 7.300 mm.
Z, Ram= 1.500 mm.
W, Spindle= 1.000 mm.

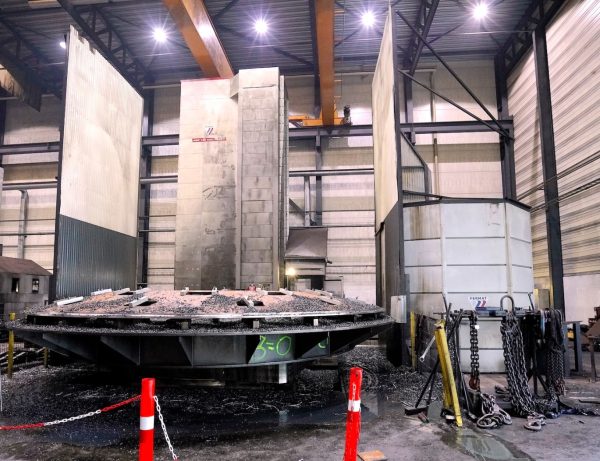

Rotary Table 3.000 x 4.000 mm, 80 Ton.

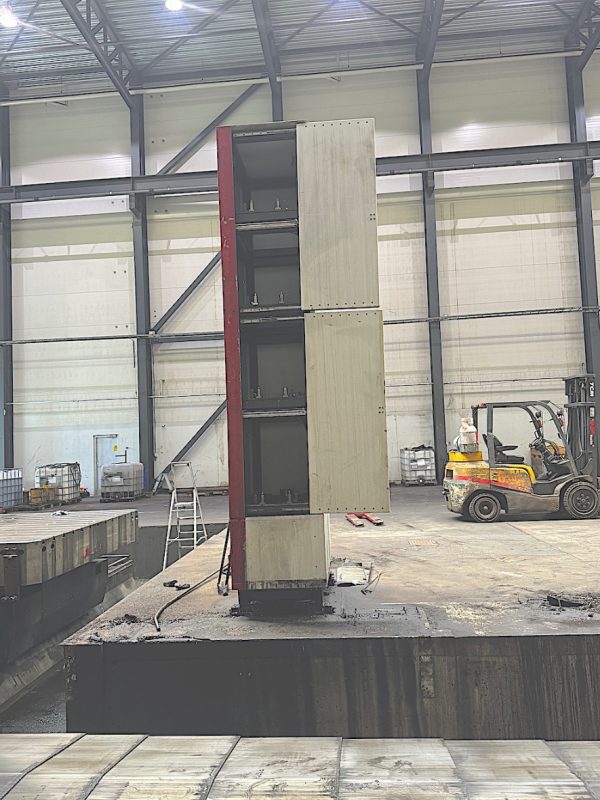

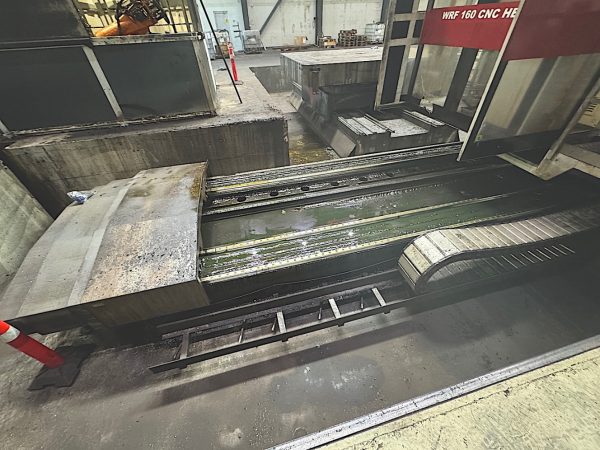

X Column travel 8.900 mm
Y Headstock vertical travel 7.300 mm
Z, Ram stroke 1.500 mm
W, spindle stroke 1.000 mm
W+Z 2.500 mm
Spindle diameter 160 mm
Spindle diameter ISO 50
Spindle speed 10 – 2.500 rpm
Spindle motor, 2 steps, ZF 60 kW

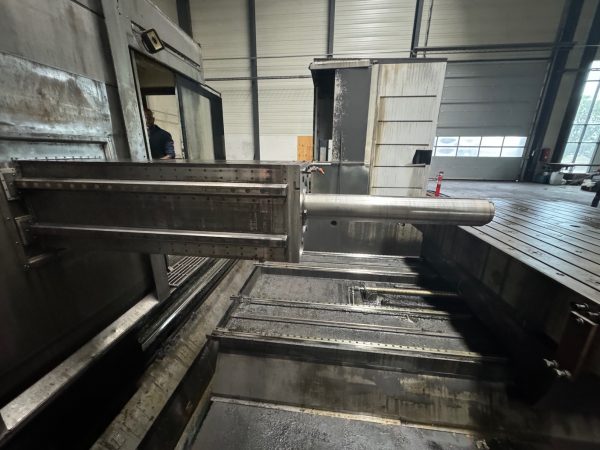

Ram square section 520 x 520 mm

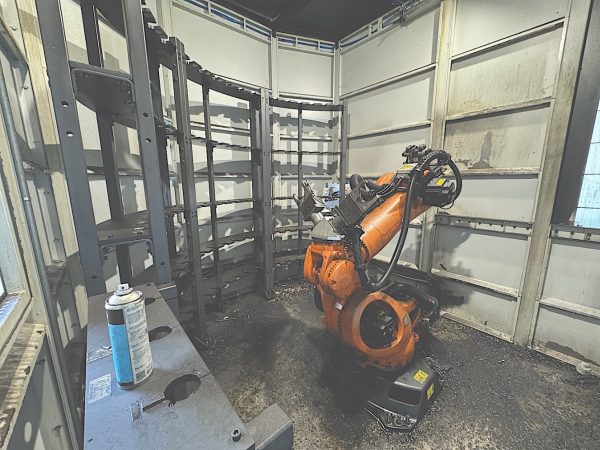

Automatic robot tool changer 90 Tools
Coolant through spindle 50 Bars
Outside Coolant 4 Bars
Rotary Table size 4.000 x 3.000 mm
Table load 80 ton
C-axes 360 000°
Table travel, V 3.000 mm
