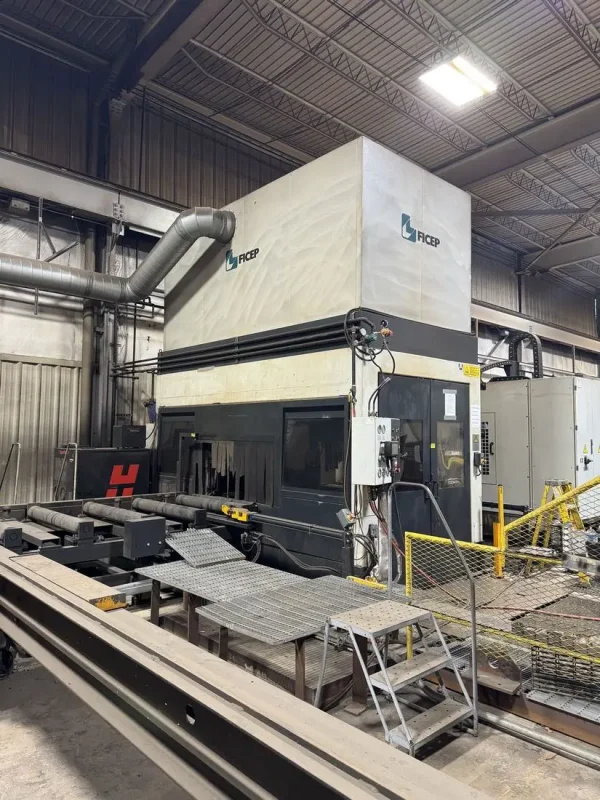

Ficep ENDEAVOUR 1204 DDRC CNC Drill & Band Sawing & Oxy-fuel Plasma Thermal Cutting System – Year 2017

Contact us for price

Description

Ficep ENDEAVOUR 1204 DDRC CNC Drill & Band Sawing & Oxy-fuel Plasma Thermal Cutting System – Year 2017

Year 2017
Make Ficep
Model 1204 DDRC
Ficep ENDEAVOUR 1204 DDRC CNC Drill & Band Sawing & Oxy-fuel Plasma Thermal Cutting System



Beam Depth Min 3-1/8” & Max 48”
Flange Height Min 3/8” & Max 24”
Spindle Speed 180 – 5,000 RPM
Passline 34″
Plasma Cutting System Carbon Steel (Mild Steel) / Max Thickness: 1” / Ratio Diameter/Thickness from 1:1 to 2:1
Note All Beams Complete with Longitudinal Copes on Both Heads Having a Max Length of 15-3/4” on the Lower Half Flanges
Additional Information Please See Photos for More Specs

Features

(15) HSK-A80 Connections for Tool-Change System (2) Additional Scribing Tools
Air Conditioner Units for Electrical Equipment Automatic Gas Control Panel
Automatic Loading Using Transfer Table with Catches Automatic Unloading Using the Transfer Table with Catches
Automation System for Sections/Pieces Loading and Unloading Camera Mounted on Material Gripper
Chip Conveyor for the Drilling Unit HPR260XD Plasma Cutting System with Automatic Torch Changer
HSK-A80 Toolholder Profile Survey Device with Laser Unit
Short Piece and Scrap Unloading Device Smoke Intake System for Robot
Tool Change System with (6) Positions Underside Scribing
