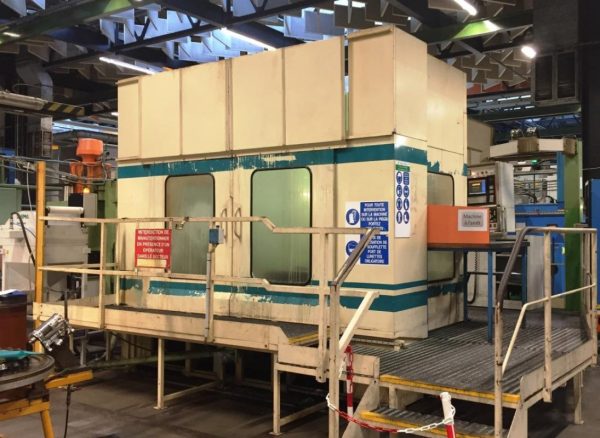

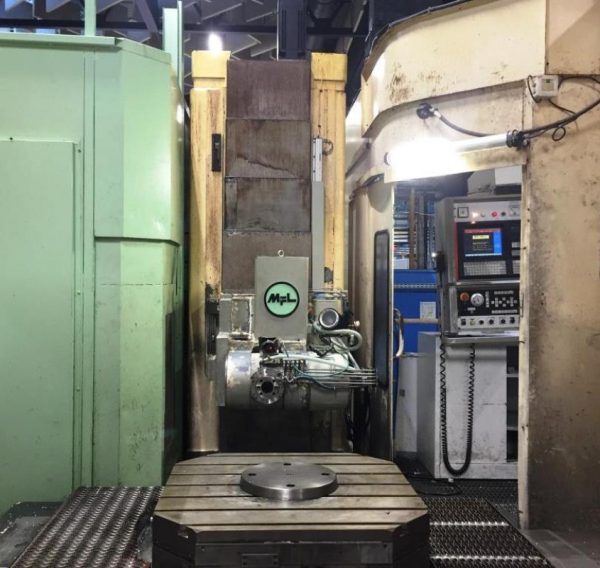

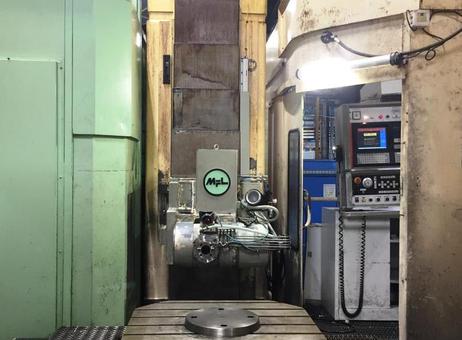

Description
| Axis X | 1600 mm |
|---|---|
| Axis Y | 1250 mm |
| Axis Z | 1600 mm |
| CNC | NUM 1060 M |
| Table length | 1000 mm |
| Table width | 1000 mm |
| Number of tool pockets | 100 |
| Spindle taper | SA 50 |
| Max. spindle speed | 3200 rpm |
| Spindle motor power | 30 kW |
Main Features :
Axis travel:
X axis: 1600 mm
Y axis: 1250 mm
Z axis: 1600 mm
B axis: 360 °

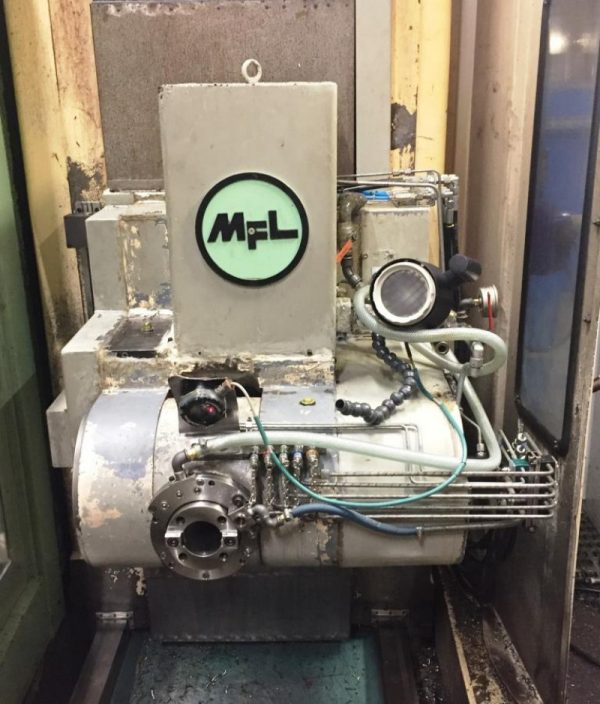

Axis A: + 90 ° / -120 °

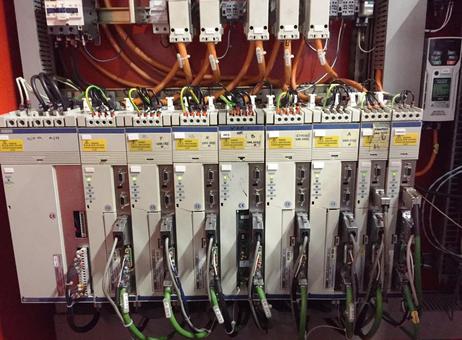

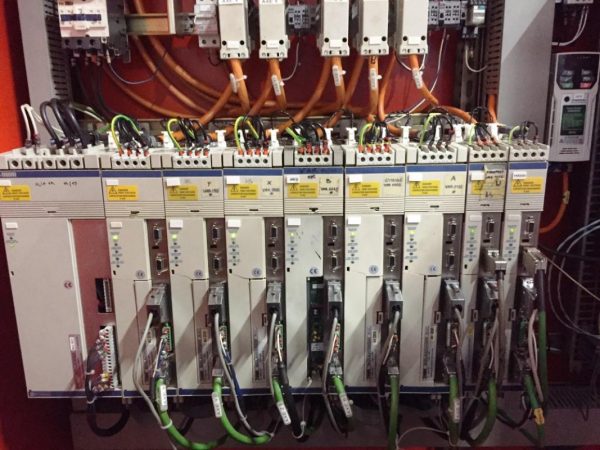

Axis motors: NUM servomotors (BPH motors + MDLA drives)
brooch
Tool cone SA 50
Tool center sprinkler system
2 speed ranges:
Range 1> 20 to 751 rpm
Range 2> 751 to 3200 rpm
AC motor CEGELEC K 160 30 kW 1500 rpm
CEGELEC Alspa VNTV 4059 drive
Machine table:
Dimensions: 1000 X 1000 mm
Measurement:
HEIDENHAIN LS 176 rules on the X, Y and Z axes
HEIDENHAIN type ROD encoder on A (5th axis head), B (Table) axes, Tool changer.

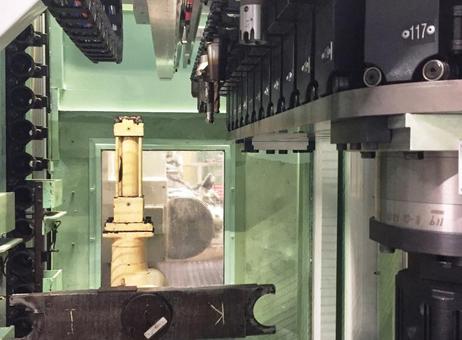

Tool changer:
2 bucket chains (2×50 tools Type SA50)
BALLUFF chip reader
Motorized rotation with coded position managed by a PLC axis.

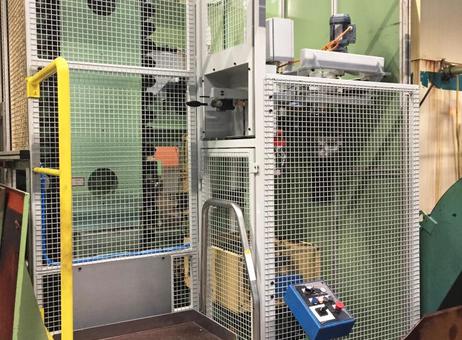

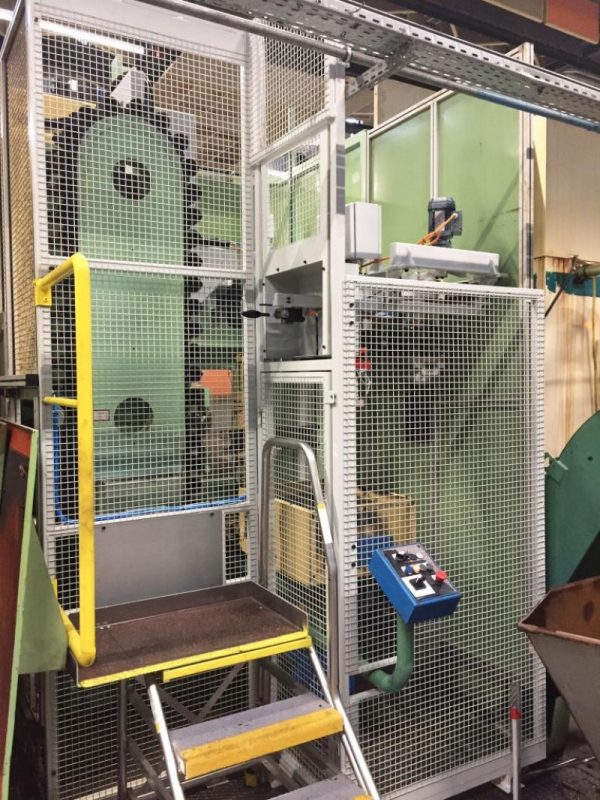

Magazine of 30 CATO C4 tools for return head

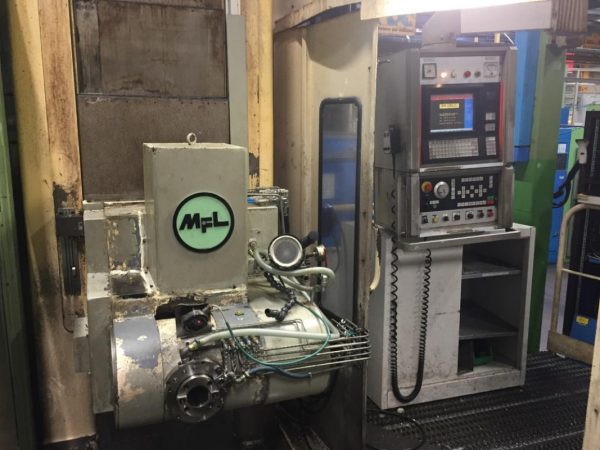

Numerical control:
CN NUM 1060 M
Last electrical and mechanical retrofit: 2004
Watering adaptation by the spindle center: 2017
Adaptation of CAPTO C4 tool magazine for deflection head: 2019
Part probing:
RENISHAW Type OMP

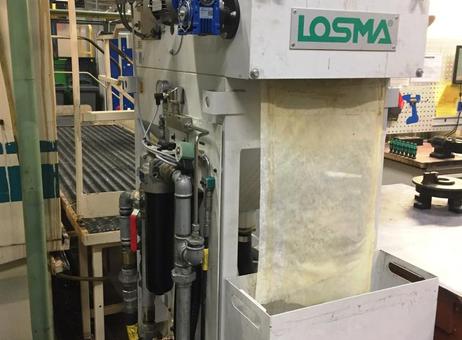

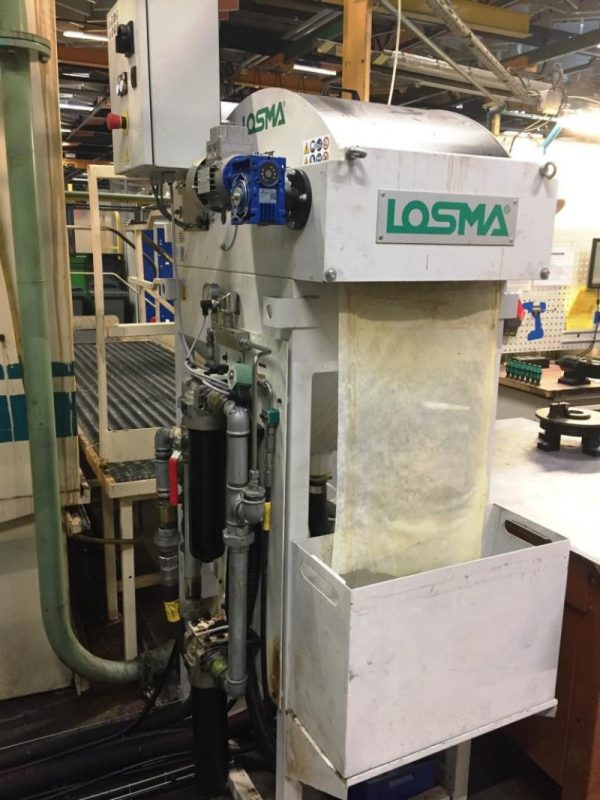

Lubricant filtration:
LOSMA type Mini Master lubricant paper filtration unit
