Description

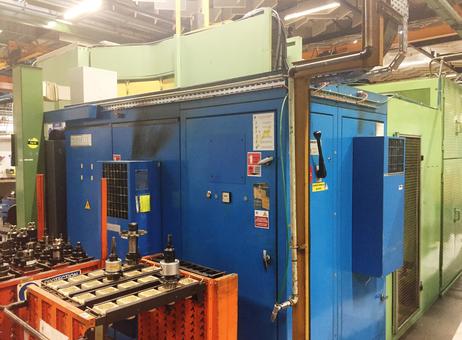

| Axis X | 1000 mm |
|---|---|
| Axis Y | 1250 mm |
| Axis Z | 1000 mm |
| CNC | NUM 1060 M |
| Table length | 800 mm |
| Table width | 800 mm |
| Spindle taper | SA 50 |
| Max. spindle speed | 3200 rpm |
| Spindle motor power | 30 kW |

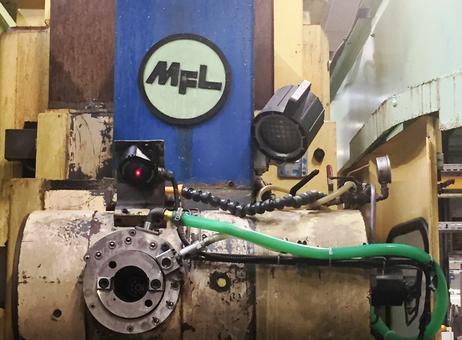

Main Features :
– Axis travel:
X axis: 1000 mm
Y axis: 1250 mm
Z axis: 1000 mm
B axis: 360 °
Axis A: + 90 ° / -105 °
Axis motors: SIEMENS brushless servomotors (1FT5 motors + 611A drives)
brooch
Tool cone SA 50

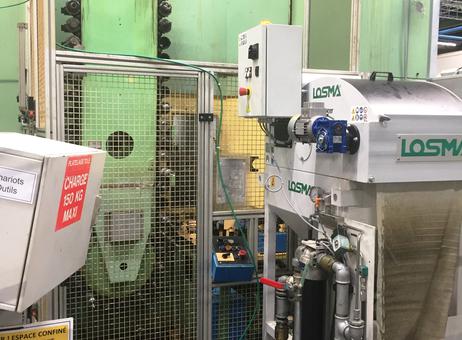

Tool center sprinkler system
2 speed ranges:
Range 1> 20 to 750 rpm
Range 2> 751 to 3200 rpm
AC motor CEGELEC K 160 30 kW 1500 rpm
CEGELEC Alspa VNTV 4059 drive
Machine table:
Dimensions: 800 X 800 mm
Measurement:
HEIDENHAIN LS 106 rules on the X, Y and Z axes
HEIDENHAIN type ROD encoder on A (5th axis head), B (Table) axes, Tool changer.
Tool changer:
1 Bucket chain (50 tools Type SA50)
BALLUFF chip reader
Motorized rotation with coded position managed by a PLC axis.

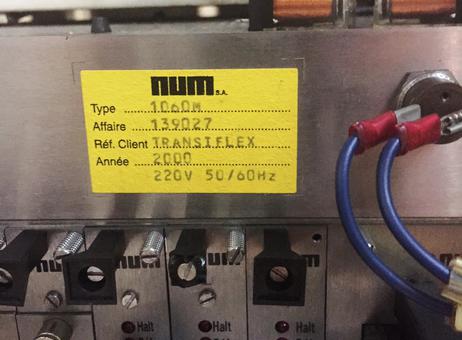

Numerical control:
CN NUM 1060 M
Last electrical and mechanical retrofit in 1999
Part probing:
RENISHAW Type OMP
