Description

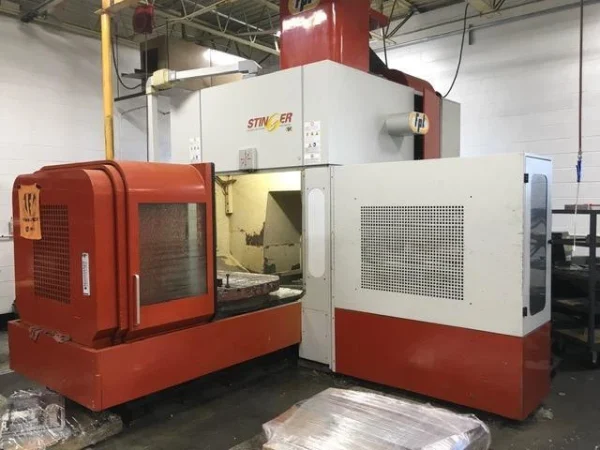

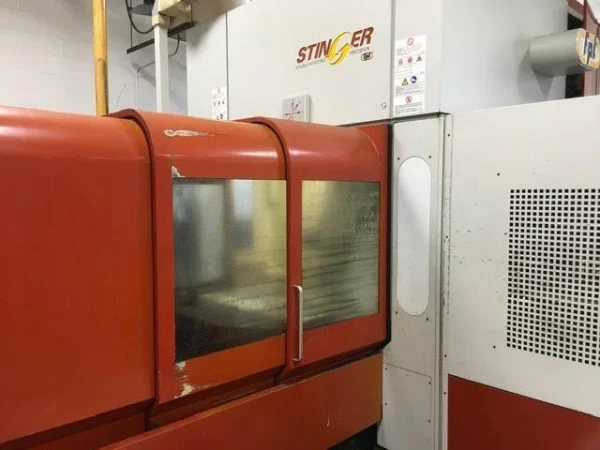

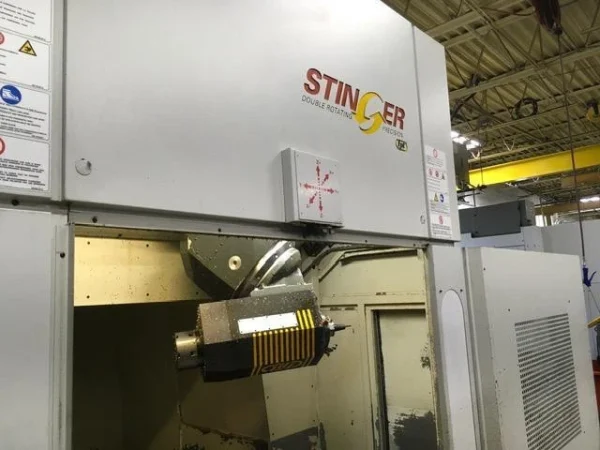

FPT STINGER CNC 5-Axis Portal Milling Machine – Year 2004
EQUIPPED WITH:

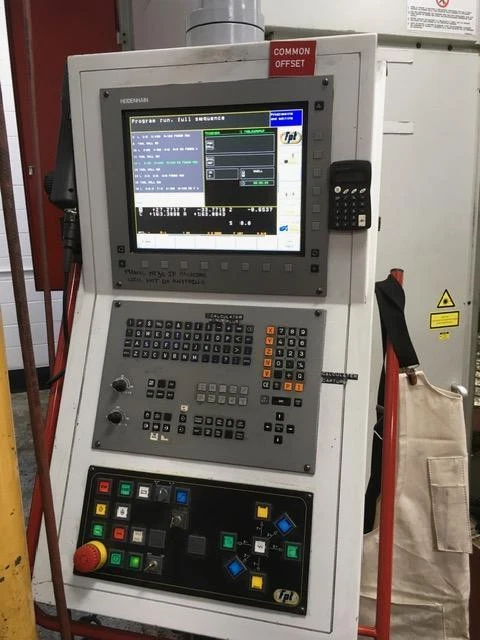

Heidenhain TNC 430 CNC Control, 60 Station Automatic Tool Changer, Through the Spindle Coolant, Coolant System, Chip Conveyor.
Spindle was replaced November 2019. Estimate less than 1000 hours on this spindle.
CATALOG SPECIFICATIONS:

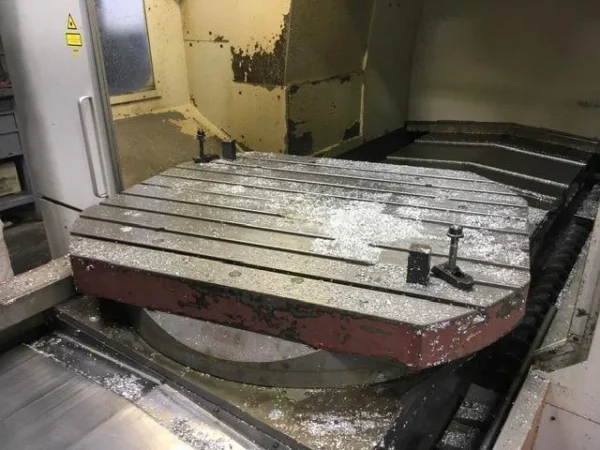

Table Size 51″ x 39.3″ x 47.2″
# Axis 5
X-Axis (Longitudinal Travel) 68.5″
Y-Axis (Cross Travel) 55″
Z-Axis (Vertical Travel) 24″

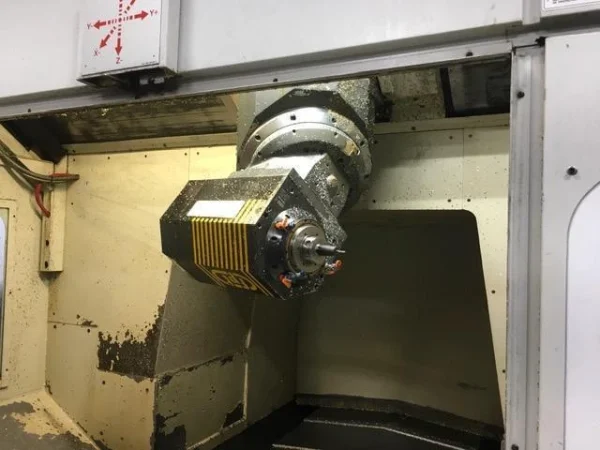

A-Axis (Spindle Head Tilt) ±185°
C-Axis Table Rotation Positioning 360,000
Feed Rates (X, Y, & Z Axis) 1,378 IPM
Max Spindle Speed 18,000 RPM
Spindle Taper HSK 63
Automatic Tool Changer Capacity (ATC) 60
Coolant Through Spindle yes
CONDITION: This Machine Appears to be in Excellent Condition !
