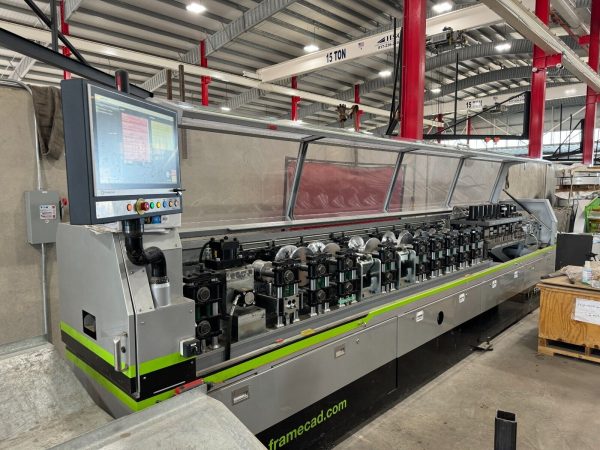

FRAMECAD TF550H Specialized Roll-Forming Equipment for Heavy Duty Frames, Joists and Trusses – Year 2021

Get Quote

Categories: ,

Description

FRAMECAD TF550H Specialized Roll-Forming Equipment for Heavy Duty Frames, Joists and Trusses – Year 2021
Specs:

TF550H

Profile Width (Web) Range 89 – 150mm or 3⅟₂” – 6″

Profile Height (Flange) Range 34 – 50mm or 1⅟₃” – 2″ (Boxable Section recommended)

Material Thickness 0.95 – 2.0mm or 20 – 14 gauge

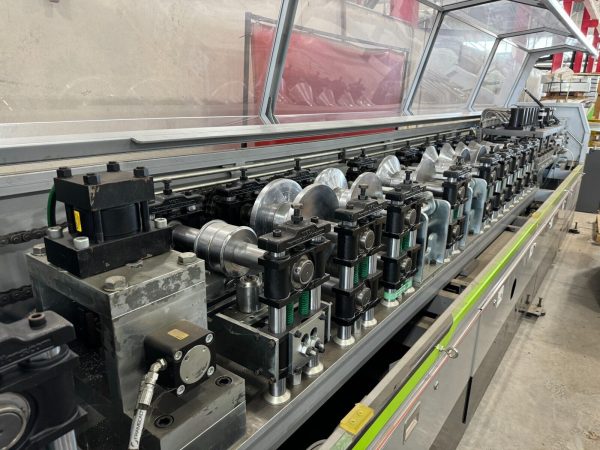

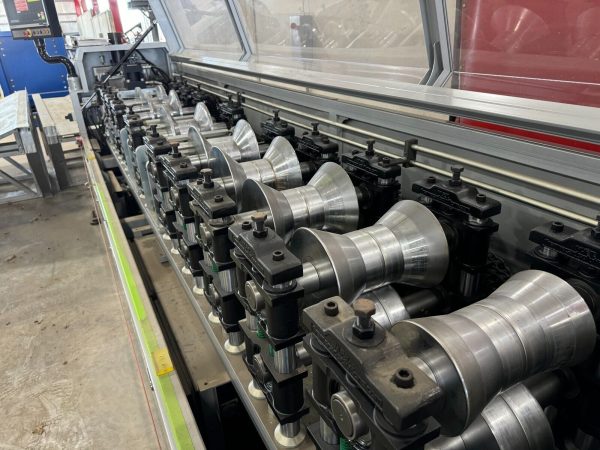

Roll Forming Stations 13 Stations

Punching Stations 12 Frame and Truss Punching Stations

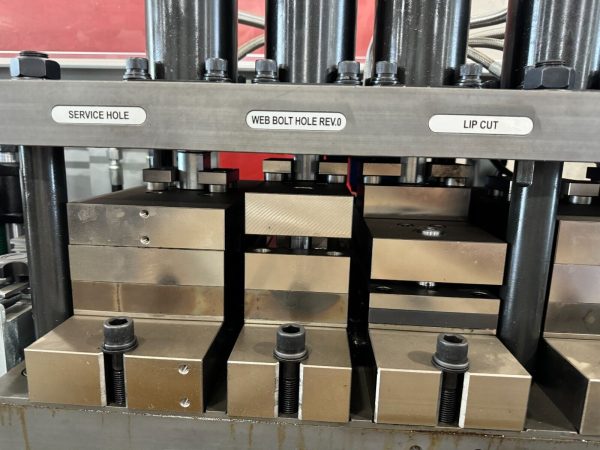

Standard Punch Tooling* Service Hole, Web Bolt Hole, Dimple, Web Notch, Chamfer, Lip Cut, Flange Cut (left & right), Swage, Shear. (Options to add 2 other tools)

Max Line Speed 1,350m/hr (4,430ft/hr)

Typical Production Speed (actual dependent on framing design) 300m/hr – 600m/hr (985ft/hr – 1,970ft/hr)

Main Drive Power 11kW (15hp)

Hydraulic Power 7.5kW (10hp)

Length 6,500mm (21.3′)

Width 1,100mm (3.7′)

Height – to top of covers 1,600mm (5.25′)

Weight (approx.) 4,820kg (10,630lb)

Printer 2 Printer Heads

Decoiler Capacity 3,000kg (6,600lb) powered Decoiler with heavy duty upgrade

Why do Customers prefer using FRAMECAD TF550H Specialized Roll-Forming Equipment for Heavy Duty Frames, Joists and Trusses?
