Description
FRORIEP KE-16 SUPER – Year 1988

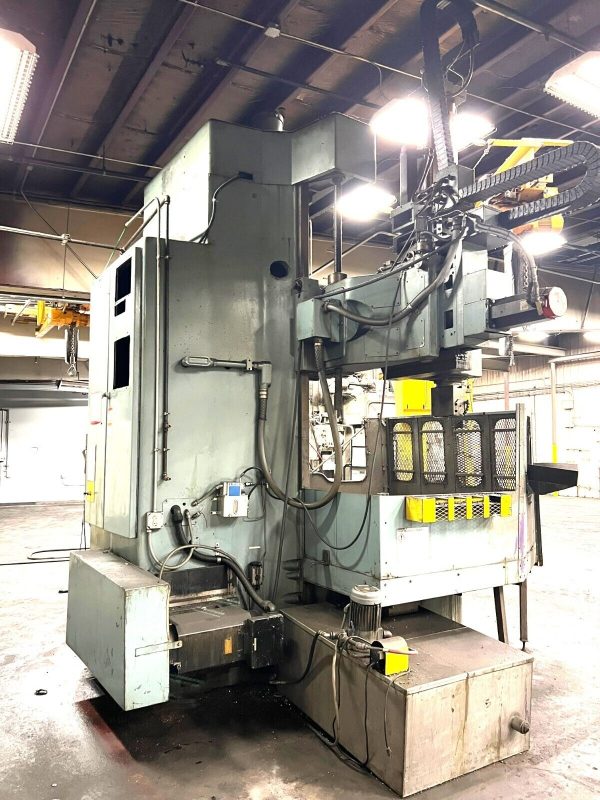

63″x71″ Froriep Model KE-Super KE16 63″ Turret Lathe,
4-AXis
CNC Retrofit in 2006
Diameter of Chuck: 63″ (1,600.2 mm)
Max Swing: 71″ (1,803.4 mm)
Height Under Rail: 47″ (1393.8 mm)
Table Speed: 2.5 – 125 RPM
Feed Rates: .003 – – .20 (12)
Main Motor Drive: 50HP
Complete With:
Turret Head 2-Axis CNC

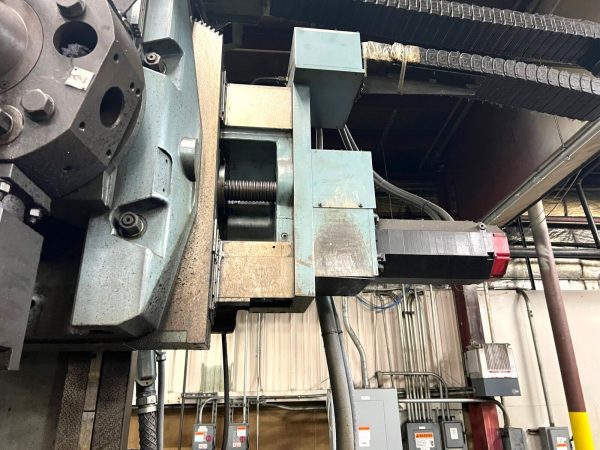

Ram Head 2-Axis CNC
63″ Table with Jaws
Approximate Dimensions: 132″(LR) X 127″(FB) X 144″(H)
Equipped With
FANUC 18TT CNC
TURRET AND RAM HEAD 4-AXIS

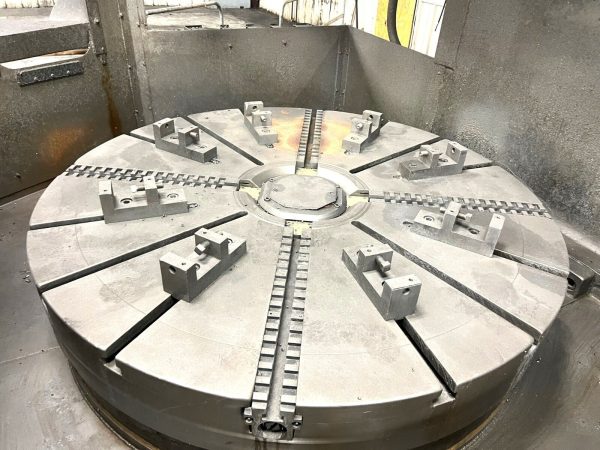

63″ FACE PLATE TYPE CHUCK
63″ Froriep 4-Axis CNC Vertical Boring Mill w/ Ram and Turret Head, 63″ Table, face plate type chuck, 71″ swing, Fanuc 18TT CNC, 50 HP Drive, Retrofit 2006
