Description
GE Additive Arcam EBM Q20plus eBeam Sintering 3D Metal Printer – Year 2020
Technical Data found online:
Max. build size 350 x 380 mm (Ø x H)
Max. beam power 3kW
Cathode type Single crystalline
Min. beam diameter 140 μm
Max. EB translation speed 8,000 m/s
Active cooling Water-cooled heat sink
Minimum chamber pressure 5 x 10-4 mbar
Typical build atmosphere 4 x 10-3 mbar (partial pressure of He)
He consumption, build process 4 l/h
He consumption, ventilation 100-150 l/build
Power supply 3 x 400 V, 32 A, 7 kW
Size approx. 2,400 x 1,300 x 2,945 mm (W x D x H)
Weight 2,900 kg
CAD interface Standard: STL
Materials available Arcam EBM Ti6Al4V Grade 5, P-Mtrl
Arcam EBM Ti6Al4V Grade 23, P-Mtrl

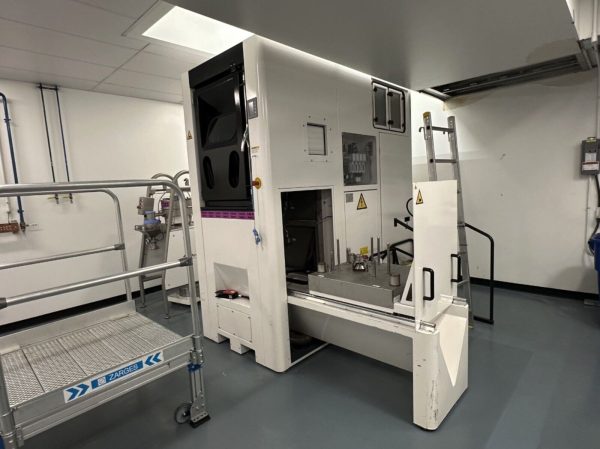

GE Arcam EBM Q20plus / Manufactured in 2020 and is in excellent condition / Recently removed from service by GE, professionally crated and ready to ship / Please find images of the actual system attached along with the manufacturers brochure. Here are more details:
The Arcam EBM Q20plus build envelope allows for producing large components and optimal stacking of
smaller ones, while its build chamber interior is developed for easy powder handling and fast turn-around.
The Q20plus is upgraded with new improved high voltage unit and amplifier. It also has a new powder
layering system similar to the Spectra platform.
