Description

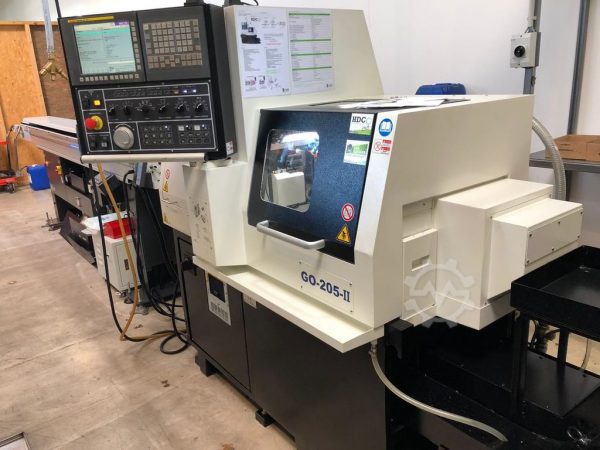

new Ge-Fong GO-205II built in 2018 including Bar feeder, Chip conveyor and chips cart and Motor direct- drive rotary guide bushing. The machine was not in production, but served as an exhibit in our showroom. Machine is available immediately.
In addition, we offer you HDC, the commissioning, programming and training of your employees by our qualified personnel.
As an experienced partner, we continue to support you actively and reliably with our service, spare parts procurement and training of your employees.
Capacity
Bar stock diameter: 3~20 mm
Max. work chucking diameter at back spindle side: 20 mm
Max. machining length:
170 mm ( Direct motor – driven guide bushing )
80 mm ( Mechanical-drive guide bushing )
250 mm ( Fixed guide bushing )
45 mm ( Guide bushing-less )
Max. main spindle drilling / tapping diameter: ø10 mm / M8
Max. back spindle drilling / tapping diameter: ø8 mm / M6
Max. drilling / tapping dia. of cross tool spindle: ø6 mm / M5
Max. mountable slitting saw dia. / Nos. at cross tool post: ø30 mm × 2
Max. drilling / tapping diameter of back tool spindle: ø6 mm / M5
Other
Net weight: 1,700 Kg
Equipment capacity: 11 KVA
Power source required: ≧9 KVA
Air pressure: ≧0.4 MPa (4Kg / cm2 )
Air flow: ≧30 NL / min
Cutting coolant tank capacity: 115L
Machine size : L×W×H: 1,640 × 1,080 × 1,700 mm
