GELBER-BIEGER ERB 54 – 2020 Model
the length of the machine:
offered in 2,0m / 4,0m or 6,0m
Everything else is included, as you can see in the standard equipment.
standard equipment.

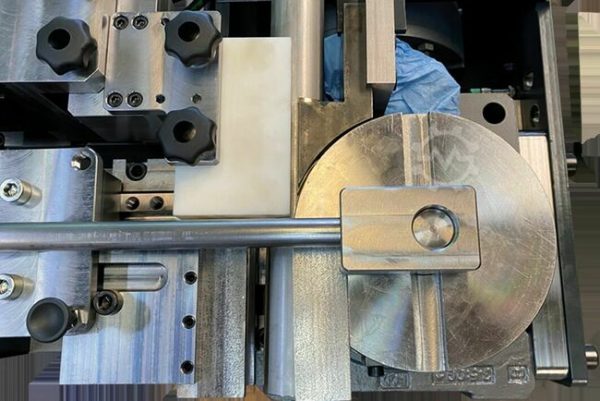

Stable Cyclo gearbox of the bending axis
Speed adjustable max 50°/sec
Bending direction left and right
bending angle resolution 0,1°
max. bending radius 150
Bending shaft diameter 50 mm
Electronic length measurement resolution ±0,1mm
Torsion is motor and servo controlled
Twist measurement Resolution ±0.1°
Feed is motorized and servo-controlled
Three-jaw chuck for locking the
of the tube in the carriage
External control panel SPS control:
Touchscreen 10″ QVGA colour
USB connection
Foot switch operation
One- and two-hand operation
Data transfer via network (W)LAN or USB
remote maintenance
Material database
Power hydraulics 2,2 kW
Hydraulic pipe clamping with
adjustable clamping pressure
Programmable premature mandrel retraction
Electrical mandrel lubrication with oil
Trowel holder
Pre-programmed 2D railing geometries with input of lengths directly on the machine
The whole equipment is only made of very high quality
