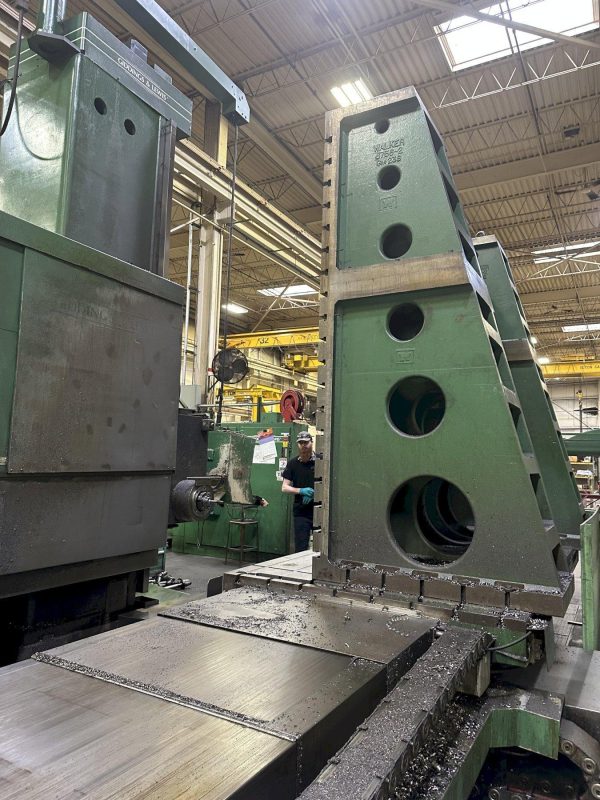

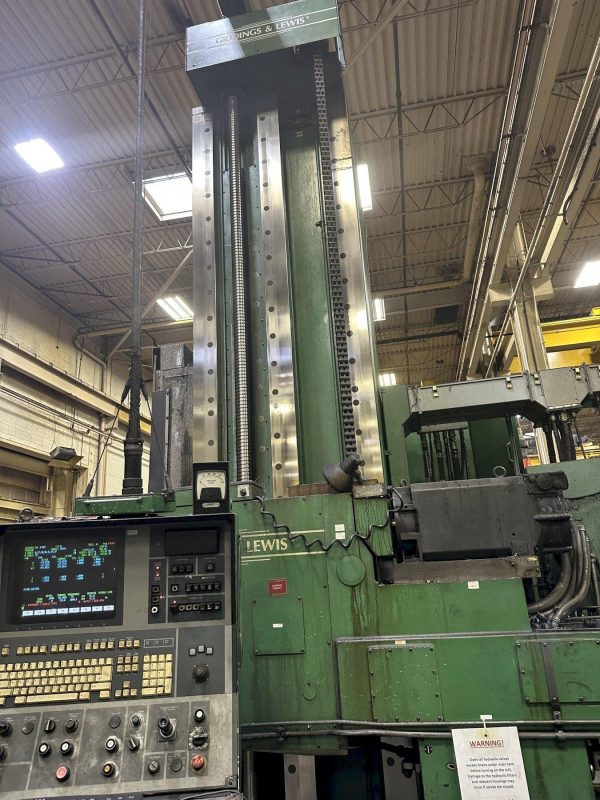

GIDDINGS & LEWIS G-60TX CNC Horizontal Boring Machine – Year 2000
FEATURES:
G & L 800B CNC
40-STATION AUTOMATIC TOOL CHANGER
CAPACITY:
SPINDLE DIAMETER………………………………. 6″
SPINDLE TAPER………………………………………. #50
VERTICAL HEAD TRAVEL, Y-AXIS………….120″
TABLE CROSS TRAVEL, X-AXIS………………144″
SPINDLE TRAVEL, Z-AXIS……………………….. 48″
LONGITUDINAL TRAVEL, W-AXIS……………38″
SPINDLE SPEEDS……………………………………… 12-3500 RPM
TABLE SIZE………………………………………………… 60″ X 144″
TABLE CAPACITY………………………………………. 70,000 LBS
RAPID TRAVERSE RATE, Y & X AXIS………. 450 IPM
RAPID TRAVERSE RATE, W & Z AXIS……… 300 IPM
FEEDS, X,Y,Z,W AXES…………………………………. 1 TO 150 IPM
SPINDLE MOTOR……………………………………….. 60 HP
EQUIPPED WITH:

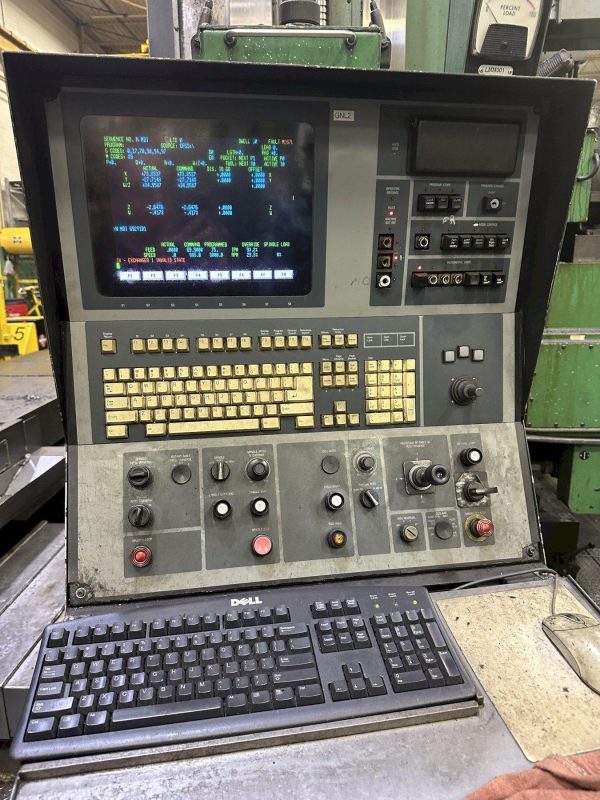

GIDDINGS & LEWIS NUMERIPTH 8000 Control

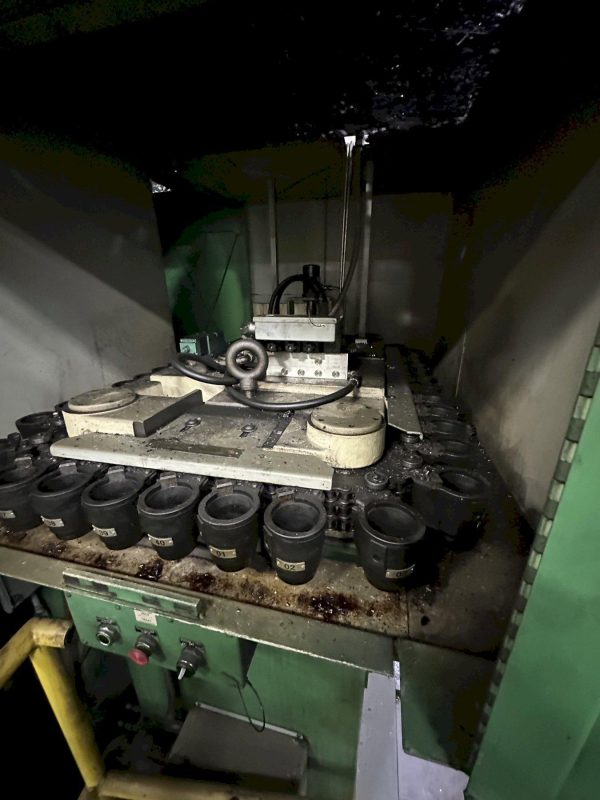

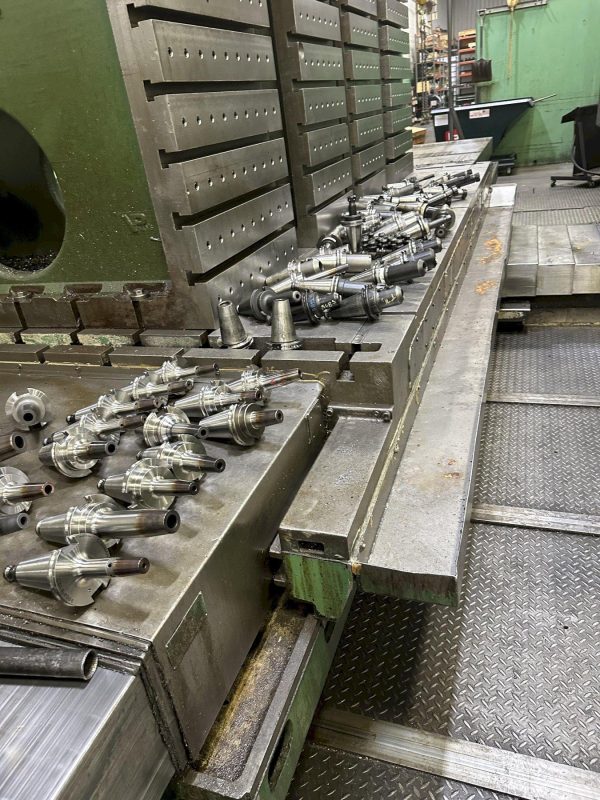

40-STATION AUTOMATIC TOOL CHANGER
THRU-SPINDLE & FLOOD COOLANT SYSTEM
HARDENED WAYS ON ALL AXIS
3-WAY VERTICAL COLUMN

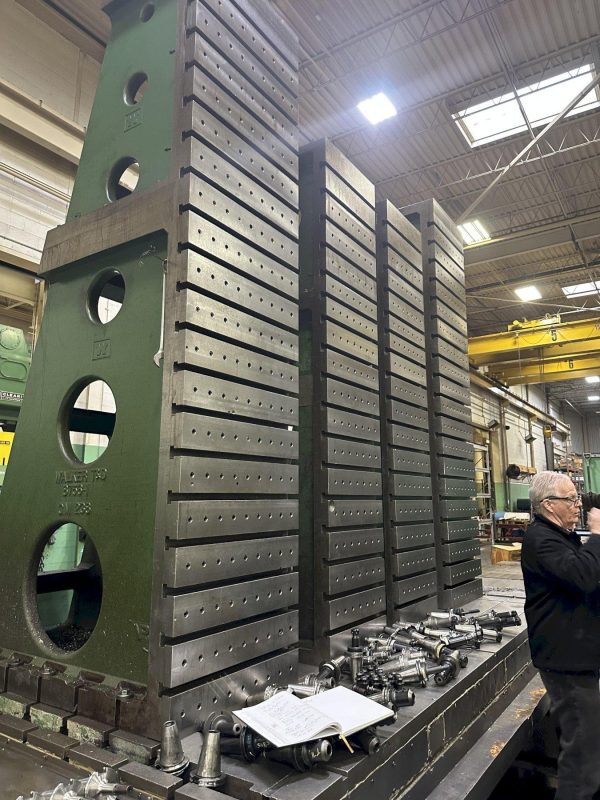

TRIPLE OUTRIGGER TABLE SUPPORTS

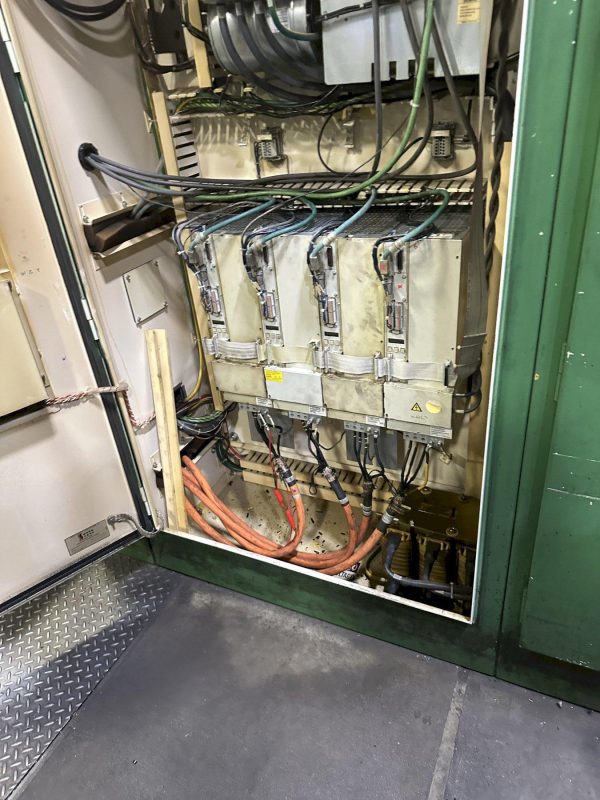

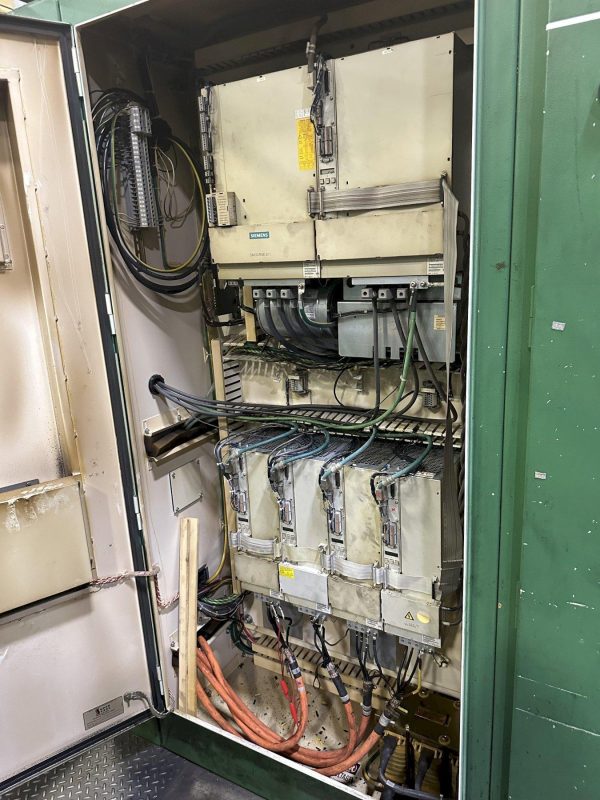

BALLSCREWS & INDEPENDENT SIEMENS AC SERVO DRIVES
STEEL TELESCOPING WAY COVERS
CHIP CONVEYOR
FULL CHIP AND SPLASH ENCLOSURE

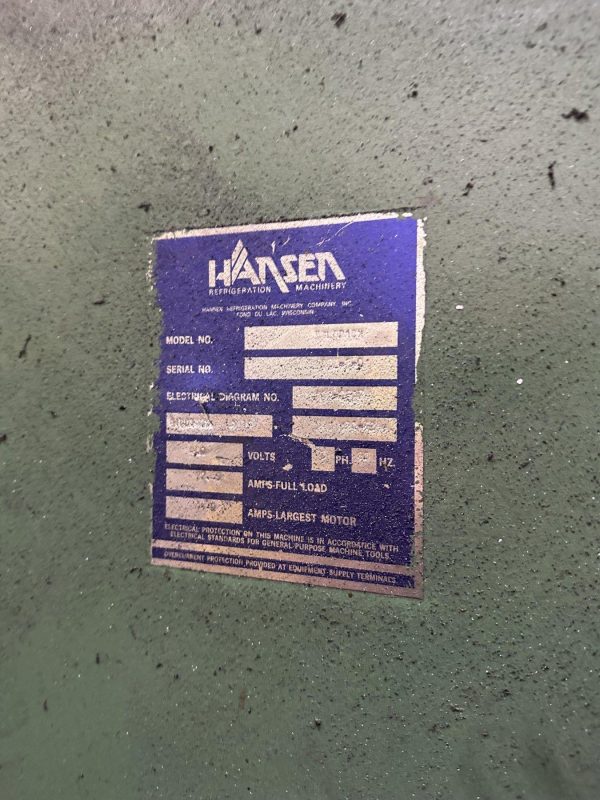

COOLANT PUMP & 200 GALLON TANK
