Description

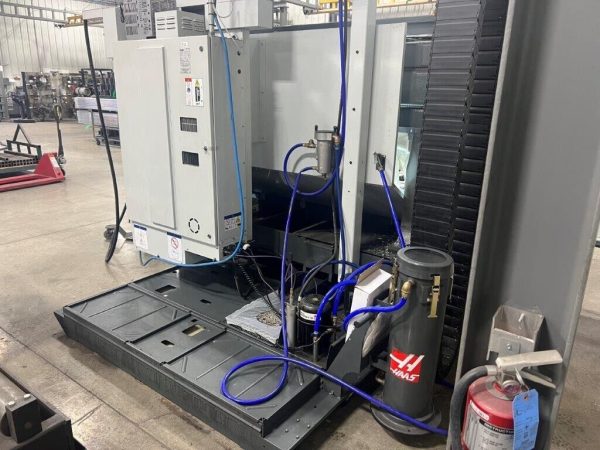

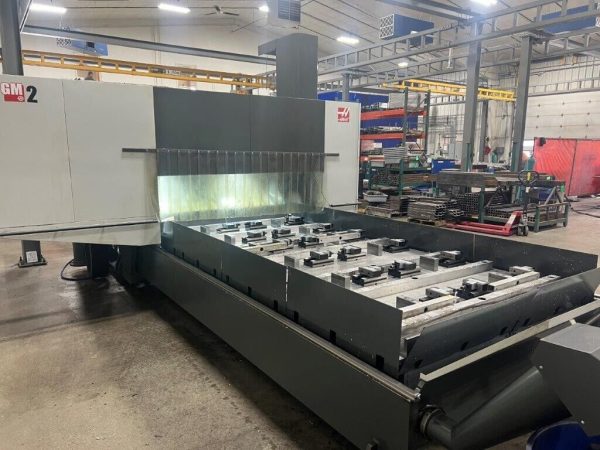

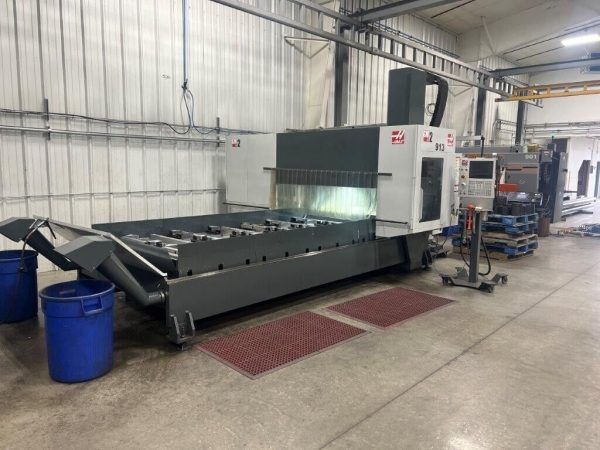

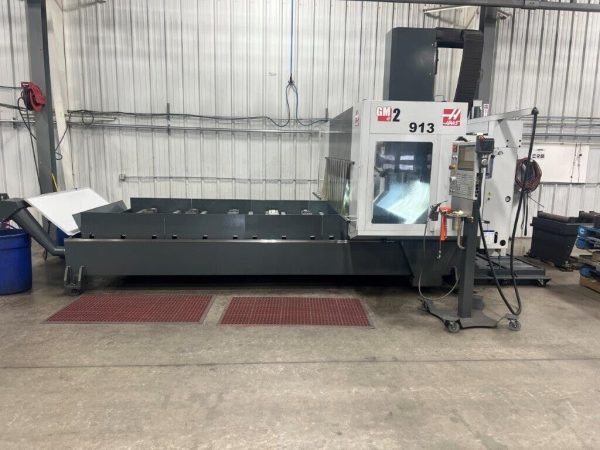

Haas GM-2 CNC Gantry Machining Center – Year 2022
TRAVELS
-X AXIS: 145″
-Y AXIS: 87.5″
-Z AXIS: 22″
TABLE SIZE: 144″ X 72″
TABLE CAPACITY: 6,000 LBS
SPINDLE SPEED: 10,000 RPM
SPINDLE MOTOR: 30 HP
SPINDLE TAPER: CAT 40
TOOL CAPACITY: 30 ATC
RAPID TRAVERSE – X/Y AXIS: 472 / 1,890″ / MIN
RAPID TRAVERSE – Z AXIS: 1,181″ / MIN
CUTTING FEEDRATE: 472 IPM
EQUIPPED WITH:
10,000 RPM
HIGH SPEED MACHINING
THROUGH TOOL AIR BLAST
THROUGH SPINDLE COOLANT
AUXILIARY COOLANT FILTER
GANTRY ROUTER COOLANT SYSTEM
WIRELESS INTUITIVE PROBING SYSTEM
COORDINATE ROTATION & SCALING
VISUAL PART PROGRAMMING
SPINDLE ORIENTATION
MACROS
REMOTE JOG
RIGID TAP
CHIP AUGER
