Description
This machine has been decommissioned and is currently in storage.
It will need to be gone thru to get it back in proper working condition, but is good condition at a fraction of new. Client paid over $521,000 new. Loaded with options.
It will need to be gone thru to get it back in proper working condition, but is good condition at a fraction of new. Client paid over $521,000 new. Loaded with options.
| # Axis | 5 |
| Swing | 264.16 mm |
| Centers | 386.08 mm |
| Power | 11.9 kW |
| Grinding Wheel Dia. | 200.15 mm |
| Max RPM | 8,000 RPM |
| Dimensions | 128″ x 96″ x 132″H |
| Weight | 17600 (LBS) |
| Control | CNC (SIEMENS SINUMERIK 840D) |

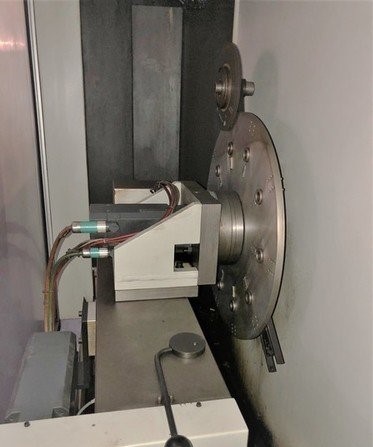

HAAS SCHLEIFMASCHINEN HT – 2002 Model
EQUIPPED WITH
5 Axis CNC Controlled Tool/Cutter Grinder
Automatic Grinding Wheel Dressing Device Renishaw Tool Length Measuring Probe Auto Grinding Wheel Changer for 10 Wheel Flanges-each flange can carry 3 wheels High Pressure 18 bar Coolant Pump CO2 Fire Extinguishing System Software for Right & Left Spiraled Step Drills Software for Production of Medical Broaches Software for Produc. of Cross Hatched Rasps Direct Measuring System / Linear Axis HT Linear Axis for C Axis Grinding Spindle Linear Drive 8,000 RPM Linear Drive Coolant Unit Pneumatic Support for Long Thin Parts Prism for Reamers Guideway Prism Hydraulic Tailstock Hydraulic Clamping System Grinding Spindle HSK50E-Direct Drive 8000 Coolant Supply System with constant coolant temperature Electrostatic Air Cleaning System AC IIR Additional Cooling Working Head Control Cabinet Cooling Modem Interface Ethernet Interface Machine Drip Pan Coolant Centrifuge Drip Pan DXF Interface Graphics Overload Protection on Spindle Auto Lubrication System Splash Proof Enclosure All Available Manuals Wired 400V Electrics *New as Equipped cost $521,432 *This unit is currently in storage and will need some work
Automatic Grinding Wheel Dressing Device Renishaw Tool Length Measuring Probe Auto Grinding Wheel Changer for 10 Wheel Flanges-each flange can carry 3 wheels High Pressure 18 bar Coolant Pump CO2 Fire Extinguishing System Software for Right & Left Spiraled Step Drills Software for Production of Medical Broaches Software for Produc. of Cross Hatched Rasps Direct Measuring System / Linear Axis HT Linear Axis for C Axis Grinding Spindle Linear Drive 8,000 RPM Linear Drive Coolant Unit Pneumatic Support for Long Thin Parts Prism for Reamers Guideway Prism Hydraulic Tailstock Hydraulic Clamping System Grinding Spindle HSK50E-Direct Drive 8000 Coolant Supply System with constant coolant temperature Electrostatic Air Cleaning System AC IIR Additional Cooling Working Head Control Cabinet Cooling Modem Interface Ethernet Interface Machine Drip Pan Coolant Centrifuge Drip Pan DXF Interface Graphics Overload Protection on Spindle Auto Lubrication System Splash Proof Enclosure All Available Manuals Wired 400V Electrics *New as Equipped cost $521,432 *This unit is currently in storage and will need some work
