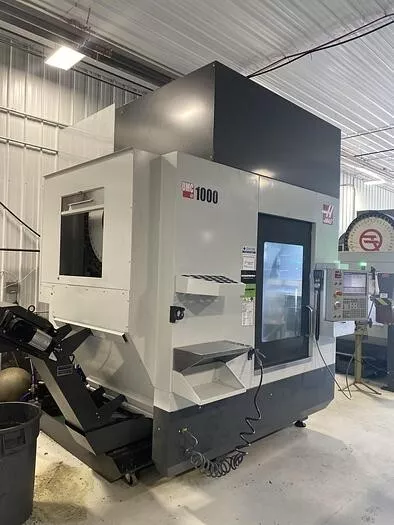

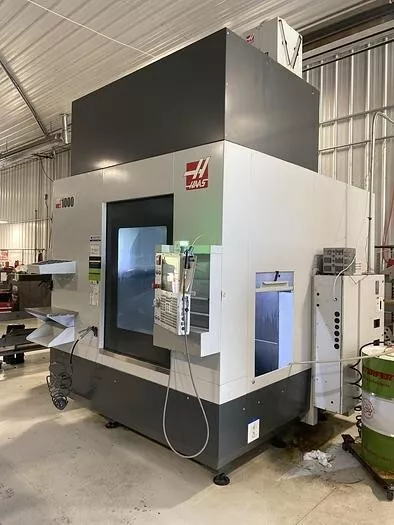

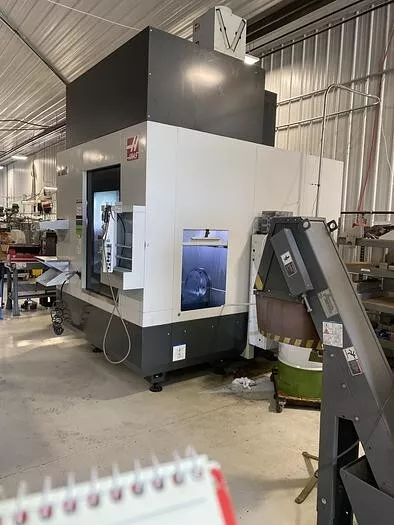

HAAS UMC-1000 CNC 5-Axis High Speed Vertical Machining Center – Year 2020

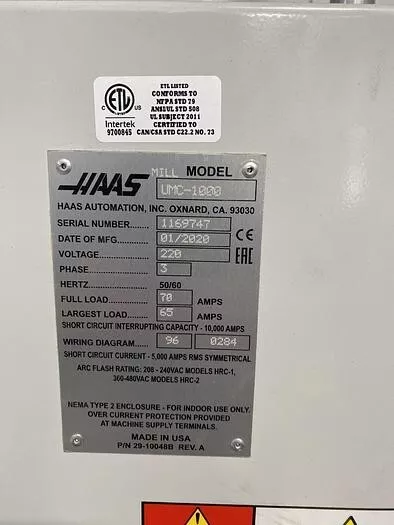

New 2020, Serial No 1169747, Model UMC-1000
EQUIPPED WITH:

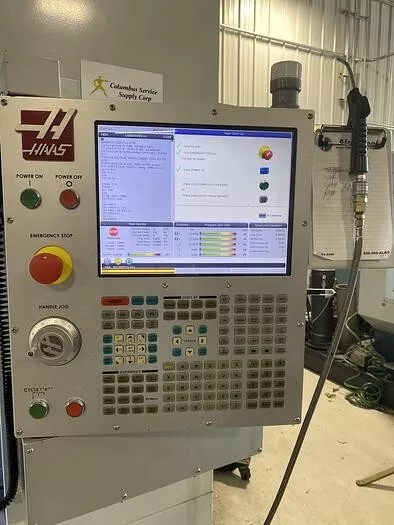

Haas CNC Control w/32GB Memory Upgrade

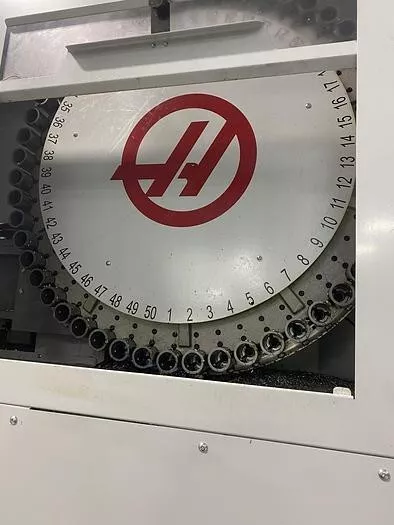

50-Position Side-Mounted Tool Changer
15000 RPM High-Speed Spindle
Enclosure Exhaust System – Rigid Tapping
Thru-Spindle Coolant System w/Programmable Coolant Nozzle
Auxiliary Coolant Filtration System w/Chip Strainer
UMC Belt-Type Chip Conveyor
CATALOG SPECIFICATIONS:

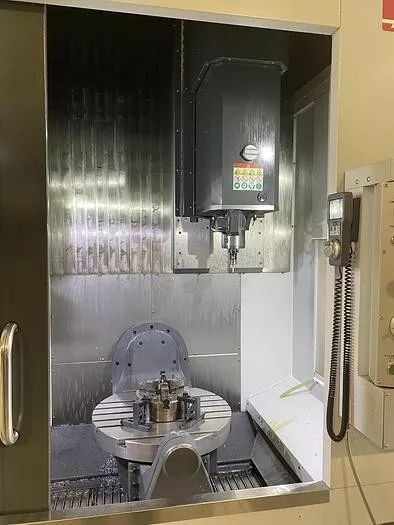

Platter Diameter 25″
Platter Load Capacity 1000 LBS
Longitudinal Travel (X-Axis) 40″
Cross Travel (Y-Axis) 25″
Vertical Travel (Z-Axis) 25″
Platter Tilt Range (B-Axis) -35 to 120-DEGREES
Platter Rotation (C-Axis) 360-DEGREES
Spindle Nose to Platter, Maximum 29″
Spindle Nose to Platter, Minimum 4″
Spindle Taper CT 40
Spindle Speeds, Range 0 to 15,000 RPM
Spindle Motor, Horsepower Rating 30 HP
Overall Dimensions, W x D 148″ x 131″
Overall Height 133″
Weight Approximately ………. 17500 LBS
Very Light Usage.
Some Additional Options.
