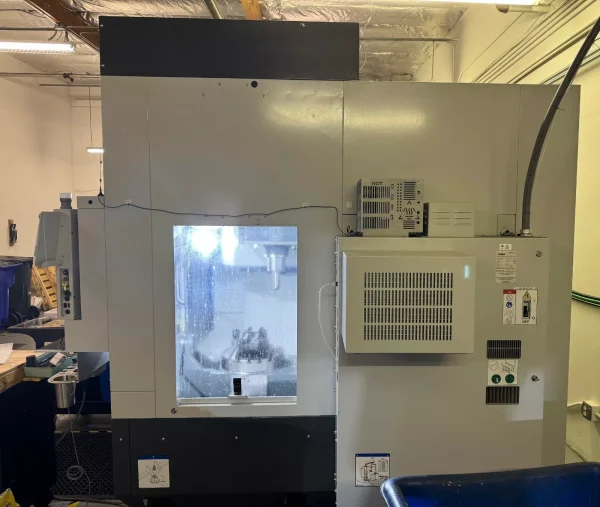

HAAS UMC-500 CNC 5-Axis Vertical Machining Center – Year 2023
Build Date: 6-2023

GENERAL SPECIFICATIONS

X Axis: 24” / Y Axis: 16” / Z Axis: 16”

Spindle Speed 15,000 RPM / inline direct drive

Taper: CAT-40 / Max Rating: 30 HP

Max Torque: 90 Ft LBF @ 2000 RPM

FEEDRATES

Max Cutting: 650 IPM / Rapids X,Y,Z: 900 IPM

B Axis Tilt

Travel: 120 to -35 Degrees / Max Speed: 50 Degrees/Sec

Max Torque: 1854 FT-LBF / Brake Torque: 2000 ft lbf

C Axis Rotation

Travel: 360 Degrees / Max Speed: 50 degree/sec

Max torque: 1854 ft lbf / Brake Torque: 900 ft lbf

Max Part Swing: 18.0”

Platter

Platter Diameter: 15.70” / T-Slots: 5

Max Weight on Platter: 500 LBS

Tool Changer Capacity: 30+1

Spindle Nose to Platter: 4” – 20”

Max Tool Diameter: 2.5”

Max Tool Length from Gage Line: 12” / Max Tool Weight: 12 LBS

Tool to Tool Time: 2.8 Sec (Avg) / Chip to Chip Time: 3.6 Sec (Avg)

Coolant Tank: 95 Gallon

Weight: 11,900 Lbs. Power: 220V / 3 Phase / 70 Amp

EQUIPPED WITH:

Built-In Trunion Table / 4th axis Drive and 5th axis drive

15000 RPM SPINDLE, Inline Direct Drive ($14,395.)

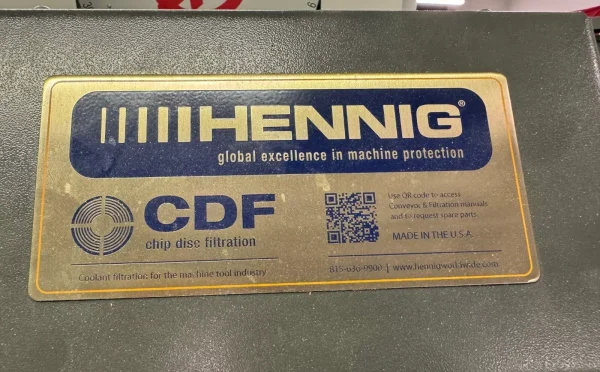

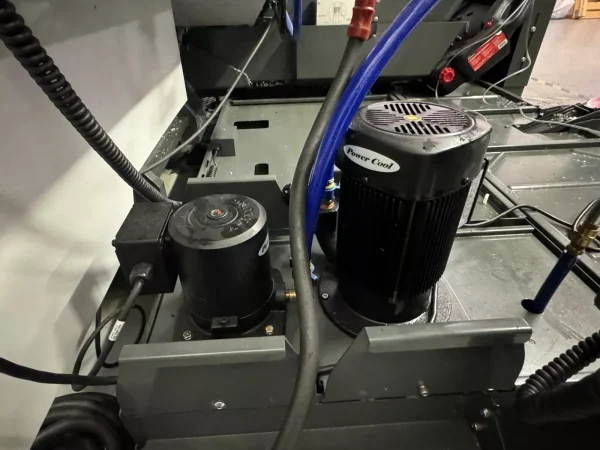

Hennig Chip Conveyor ~ CDF (Chip Disc Filtration) ($16,795)

Through Spindle Coolant Ready

Coolant Refill: Automatic coolant refill system

95 Gallon Coolant Tank / Oil Skimmer

High Speed Machining

50 STATION TOOL CHANGER ($19,895)

RIGID TAPPING

WIPS: Wireless Intuitive Probing System; Renishaw

VPS Visual programming system & Media Display

M19 Spindle Orientation and MACROS

Coordinate rotation and scaling

Large remote jog handle with touchscreen display.

32 GB MACHINE MEMORY / Compensation Tables / Wireless Networking

TCPC & DWO (Dynamic Work Offsets & Tool Center Point Control)

Chip Strainer ~ Chip Tray Filter Kit

HOURS: Power on: 2755. / Cycle Start: 363. / Feed Cutting: 239
