Description
HARDINGE EMAG VL-3 – Year 2002
CNC Vertical Lathe
SPECIFICATIONS:
| SWING | 9″ |
| MACHINING LENGTH | 4″ |
| # AXIS | 2 |
| CHUCK SIZE | 6″ |
| BAR CAPACITY | 0″ |
| POWER | 16 kW |
| MAX RPM | 7,500 RPM |
| TURNING DIA | 5.11″ |
| TAILSTOCK | No |
| LIVE TOOLING | No |
| SUB SPINDLE | No |
| CONTROL | CNC (FANUC 12I-t) |
| DIMENSIONS | 97″ X 62″ X 91″ HIGH |
| WEIGHT | 12,100 LBS. |
– max. machining diameter : 210 [mm]
– max. machining height : 100 [mm]
– strokes (X/Z) : 400 / 200 [mm]
– quick feeds (X/Z) : 60 / 30 [mm]
– pushing force (X/Z) : 5000 [N]

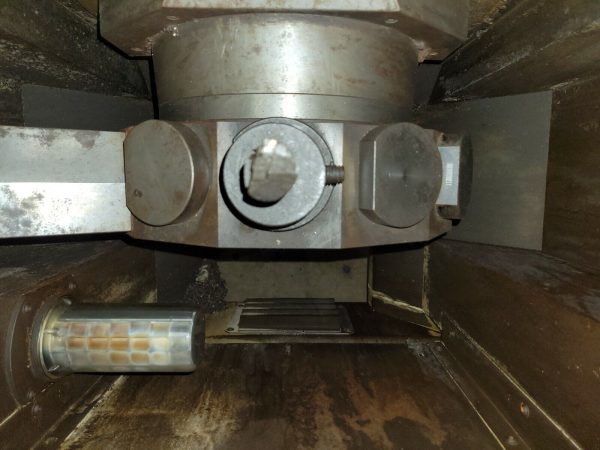

– turret 12 positions
– number of rotary positions : 12
– spindle nose : DIN55026 – size 5
– max. spindle power : 16 [kW]
– max. spindle coupling : 200 [Nm]
– spindle speed : 0 to 7500 [Rpm]
– part magazine capacity : 14 [pos]
– max. part diameter for magazine if stock 20 parts : 80 [mm]
– max. part diameter for magazine if stock 14 parts : 130 [mm]
– max. part diameter for magazine : 100 [mm]
– installed power : 28 [kW]
– dimensions : 2460 x 1550 x H. 2300 [mm]
– weight : 5500 [kg]
– max. machining height : 100 [mm]
– strokes (X/Z) : 400 / 200 [mm]
– quick feeds (X/Z) : 60 / 30 [mm]
– pushing force (X/Z) : 5000 [N]
– turret 12 positions
– number of rotary positions : 12
– spindle nose : DIN55026 – size 5
– max. spindle power : 16 [kW]
– max. spindle coupling : 200 [Nm]
– spindle speed : 0 to 7500 [Rpm]
– part magazine capacity : 14 [pos]
– max. part diameter for magazine if stock 20 parts : 80 [mm]
– max. part diameter for magazine if stock 14 parts : 130 [mm]
– max. part diameter for magazine : 100 [mm]
– installed power : 28 [kW]
– dimensions : 2460 x 1550 x H. 2300 [mm]
– weight : 5500 [kg]
DESCRIPTION:
Hardinge/Emag 2 Axis CNC inverted lathe with simple load and unload, very reliable, amazingly simple and Fast, Fanuc 21i-T control and drives, 14 station parts conveyor, Chip conveyor, Mist collector, And manuals and Parameters
EQUIPPED WITH:
Manuals and parameters, 6″ 3 jaw chuck, 14 station parts conveyor for up to 5.12′ parts, 12 station VDI turret, auto parts load and unload, “Z” axis chip conveyor, Mist collector and coolant system
