Description

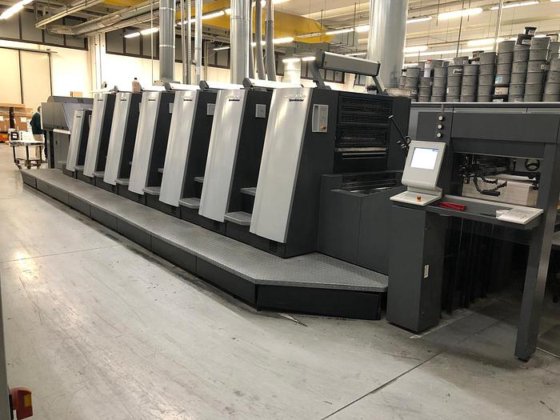

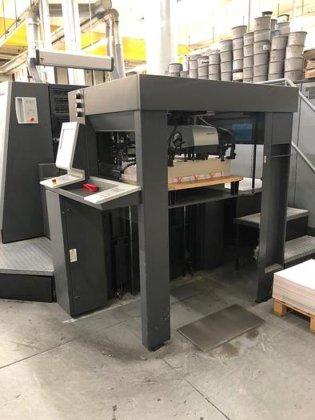

Heidelberg Speedmaster XL 75 – Year 2013
Heidelberg Xl 75 6 L UV F size
year 2013
Max. print format:585mm×740mm
Counter only 42 mil
Technical Details
Max sheet size: 605 x 750 mm
Min sheet size: 340mm×350mm
Thickness 0.03mm–0.80mm
Max speed: 15,000 sh/ hour
Prinect Press Center
Software Intellistart
Prinect Axis Control
Prinect Press Center InstantGate
Prinect Press Center InstantStart UV
Cabinet Airstar air cooled
Electromechanical double sheet control
Automatic pile alignment on feeder
Double diameter transfer cylinder between printing units
Air transfer System Venturi
Automatic blanket, roller and impression-cylinder-washing device
Predisposition for interdeck mounting
N.1 Interdeck Drystar UV water cooled
N.2 interdeck UV dryer after 1st and 4th printing unit
1 UV dryer DRYStar standard on delivery (machine is not extended delivery, It’s normal delivery)
Kit foil printing: Ultrasonic sensor double-sheet control, ionizing bars at the feeder and delivey, Ultrasonic sensor on each printing unit.
CombiStar Technotrans water cooled – temperature control group inking and dampening solution
Inking rollers for UV inks
Alcolor dampening system
Alcolor Vario
Dampening rollers for UV processing
Varnish chamber rackel system with Anilox roll
High pile delivery
Preset Plus delivery
Dryer Drystar UV water cooled in delivery positioned between the printing units
Extended F Format
External Chiller
Manuals and tools
Manufacturer Catalogue Information about Heidelberg Speedmaster XL 75 Printing Machine:
The Peak Performance class.
Speedmaster XL 75.
With its modern design, the Speedmaster XL 75 is tailored towards ergonomic operation and your requirements. The Speedmaster XL 75 offers you maximum flexibility thanks to extensive configuration options for the most demanding requirements in commercial, label, and packaging printing.
Speedmaster XL 75 – simply successful.
This future-oriented press in 50 × 70 format delivers high efficiency, productivity, and ease of operation.
With Push to Stop, the efficiency of print production (OEE) can be raised to a level that has been difficult to achieve in the past. The new Intellistart 3 assistance system revolutionizes your job changes with comprehensive, time-optimized automation. Push to Stop and the implementation of artificial intelligence offer you a unique user experience (UX): autonomous and navigated printing across the entire printing process. The new Intelliline can be used to visualize the respective machine states. Machine operation is now easier than ever – the new Heidelberg User Experience on the 2020 generation of the Speedmaster will inspire you.
The result is a machine that adapts to changing market requirements. Top quality with maximum availability – you can rely on that.
At a glance
Improvement of the OEE through reduction of process-dependent and operator-dependent downtimes – operator-independent performance through intelligent automation.
0 minutes additional makeready time due to fully automated air settings when changing substrates using characteristic profiles.
1,500 more sheets per hour through an increase in speed to 16,500 sheets per hour with straight presses.
0 effort thanks to Auto Protect. Fully automatic application of Saphira roller protection liquid – in the Intellistart process.
Suitable for the following segments
The Speedmaster XL 75 is the perfect press for the following segments, depending on the customer-specific configurations:
Commercial printing
Packaging printing
Label printing
