HNK NT-14/16FD CNC Vertical Lathe Boring Mill

Contact us for price

Description

HNK NT-14/16FD CNC Vertical Lathe Boring Mill
SPECIFICATIONS:
Table Diameter: 55.11″
Maximum Swing: 63″
Maximum Turning Diameter: 63″
Maximum Turning Height 35.43
Ram Horiz. Travel, X-Axis Travel: 63″
Ram Stroke, Z-Axis: 35.43″
Ram Cross Section: 8.66″ x 8.66″
Table Speeds, 2-Ranges: .9-360 RPM
Table Motor: 50 HP / 60 HP
Machine Footprint: 192″ x 153″
Machine Height: 185″
Machine Weight: 68,300 lbs.
Machine Electrics: 220/3/60

EQUIPPED WITH:

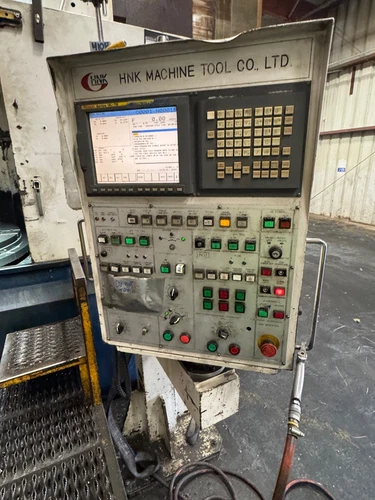

Fanuc 18T CNC Control
(2) Vertical Rams
(2) 12 Position Automatic Tool Changer
Full Chip & Coolant Guards, Chip Conveyor
50/60 HP Main Motor
