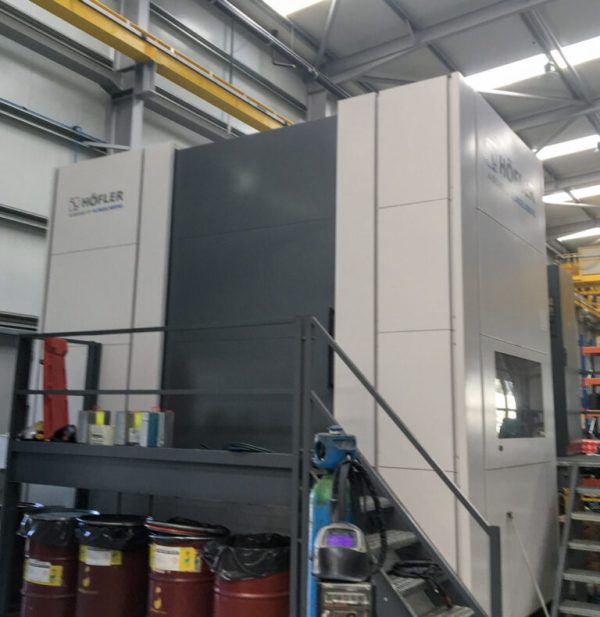

HÖFLER MEGA 1500 CNC Gear Grinding Machine – Year 2000
Manufacturer: HÖFLER
Model: MEGA 1500
New in 2000
CNC Controls: Siemens 840C
Max. external diameter: 1.500 mm
Grinding lenght/Max. gear width (spur gears): 980 mm
Module: 1.5 – 25
Base diameter/Root circle diameter: min 80 mm
Helice angle: 35º
Grinding wheel power: 20 kW
Profile corrections: max. 0.5 mm
Lead corrections: max 1 mm
Table diameter: 1000 mm
Max. weight: 6000 Kg
Tailstock height: 1250 mm
Axial slide travel (z-axis): 1000 mm
Dimensions: 7760 x 8360 x 4500 mm
Weight: 42000 Kg
Gear measurement

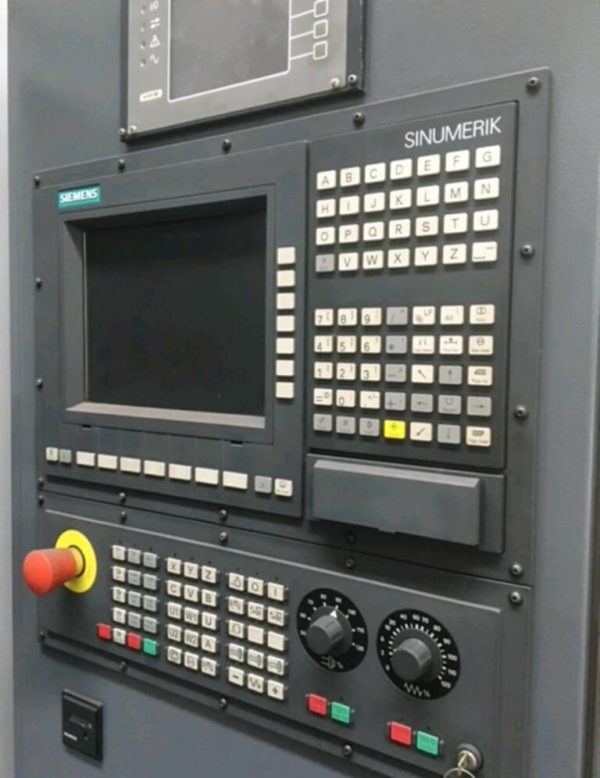

CNC controller SIEMENS 840C
