Hovenco MHAP125x3200 – Year 2013

Contact us for price

Categories: ,

Description

Hovenco MHAP125x3200 – Year 2013

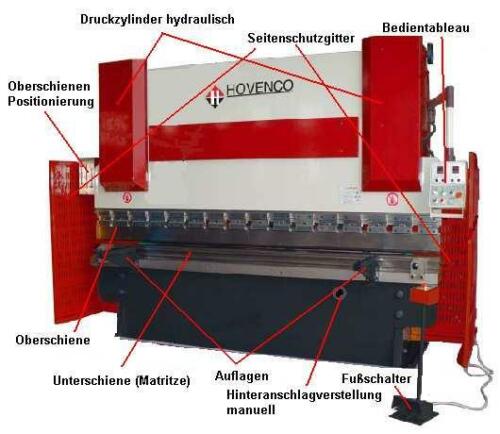

Hydraulic Bending Press 125 Ton

Type MHAP125x3200
Bending pressure max. kN 1250
Passage height max. mm 415
Projection mm 320
Working width mm 3200
Column passage width mm 2650
Stroke max mm 120
Stroke adjustment range max mm 100
Bending speed mm/s 7.5
Fast forward + rewind mm/s 45
Working height mm 800
Main motor kW 7.5 / 400V
Depth stop motor kW 0.55 / 400V
Adjustment range stop mm 20-800
Hydraulic pump ltr/min – bar 16 – 350
Dimensions LxHxD approx. mm 3300x2690x1800
Weight approx. kg 8000
Year of construction 2013
Machine can be inspected in our company

massive, heavy welded steel construction;
extremely smooth running due to heavy, large columns;
Rear with protective grille doors and
limit switches; Side protection grille with screw clamp;
light barrier for pressure pad protection;
swiveling control panel; two-handed
Control switch unit with approx. 3mtr. cable connection;
motorized backgauge with handwheel for fine adjustment;
Integrated oil tank with
level indicator;
Machine according to EU directives CE compliant.
Scope of delivery Manual control DNC-69;
two support arms;
Deer foot press rail, segmented into 800mm elements;
Matrix rail with several
rear sights; Cylinder stroke depth adjustment, motorized on the control panel and manually, adjustable with handwheel (digital display);
Backgauge, motorized
on the control panel and can be moved manually with the hand wheel (digital display);
adjustable working pressure;
Large dimensioned torsion shaft for parallelism
press rail to die; Operation manual.
